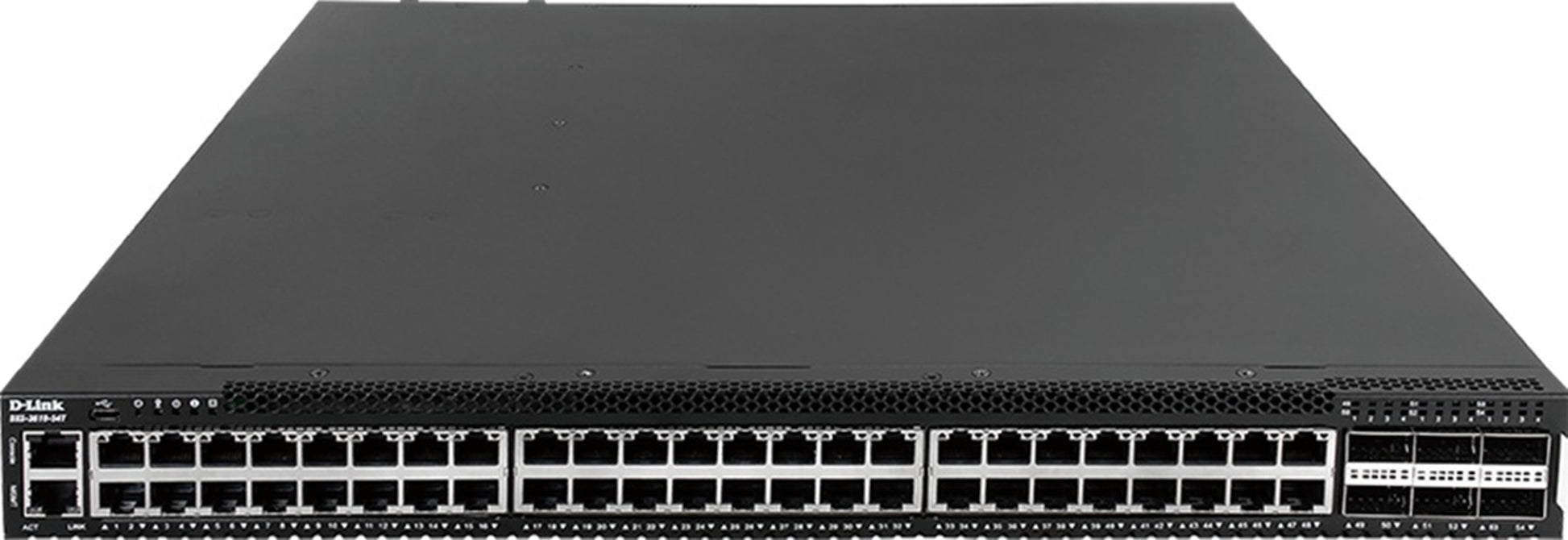

D-Link 54-Port 10 Gigabit Layer 3 Stackable Managed Switch with 48 10GBASE-T Ports and 6 40/100Gb QSFP+/QSFP28 Ports DXS-3610-54T

The D-Link DXS-3610-54T is a high-performance 54-Port Layer 3 Stackable Managed Switch designed for enterprise and data center networks. It features 48 x 10GBASE-T ports and 6 x 40/100GbE QSFP+/QSFP28 uplink ports, providing flexible, high-speed connectivity. With advanced Layer 3 routing capabilities, robust security features, and scalable stacking support (up to 12 units), this switch delivers exceptional throughput and reliability for demanding network environments. Hot-swappable power supplies and fans ensure minimal downtime, while support for OpenFlow 1.3 enables SDN compatibility.

• High speed network infrastructure with multiple interfaces
• 48 x 10GBASE-T ports and 6 x 40/100Gb QSFP+/QSFP28 ports
• Stack up to 12 Switches (up to 1.2 Tbps stacking bandwidth)
• OpenFlow 1.3 compliance for SDN-enabled network compatibility
• Modular PSU (1+1) and fan (N+1) with load sharing capabilities
• Switch Resource Management (SRM) for flexible system resource manageability
• Switch locator LED and ID tag for maintenance convenience
• Upgradable licence for full L3 and MPLS applications

DESCRIPTION

The D-Link DXS-3610-54T is a high-performance 54-Port Layer 3 Stackable Managed Switch designed for enterprise and data center networks. It features 48 x 10GBASE-T ports and 6 x 40/100GbE QSFP+/QSFP28 uplink ports, providing flexible, high-speed connectivity. With advanced Layer 3 routing capabilities, robust security features, and scalable stacking support (up to 12 units), this switch delivers exceptional throughput and reliability for demanding network environments. Hot-swappable power supplies and fans ensure minimal downtime, while support for OpenFlow 1.3 enables SDN compatibility.

• High speed network infrastructure with multiple interfaces
• 48 x 10GBASE-T ports and 6 x 40/100Gb QSFP+/QSFP28 ports
• Stack up to 12 Switches (up to 1.2 Tbps stacking bandwidth)
• OpenFlow 1.3 compliance for SDN-enabled network compatibility
• Modular PSU (1+1) and fan (N+1) with load sharing capabilities
• Switch Resource Management (SRM) for flexible system resource manageability
• Switch locator LED and ID tag for maintenance convenience
• Upgradable licence for full L3 and MPLS applications

Switching that Stacks Above the Competition

• The DXS-3610 Layer 3 Stackable 10G/100G Managed Switches are compatible with SDN-enabled network architecture for deployment in high-performance data centre, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

High Availability

• The DXS-3610 Series boasts high-performance 10G Ethernet Switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

Hot-Swappable Redundancy

• The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

Robust and Versatile Stacking Capability

• Stack up to 12 DXS-3610 Switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centres in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.

SPECIFICATIONS

• 802.1X Access Control: Yes
• Guest VLAN: Yes
• IP Interfaces: Yes
• Layer 3 Switching: Yes
• Redundant PSU: Yes
• Routing Table Size:32K
• Stacking:Physical and Virtual
• Stacking Capacity: Physical (12), Virtual (32)
• Number of Ports: 48 - 52
• PoE Type Required: None
• Type of Port Required: 10 Gigabit Copper|40 Gigabit QSFP+|100 Gigabit QSFP28
• Redundant Power Supply Option :Yes
• Stacking Bandwidth: 1200 Gbps
• Switch Type: Layer 3+ IP Routing
• Switch Series:DXS-3600 Series
• 10 Gig ports: Yes
• 10GBase-T ports: 48
• Layer: Layer 3
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size) :441 x 487 x 44 mm
• Energy Saving Technology: EEE Compliant|D-Link Green|RoHS 6 Compliant
• Fans: 5
• IGMP Snooping: Yes
• Jumbo Frame:9416 bytes
• Link Aggregation: Yes
• QoS: Yes
• 19" Rack Mountable: Yes
• Warranty:Limited Lifetime
• SNMP: Yes
• Spanning Tree Protocol:Yes
• Switching Capacity:2.16 Tbps
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes
