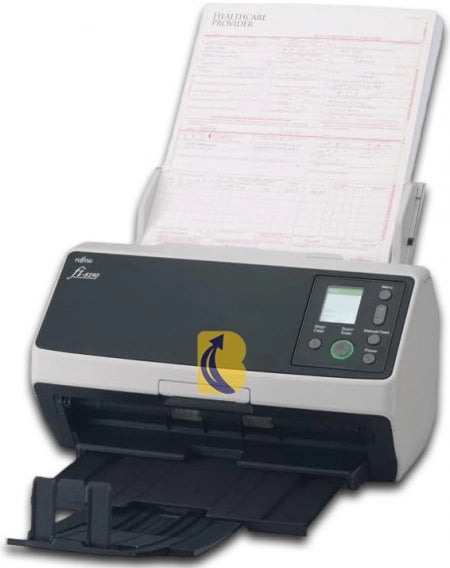

Fujitsu FI-8190 A4 Duplex Document Scanner 90ppm

The fi-8190 provides unmatched performance and market-leading document imaging capabilities. Compact and reliable, the scanner achieves scan speeds of 90 ppm/180 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 13,000 sheets a day.

• ADF (Automatic Document Feeder) / Manual Feed, Duplex
• Scanning Speed:
• Simplex: 90 ppm (200/300 dpi)
• Duplex: 180 ipm (200/300 dpi)
• Image Sensor Type: CIS x 2 (front x 1, back x 1)
• Light Source: RGB LED x 2 (front x 1, back x 1)
• Optical Resolution: 600 dpi

DESCRIPTION

The fi-8190 provides unmatched performance and market-leading document imaging capabilities. Compact and reliable, the scanner achieves scan speeds of 90 ppm/180 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 13,000 sheets a day.

• Scans big volumes with “Automatic Separation Control”
• "Paper Protection" function using Image Monitoring technology and sound technology
• Optimized high-quality image data with "PFU Clear Image Capture"
• Scans variety of documents including passports and booklets
• Color LCD Panel for easy operation
• PaperStream IP and PaperStream Capture providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
• PaperStream ClickScan for ad-hoc use

Accelerate your Digital Transformation Journey

Take on the toughest front-office jobs with this elite scanner. The fi-8190 document scanner employs innovative feeding and Clear Image Capture (CIC) technology to deliver efficiency and reliability.

Image Quality Clear Image Capture (CIC) technology resets the benchmark for high quality image capture, by combining the reliability and flexibility of Contact Imaging Sensor (CIS) hardware, with an exceptional image processor. CIC technology delivers precise, crisp images, and high OCR accuracy rates while also removing unwanted watermarks and artifacts.	Paper Feeding Evolved paper handling with a large 100-page hopper, an all-wheel drive mechanism, and fast 140 images captured per minute, make the fi-8190 one of the easiest and most efficient scanners to operate. The patented Automatic Separation Control uses state of the art technology to sense paper weights and adjusts to consistently separate documents and provide the perfect feed, ensuring documents are safely captured.	Reliability The fi-8190 is built to last and powers up every time you need it regardless of job size. Strong urethane rollers, heavy duty motors, a sturdy frame, and durable consumables combine for a long-lasting scanner that will let your organization capture the volumes of paper from seasonal peaks and heavy backlogs. Backed by our US-based, legendary solutions architects and support teams.

Specifications

Product Name		fi-8190
Scanner Type		ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3)	Simplex	90 ppm (200/300 dpi)
	Duplex	180 ipm (200/300 dpi)
Image Sensor Type		CIS x 2 (front x 1, back x 1)
Light Source		RGB LED x 2 (front x 1, back x 1)
Optical Resolution		600 dpi
Output Resolution*4 (Color / Grayscale / Monochrome)		50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format		Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors		White / Black (selectable)
Document Size	Maximum*6	215.9 x 355.6 mm (8.5 x 14 in.)
	Minimum	48 x 50 mm (1.9 x 2 in.)
	Long Page Scanning*7	6,096 mm (240 in.)
Paper Weight (Thickness)	Paper	20 to 465 g/m² (5.3 to 124 lb)*8
	Booklet	Less than 7 mm (0.276 in.)*9
	Plastic Card	1.4 mm (0.055 in.) or less*10
ADF Capacity*11*12		100 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume*13		13,000 sheets
Multifeed Detection		Overlap detection (Ultrasonic sensor), Length detection
Paper Protection		Image monitoring, Sound detection (iSOP)*14
Interface	USB	USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
	Ethernet	10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements		AC 100V - 240V 50/60 Hz
Power Consumption	Operating Mode	30 W or less / 17 W (Eco mode)
	Sleep Mode	LAN: 2.0 W or less USB: 1.4 W or less
	Auto Standby (Off) Mode	0.2 W or less
Operating Environment	Temperature	5 to 35 °C (41 to 95 °F)
	Relative Humidity	15 to 80% (Non-condensing)
Environmental Compliance		ENERGY STAR®, RoHS
Dimensions (W x D x H)*15		300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight		4 kg (8.8 lb)
Supported Operating System		Windows® 11*16, Windows® 10*16, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS*17, Linux (Ubuntu)*17
Software / Drivers		PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*18, Image Scanner Driver for macOS (ICA)*18*19, Image Scanner Driver for Linux (SANE)*18*19, PaperStream Capture, PaperStream ClickScan*19, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*19, Scanner Central Admin Server
Image Processing Functions		Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
