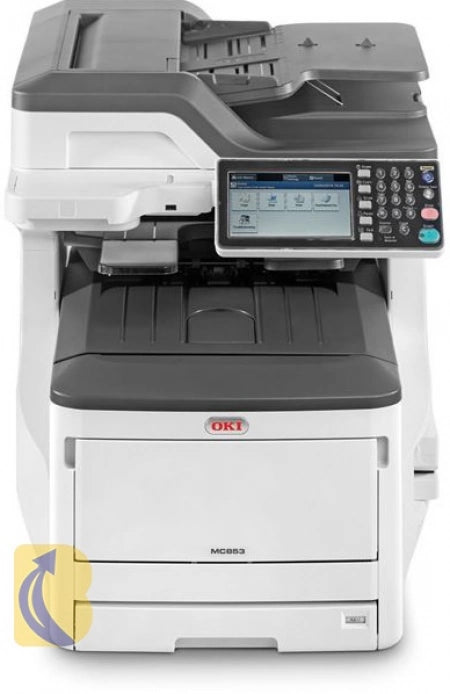

OKI A3 MC853DN Colour Laser MFC 3 Year onsite warranty

OKI A3 MC853dn A compact, powerful A3 colour multifunction printer offering excellent print quality and copy functionality, the MC853 is ideal for small workgroups. Easy to use with a customisable interface, it combines low total cost of ownership with the functionality of higher-priced devices.

• 3 Years Manufacturer Warranty
• A3 & A4 Colour Laser
• Print Copy Scan Fax
• 23ppm Mono/Colour
• 1200 x 600dpi ProQ2400
• Auto Duplex Print Scan
• USB & Network Connectivity (Optional Wireless)
• Tray - 300 Sheet Capacity
• 7" Colour LCD Touch Screen
• Includes 1,500 Staples for built-in Stapler
• Google Cloud & Airprint Compatible
• PCL 5/6 Postscript
• Windows & Mac Compatible
• (HxWxD) 700 x 563 x 600mm, 64kg
• 3 Years Warranty (requires product registration with OKI)

Print

Print Speed	A4(Landscape) 23 ppm color, 23 ppm mono A3 13 ppm color, 13 ppm mono
First Print Out Time	Color: Approx. 14.0 seconds Mono: Approx. 14.0 seconds
Printing Resolution	600 x 600 dpi 600 x 1200 dpi (4 levels) 600 x 600 dpi Physical dot pitch: 600 dpi
Interface	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Protocol	TCP/IP
Printer Language	PostScript 3 emulation, PDF v1.7 emulation, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, IBM ProPrinter emulation, Epson FX Emulation
Supported OS (Click here for latest OS)	Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux
Memory (Std./Max.)	1,280MB/1,280MB
Hard Disk Drive	250 GB
Font	PostScript emulation 80 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard, Custom Size: Width 64-297 mm x Length 90-1321 mm
Paper Weight	Tray 1 : 64 - 220 gsm (Optional)Additional Tray : 64 - 176 gsm Multi-purpose tray : 64 - 256 gsm
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Output Capacity	Face Down - 1st bin : Max. 100 sheets Face Down - 2nd bin : Max. 250 sheets Face Up : Max. 100 sheets

Copy

Type	Floor / Desktop
Scanning Method	Color CIS
Printing Method	Digital 4 LED Full-color Electrophotographic Printing Method
Copy Density Adjustment	7 levels (Manual)
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Scanning Resolution	Up to 600 x 600 dpi
Writing Resolution	Up to 600 x 1200 dpi
Acceptable Original	Sheet, Book
Original Size	Flatbed: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio; ADF: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio
Copy Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard
Copy Scaling	25 – 400 %
Maximum Copies	999 sheets
Copy Speed	A4 23 cpm color, 23 cpm mono
First Copy Out Time	Color: Approx. 14.5 seconds, Mono: Approx. 14.5 seconds
Warm-up Time	Approx. 32.0 seconds from power-on
Power Source	Single phase 220 - 240 VAC ±0%, 50/60 Hz ±2%
Power Consumption	Operating: Max. 1,400W / Ave. 850W Idle: 120W Power Save: 30.0W Deep Sleep: 3.0W Auto-Off: 0.15W
Memory (Std./Max.)	1,280MB/1,280MB
Safety& Environment Regulation	Blue Angel, EMC-Directive, CE Mark, GS Mark
Noise Level	Operating :Approx. 54 dBA Idle: < 37 dBA
Operating Environment	Operating: 10 - 32 °C, 20 - 80 %RH Storage: -10 - 43 °C, 10 - 90 %RH No condensation
Dimensions(WxDxH)	563 x 600 x 700 mm
Weight(includes supplies)	Approx. 64.0 kg
Duty Cycle	Recommended: 8,000 pages/month Maximum: 60,000 pages/month
In the Box	Others, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM, Telephone Cable, Ferrite Core

Scan

Scan Resolution	Max. 600 x 600 dpi
Scan Speed	Max. 50 ipm Color, 50 ipm mono
Interfaces	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional)Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Supported Protocol	SMB, FTP(S), TWAIN, WIA2.0
Output Format	Secure PDF, High compression PDF, JPEG, TIFF, XPS
Driver	TWAIN, WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

Fax

Applicable Line	PSTN, PBX
Interface	RJ-11 x 2 (Line, Tel)
Transmission Resolution	Normal: 8 dots/mm x 3.85 lines/mm Fine/Photo: 8 dots/mm x 7.7 lines/mm Extra Fine: 8 dots/mm x 15.4 lines/mm
Communication Speed	Super G3: 33.6kbps
Encoding Method	MH, MR, MMR, JBIG
Communication Mode	ITU-T G3, Super G3
Transmission Original Size	Max. A3, Length 420 mm
Paper Size	Max. A3, Min. A5
Transmission Time	Approx. 2.0 sec. / page
Memory	Max. 8192 pages (256MB)
Other Function	Speed Dial(1000 locations), Broadcast(32 group, 100 locations/group), Duplex scanning, F-Code Confidential FAX, Delayed Tx, LDAP, PC Fax, PDF Store/Distribution, 1 touch Dial(40 locations)

Document feeder

Type	Reverse Automatic Document Feeder (RADF)
Original Size	A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, Custom Size: Width 105-297 mm x Length 148-431 mm
Original Weight	60 - 120 gsm
Loading Capacity	Max. 100 sheets
Original Exchange Speed	Simplex 50 ppm color, 50 ppm mono Duplex 17 ppm color, 17 ppm mono
