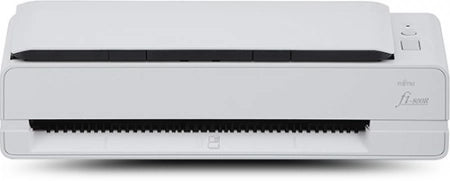

Ricoh FI-800R A4 Duplex Colour Scanner 40ppm

The fi-800R achieves scanning speeds of 40 ppm/80 ipm with ADF and 3.5 seconds per sheet with Manual Feed (A4 portrait, color, 200/300 dpi), and is capable of scanning up to as many as 4,500 sheets a day.

• ADF (Automatic Document Feeder) / Manual Feed, Duplex
• Simplex: 40 ppm (200/300 dpi)
• Duplex: 80 ipm (200/300 dpi)
• 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
• Manual Feed: 3.5 seconds (200/300 dpi)
• Image Sensor Type: CIS x 2 (front x 1, back x 1)
• Light Source: RGB LED (front x 1, back x 1)

DESCRIPTION

The fi-800R achieves scanning speeds of 40 ppm/80 ipm with ADF and 3.5 seconds per sheet with Manual Feed (A4 portrait, color, 200/300 dpi), and is capable of scanning up to as many as 4,500 sheets a day.

With its compact design, the scanner is ideal to use when space is limited, enabling better customer onboarding in spaces like reception desks and service counters. Its unique technologies assist both booklet scanning and continuous ADF document scanning with stable feeding, and reduce operator workload allowing users to provide better customer service.

• Return Scan for passports and ID cards scanning
• U-turn Scan with Automatic Stacking Technology for comfortable continuous scanning
• Automatic Skew Correction and Active Separation structure to ensure reliable feeding
• Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
• PaperStream Capture Pro available as an option

The Right Scanner for Tight Spaces

Return Scan Return Scan takes ID cards and passports in the front slot and returns them there when done. With its ability to handle paper from the thinnest receipts to the thickest passports, you'll only need one scanner up front to do all your onboarding and general office scanning. No carrier sheet required.	U-Turn Scan U-turn Scan saves space by returning scanned paper to the input tray. The fi -800R switches seamlessly from U-turn Scan to Return Scan based on where documents are inserted. It’s easy to continually scan items from either input.	Handles Every Document Mixed batches are no problem, even when they’re not carefully prepped. Scan passports, IDs, and more with one scanner. It captures both sides of customer onboarding forms, invoices, and small mixed batches at up to 40 pages per minute (80 images per minute).

Scanning is Simple

PaperStream ClickScan software is designed to be simple for drastically reduced waiting times. Place paper in the scanner, push the scan button, and send to email, print, or folder - simple as one, two, three. Start using the scanner right away with no need for administrators to preset scan settings or output destinations.

Big Features in a Small Package

Automatic Skew Correction The fi-800R detects unorganized documents that have been roughly set and straightens each document before scanning, so that papers are fed neatly. This functionality minimizes errors like paper jams or images with missing edges that may occur due to being skewed.	Smart Facial Recognition The Front Side Detection recognizes faces on ID cards or passports. Even if documents are scanned face down, PaperStream IP automatically rearranges images so that scanned pages are organized in the correct order.	Stops Multi-Feeds and Jams Active Separation adjusts the optimal pressure applied to scanned documents, according to paper thickness and condition. This ensures stable paper feeding with precise paper separation and prevents multi-feed errors and skewed documents.	Get Data Directly from the MRZ Information contained in the Machine Readable Zone of a passport, like number, name and nationality, can be extracted by PaperStream Capture to efficiently manage customer information.



SPECIFICATIONS





Scanning Speed
40 ppm / 80 ipm

Resolution - Optical
600 DPI

Simplex / Duplex
Duplex

ADF Capacity
20 sheets



Scanner Type

ADF (Automatic Document Feeder) / Manual Feed, Duplex



Interface

USB 3.2 Gen1x1 / USB 2.0 / USB 1.1

Power Requirements

AC 100 to 240 V ±10 %

Power Consumption

Operating Mode 19 W or less
Sleep Mode 1.7 W or less
Auto Standby (Off) Mode 0.15 W or less

Operating Environment Temperature

5 to 35 °C (41 to 95 °F)

Relative Humidity

20 to 80% (Non-condensing)

Environmental Compliance

ENERGY STAR®, RoHS

Dimensions*9 (W x D x H)

296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)

Weight

2.0 kg (4.4 lb)

Supported Operating System

Windows® 11*10, Windows® 10*10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS, Linux (Ubuntu)

Software / Drivers

PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*11, Image Scanner Driver for macOS (ICA)*11*12 , Image Scanner Driver for Linux (SANE)*11*12, PaperStream Capture, PaperStream ClickScan*12, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*12, Scanner Central Admin Server

Image Processing Functions

Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal
