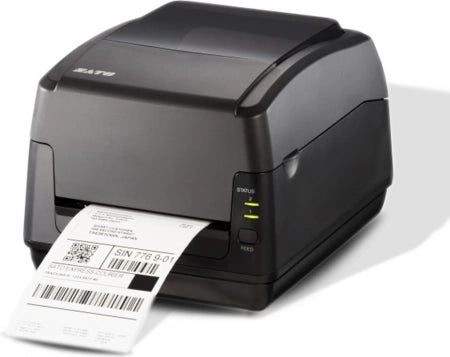

SATO WS4 Thermal Label Printer 100 x 150MM 4-Inch 203dpi WS408TT Thermal Transfer SATO An Australian Company (Zebra GX420 GX421 Equivalent)

The new Sato WS408 TT desktop printer lets you print various labels, tags, receipts and wristbands and is packed with features and yet super affordable with great reliability and quality. It has USB, RS232 and Ethernet interfaces as standard which makes it even more versatile!

• Sato WS408TT Compact/Desktop Label Printer
• Thermal Transfer
• Continuous, Tear-off, Dispenser, Cutter
• Print Resolution: 203 dpi (8 dots/mm)
• Max. Print Speed: 6ips (152.4mm/sec)
• Max. Print Width: 104mm (4.09”)
• Max. Print Length: 999mm (39.33”)
• CPU: 32Bit RISC CPU(180MHz)
• Printer Memory: 16MB ROM, 32MB RAM
• Width: 220.6mm (8.69”)
• Depth: 278.5mm (10.96”)
• Height: 187.5mm (7.38”)
• Weight: 2.48kg (5.5lbs)

100 x 150MM Thermal Label Printer

World standard 4-inch desktop printer built for multiple applications

The WS4 printer series is designed to be easy-to-use with flexible media capability and enhanced connectivity.

It is highly versatile and suitable for desktop label applications across various regional markets and vertical segments to maximise performance and return on investment.



PRODUCT HIGHLIGHTS

3-color status LED

• WS4 has 3 color LED and 3 types of blink patterns to help operator easily identify printer status.

Easy maintenance

• With lesser internal parts and clear label path, user can load ribbons and labels easily.
• User can also replace print head and platen roller effortlessly without any tools for the direct thermal (DT) model and only minimal tools for the thermal transfer (TT) model.

Easy firmware download

• With the availability of USB host interface, firmware updates are simple and fuss-free.

Flexible label and ribbon support

• WS4 supports both 1” and 1.5” label core and 1” and 0.5” ribbon core.
• I-mark sensor is also horizontally adjustable

Large ribbon capacity of 300m

• The TT model can hold a maximum of 300m ribbon thus reducing user's total cost of ownership and helps user save time on loading ribbons

Enhanced connectivity

• WS4 provides numerous connectivity options including serial port (RS232C), LAN and USB.
• It also provides options to support Bluetooth for convenient wireless interface via smart devices.

 OPTIONS

• Cutter, Bluetooth, Dispenser, External Unwinder, Real-Time Clock

 APPLICATIONS

• Manufacturing: Parts & products labels
• Retail: Distribution labels, price tags, shelf labels, markdown labels
• Healthcare: GS1 labels, FDA labels, prescription labels, wristbands, specimen labels
• Food Service & Distribution: Product labels, ingredient labels, expiry labels,
• Transport & Logistics: Shipping labels, pallet labels, bin labels, rack labels
• Automotive: Parts & products labels
• Government: Visitor labels, asset management labels, document management labels
• Hospitality: Food rotation labels, asset management labels
• Education & Libraries: Asset management labels
• Aerospace: Boarding passes, luggage tags, parts & products labels,
• Wholesale: Shipping labels, pallet labels, putaway labels
• Travel & Leisure: Tickets, wristbands
• Law Enforcement: Asset management labels for vehicle, weapons, documents
• Banking & Finance: Document management labels, visitor labels
• Legal: Document management labels
• Blood & Pathology: Specimen labels

FEATURES

• User-Friendly Operation and Serviceability
• Printing Resolution of 203 dpi
• Print Speed of 152mm per second
• 3 color LED and 3 types of blink patterns to help identify printer status.
• Thermal Transfer Printing (Use Ribbons)
• The WS4 supports both 1” and 1.5” label cores and 1” and 0.5” ribbon core.
• Holds a maximum of 300 meter long ribbons
• Standard interfaces USB + Ethernet + Serial / RS232
• Emulations (SZPL®, SEPL®, SDPL®, SIPL®)
• 12 Month Warranty

MEDIA

• Type: Roll or Fan-fold Die Cut Labels, Plain Paper Face Stock, Synthetics and Continuous Stock, Ticket
• Thickness: 0.002” – 0.007” (0.06 mm – 0.19 mm)
• Media Width: 0.88" (22.4 mm) to 4.53" (115.0 mm)
• Maximum Print Width: 104mm (4.09")
• Maximum Print Length: 999mm (39.33")
• Wind Direction: Face-out / Face-in, No Setting Change Required
• Sensor Type: Adjustable I-Mark Sensor (Reflective), Label Gap Sensor (Transmissive), Label Taken Sensor (Dispenser Option)

 MEDIA LENGTH

• Continuous
• TT/DT: 0.31" (10.0 mm) to 39.21" (996.0 mm)
• Tear-Off
• TT/DT: 0.31" (25.4 mm) to 39.21" (996.0 mm)
• DT Mode on TT Model: 1.18" (30.0 mm) to 39.21" (996.0 mm)
• Cutter
• TT/DT: 0.76" (25.4 mm) to 39.09" (993.0 mm)
• DT Mode on TT Model: 1.37" (35.0 mm) to 39.09" (993.0 mm)
• Dispenser
• TT/DT: 0.92" (25.4 mm) to 5.92" (150.4 mm)
• DT Mode on TT Model: 1.37" (35.0 mm) to 5.92" (150.4 mm

 RIBBON (THERMAL TRANSFER MODEL)

• Length Maximum:  984.2 ft (300m) Center Justified
• Core Diameter: 0.5" (12.7 mm) for 100m (328.0 ft) / 1.0" (25.4 mm) for 300m (984.2 ft)
