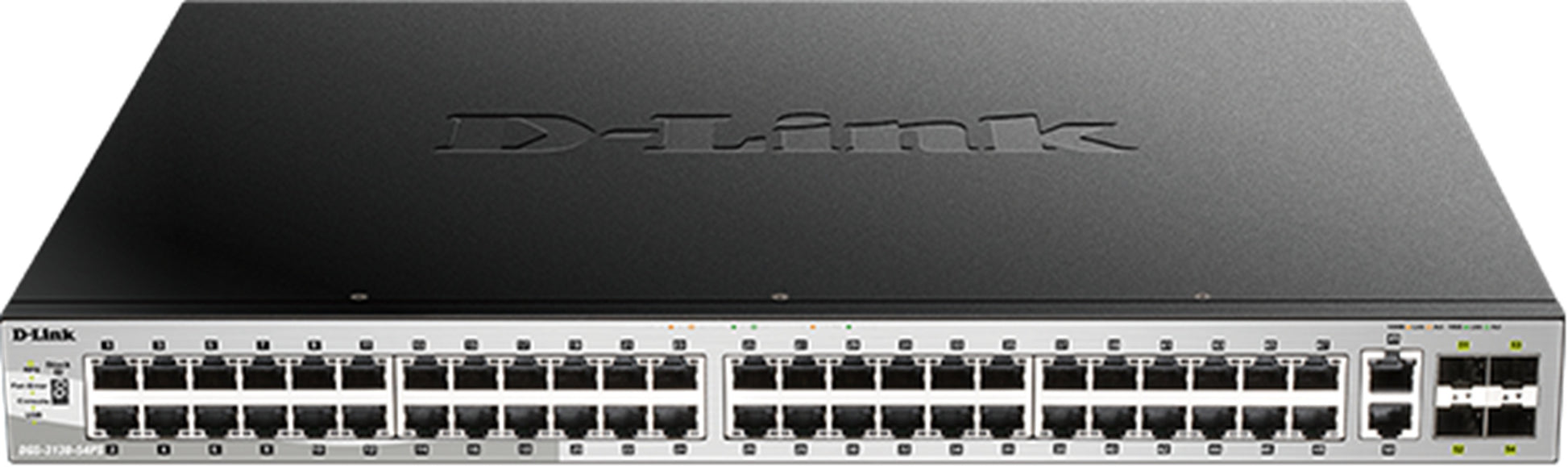

54-Port Stackable Gigabit Layer 3+ Switch with 6 10GbE ports DGS-3130-54T

​The D-Link DGS-3130-54TS is a high-performance 54-port Lite Layer 3 stackable managed Gigabit switch designed to enhance network scalability and reliability. It features 48 10/100/1000BASE-T ports for versatile device connectivity, along with 2 10GBASE-T ports and 4 10G SFP+ ports that provide high-speed uplink and stacking capabilities, accommodating growing bandwidth demands. With a robust switching capacity of 216 Gbps, the DGS-3130-54TS ensures efficient data handling across the network. Advanced Layer 2 and Layer 3 features, including static routing, RIP/RIPng, and OSPFv2/v3, facilitate optimized network traffic management. The switch supports physical stacking of up to 9 units, allowing for flexible network expansion. Built-in 6 kV surge protection on all Gigabit Ethernet ports safeguards against unexpected electrical surges, enhancing network reliability. Additionally, the DGS-3130-54TS supports an external redundant power supply, ensuring maximum uptime for enterprise and metro Ethernet access networks.

• 48 1000Base-T ports with 2 10GBASE-T and 4 10G SFP+ ports
• Six 10Gb ports: 2 copper and 4 SFP+ for stacking and uplinks
• 216 Gbps switching capacity
• Stackable up to 9 switches with 80Gb stacking bandwidth
• Layer 3 switch with essential Layer 3 features included
• 6 kV surge protection on all copper ports
• Comprehensive security features
• Redundant Power Supply support

Adaptable, Bottleneck-Free 10G Business Connectivity

• The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.
• With network bottlenecks on the rise, the DGS-3130 Series’ six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.

Power Even More Devices

• The DGS-3130-30PS model features Power over Ethernet, which compatible devices to be powered by the switch through a standard Ethernet cable. It supports the IEEEE 802.3at PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. The 370W PoE power budget, which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allow the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

Weather the Storm

• The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.

SPECIFICATIONS

• 802.1X Access Control: Yes
• Guest VLAN: Yes
• IP Interfaces :Yes
• Layer 3 Switching :Yes
• Redundant PSU: DPS-500
• Routing Table Size: 512
• Stacking:Physical and Virtual
• Stacking Capacity: Physical (9), Virtual (32)
• Number of Ports: 48 - 52
• PoE Type Required: None
• Type of Port Required: Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre
• Redundant Power Supply Option: Yes
• Stacking Bandwidth: 80 Gbps
• Switch Type: Layer 3 Lite
• Switch Series: DGS-3130 Series
• 10 Gig ports: Yes
• 10GBase-T ports: 2
• Layer: Layer 3
• SFP+ ports: 4
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size) :440 x 290 x 44 mm
• Energy Saving Technology: EEE Compliant|D-Link Green
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame:9K
• Link Aggregation: Yes
• QoS: Yes
• 19" Rack Mountable: Yes
• Warranty: Limited Lifetime
• SNMP :Yes
• Spanning Tree Protocol: Yes
• Switching Capacity: 216 Gbps
• 1000Base-T ports: 48 Ports
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI : Yes
