| PrinterType | Large Format Inkjet Printer | Printing Technology | Ink-Jet |
| Functions | Print Only | Connectivity | USB, Wi-Fi |
| Paper Size | A1 | Mono / Colour | Colour |
| Print Resolution | 2400x1200 dpi | Print Speed | 144 (D sized) prints per hour |
| Warranty | 2 Years | Warranty Type | Onsite |
DESCRIPTION
Introducing the TM-200 A printer that provides all the flexibility and functionality of more expensive printers. For small businesses, it’s reason to celebrate. Now there’s no reason why a small business can’t be as productive and as competitive as a larger one.

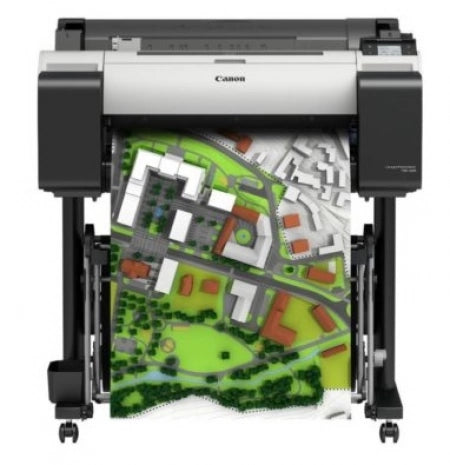

Canon’s imagePROGRAF TM-200 is purpose built for small businesses working in architecture, engineering and construction. With speed and efficiency, this large format printer produces long lasting posters, low to mid CAD drawings and GIS files.
Your most convenient solution for economical high definition large format print
Boost performance and enhance professionalism with your Canon imagePROGRAF TM 200. Purpose built for architects, engineers and construction businesses, the TM series employs new technologies to economically generate impressive posters, CAD and GIS files in large format. With a small footprint and quiet processing, its ideal for small, busy offices.
60% quieter for small, fast paced office environments
No need for distractions. With its new dampening solution, this quiet achiever will slot straight right into your busy office and get on with its work
Present long lasting sharp print with true colour
Create the most professional impression with CAD and GIS files reproduced in sharp detail and vivid colour, quickly and economically on plain paper
At a glance
SPECIFICATIONS
PRINT HEAD
PF-06
TECHNOLOGY
FINE (Photolithography Inkjet Nozzle Engineering)
PRINT RESOLUTION (MAX.)
2400 x 1200 dpi
LINE ACCURACY*
±0.1% or Less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
MINIMUM LINE WEIGHT**
0.02mm
NUMBER OF NOZZLES
Matte Black: 5,120 Nozzles
Other Colours: 2,560 Nozzles per Colour
DROPLET SIZE
Minimum 5 Picolitre per color
NOZZLE PITCH (HEAD RESOLUTION)
1200 dpi x two lines
PRINT HEAD SWATH
1.07”
INK TYPE
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
INK TANK
PFI-120 (130ml) / PFI- 320 (300ml)
INK SUPPLY METHOD
Tubing System with Sub-tanks
NOZZLE RECOVERY SYSTEM
Non-firing Nozzle Detection and Compensation
PRINTER CONTROLLER
L-COA PRO
PRINTER RAM
2GB
HARD DRIVE
N/A
MEDIA FEED
Roll Feed: One Roll, Uppper-loading, Front Output
MEDIA WIDTH
Roll Feed: 203.2–610mm (8”–24”)
Cut Sheet: 203.2–610mm (8”–24”)
PRINTABLE MARGINS
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print): Top: 0 mm, Bottom: 0 mm,
Side: 0 mm
MAXIMUM PRINT LENGTH (SINGLE PAGE)
Roll Feed: 18m (Varies according to the OS and application)
Cut Sheet: 1.6m
BORDERLESS PRINTING WIDTHS
[Recommended] 515mm(JIS B2),
594mm(ISO A1), 10”, 14”, 17”, 24”
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8”, 12”, 16”, 20”, 300mm, 500mm, 600mm
MEDIA CUTTER
Automatic horizontal cutting (Rotary cutter): standard
MEDIA THICKNESS
0.07–0.8mm
MEDIA INTERNAL DIAMETER SIZES
Internal diameter of roll core: 2”/3”
MAXIMUM ROLL OUTER DIAMETER
150 mm or less
PRINTING SOFTWARE UTILITIES
Accounting Manager, Apple AirPrint, Device Management Console, Direct Print & Share, Free Layout Tool, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimised Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox
OPERATING SYSTEM
Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server
PRINT LANGUAGE
Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG
INTERFACE
Standard (Built-in): Hi -Speed, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / AutoNegotiation, IEEE 802.3x
Full Duplex
Wireless LAN (IEEE 802.11 b/g /n)
Direct USB Thumb Drive Printing
ACOUSTIC NOISE
Acoustic Pressure: 44dB(A) (Plain paper, line drawing, standard mode) Stand by: 35dB(A) or less (Measured on ISO7779 standard)
Acoustic Power: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO7779 standard)
POWER SUPPLY
AC 100–240V (50–60 Hz)
POWER CONSUMPTION
Power consumption (using wired LAN): 69 W or less
At sleep mode (using wired LAN): 3.6 W or less At sleep mode (using all ports)
: 3.6 W or less
At the power off: 0.3 W or less
Default setting for the time to enter the Sleep mode
: 300sec
OPERATIONAL ENVIRONMENT
Temperature: 15–30°C
Relative Humidity: 10–80% RH (No Dew Condensation)
PRINTER DIMENSIONS (W X D X H) AND WEIGHT
Main Unit:
982 x 748 x 439 mm
Weight: 41 kg (including Roll Holder Set, excluding ink and print head)
Main Unit + Stand + Basket (SD-22):
982 x 887 x 1060 mm (Basket Opened: Position1)
982 x 757 x 1060 mm (Basket Closed)
Weight: 51 kg (including Roll Holder Set, excluding ink and print head)
Main Unit + Stand + Basket (SD-23):
982 x 887 x 1060 mm (Basket Opened: Position1)
982 x 757 x 1060 mm (Basket Closed)
Weight: 52 kg (including Roll Holder Set, excluding ink and print head)
PACKAGE DIMENSIONS (W X D X H) AND WEIGHT
Printer (Main unit with pallet):
1152 x 913 x 705 mm, Weight: 69kg
Stand + Basket (SD-22):
1155 x 824 x 268 mm, Weight: 17kg
Stand + Basket (SD-23):
1155 x 824 x 268 mm, Weight: 18kg
Printer (Main unit with stand and pallet) (SD-22):
1152 x 913 x 961 mm, Weight: 85kg
Printer (Main unit with stand and pallet) (SD-23):
1152 x 913 x 961 mm, Weight: 87kg
