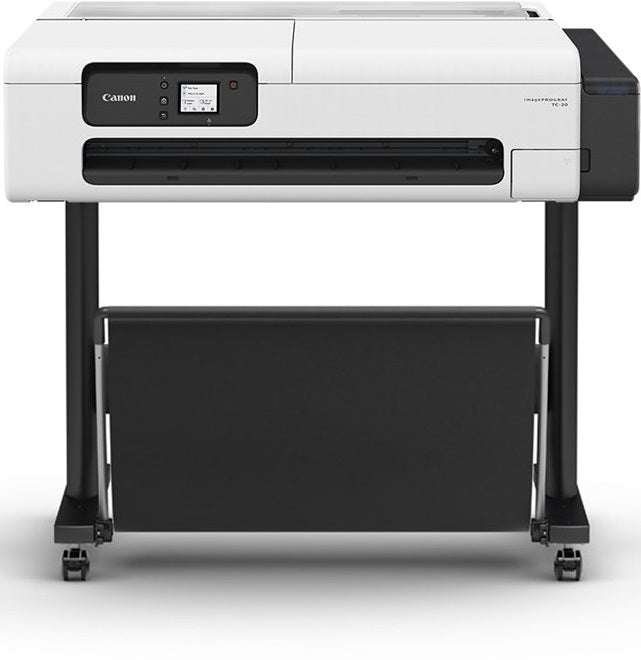

Canon imagePROGRAF TC-20 24

The Canon imagePROGRAF TC-20 is perfectly built for home/satellite office. With a small footprint, it can be placed on a desk or shelf. It also helps to manage all tasks with simplicity through its workflow software.

• *Freight charges apply
• Small footprint A1 Large Format Printer
• Printer type: Print only
• Supported paper size: Up to 24"
• Print colour: 4 colour
• Network compatibility: Yes
• Mobile Print: Yes
• Printing resolution: 2400 x 1200dpi
• Ink type: Pigment ink
• Printing Application: Technical & Poster
• Control Panel: 2.7" LCD panel
• Storage: None
• Ink size: 70ml each colours
• Dimensions (W x H x D): 968 x 525 x 245mm (ASF Closed)
• Standard Auto Sheet Feeder

Functions	Print	Suitable For	Technical & Poster
Mobile Print	Yes	Stand Included	Yes
Network Capability	Yes	Print Resolution	2,400 x 1,200 dpi
Control Panel	2.7" LCD panel	Ink size	70ml each colours





Note: *Freight charges apply

DESCRIPTION

imagePROGRAF TC-20

User-friendly wide format printer ideal for home use or satellite office. High-quality, high speed print resolution with quiet, and environmentally friendly technology.

Designed for home and satellite office usage

The Canon imagePROGRAF TC-20 is perfectly built for home/satellite office. With a small footprint, it can be placed on a desk or shelf. It also helps to manage all tasks with simplicity through its workflow software.

Space saving with compact body. Fits into smaller home and satellite offices

Easy paper replacement with shaft less roll holder.

Standard Auto Sheet Feeder allows continuous cut sheet print

With a high capacity cut sheet feeder, re-filling paper is less frequent. The Auto Sheet Feeder can load up to 50 A3 cut sheets, whilst the A4 feeder can load up to 100. The printer also includes an automatic and simple switch from roll paper to cut sheet paper.





MAIN SPECIFICATIONS

Print Head

• PF-08

Number of Nozzles

• Matte Black: 1,280 Nozzles
• Other Colours: 1,024 Nozzles per Colour

Ink Bottle

• Shipped with Printer: C, M, Y, BK (70ml each)
• Replacement: PFI-050 (70ml)

Ink Type

• Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Printer RAM

• 1GB

Media Feed

• Roll Feed: One Roll, Top Loading, Front Output

Media Width

• Roll Feed
• ISO: A3, A2, A2+, A1
• JIS: B2, B3
• ARCH: 18”, 24”
• Others: 17”
• Cut Sheet:
• ISO: A4, A3, B4
• DIN: C4
• JIS: B4
• ANSI: 8.5 x 11”, 8.5 x 14”, 11 x 17”
• ARCH: 9 x 12”
• Photo: 10 x 12”m 10 x 15”
• Others: User-defined size (Width: 210 mm–297 mm, Length: 203.2 mm -432 mm)

Media Cutter

• Automatic Horizontal Cutting (Rotary Cutter)

Media Thickness

• 0.08–0.28 mm

Media Core Sizes

• 2” Core Only

Maximum Roll Outer Diameter

• 110 mm or less

Media Output

• Optional Basket BU-06
• Optional Stand SD-24

Printing Software Utilities

• Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy, PIXMA Cloud Link, PosterArtist Web

Print Language

• Printer: SGRaster

Operating System

• 32-bit: Windows 7/8.1/10 64-bit: Windows
• 7/8.1/10/11, Windows Server 2008 R2, 2012, 2012
• R2, 2016, 2019, 2022 Mac: mac0S v10.14.6 - macOS v12.x

Interface

• Hi-Speed USB: Full Speed (12 Mbit/sec), High
• Speed (480 Mbit/sec), Bulk transfer
• Ethernet (Built in): IEEE802.3u (100BASE-TX)/
• IEEE802.3 (10BASE-T)
• Wireless LAN: IEEE 802.11 b/g /n

Power Supply

• AC 100–240V (50–60 Hz)

Power Consumption

• Maximum: TC-20: 28 W or less
• Standby: 2.4 W or Less (using all ports)
• Power Off: 0.3 W or less
• (Executive Order Compliant)

Operational Environment

• Temperature: 15°–30° C
• Relative Humidity: 10–80% (No Dew Condensation)

Printer Dimensions (W x D x H) and Weight

• TC-20: 968 x 545 x 245 mm (ASF Closed)

Weight: Approx. 32 kg

• TC-20 with Stand: 968 x 870 x 874 mm (Basket Opened)
• Weight: Approx. 40 kg

Package Dimensions (W x D x H) and Weight

• 1120 x 726 x 406, Weight: 43kg

Options

• Desktop Basket: BU-06
• Printer Stand: SD-24
