| Ink Type | Pigment | Size | 24 inch |
| Functions | Suitable For | Posters, Point of Sales | |
| Borderless Print | Yes | Stand Included | Yes |
| Wi-Fi | Yes | Print Resolution | 2,400 x 1,200 dpi |
| Warranty | 2 Years | Warranty Type | Manufacturer |
DESCRIPTION

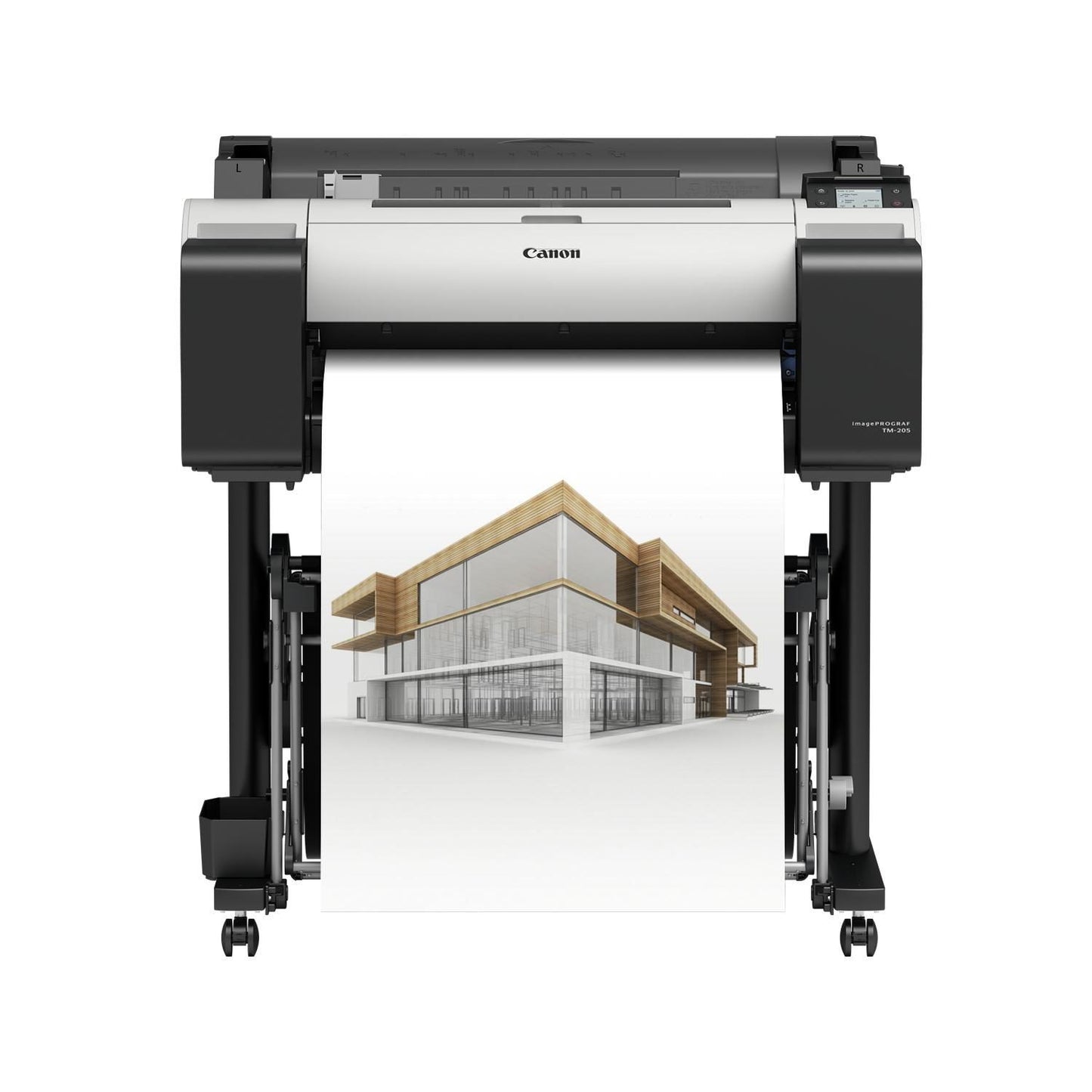

The Canon imagePROGRAF TM-205 is a large format printer that’s purpose designed for small to mid-sized firms working in the architectural, engineering and construction sectors. Quiet, efficient and with a small footprint, this economical printer will boost productivity.
As a mid-sized firm, you’re probably reaching the point where it’s no longer economical to outsource large format printing. Plus, you want to control the quality of your print to ensure it meets your high expectations. This compact and quiet wide format printer generates posters, GIS and CAD files in large format with true colour thanks to long lasting LUCIA pigment inks and high definition.
The user friendly imagePROGRAF TM-205 is a junior member of the imagePROGRAF family, which offers incredible value for money for small to mid-level CAD businesses. This compact wide format printer is quick to print professional quality posters, CAD drawings, and GIS files in-house , delivering productivity, professionalism and high output with a small footprint.
Expand your business, impress your clients with this large format printer
Canon’s imagePROGRAF TM-205 is an affordable printer that’s purpose designed for your small to mid-sized building and construction business. Compact and affordable, with your new Canon you can copy, scan and print posters, GIS and CAD files in large format, high definition long lasting colour, quickly, easily, and economically.
So quiet, you’ll forget its working
Don’t be fooled. Your imagePROGRAF may be quiet but it’s still working hard. With smart dampening technology, its 60% quieter than the competition.
High quality colour at a speed you won’t believe
With pigment-based LUCIA TD ink in five colours, your imagePROGRAF boosts productivity with sharp, vibrant graphics printed at incredible speed.
WHAT'S IN THE BOX
- imagePROGRAF TM-205
- Catch Basket
- Stand
- 2"/3" Core Media Spool (Adapters Included)
- AC Power Cable
- Tools and Screws
- Print Head PF-06
- Maintenance Cartridge (Installed)
- 5 Ink Tanks (130 ml: MBK, 90 ml: C/M/Y/BK)
- Sample Heavyweight Coated Paper (A2/2 Sheets)
- Ethernet Card (built-in)
- USB 2.0 High-speed Interface
- USB Connection Sheet
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- User Registration Card
- Media Guide
MAIN SPECIFICATIONS
PRINT HEAD
PF-06
TECHNOLOGY
FINE (Photolithography Inkjet Nozzle Engineering)
PRINT RESOLUTION (MAX.)
2400 x 1200 dpi
LINE ACCURACY*
±0.1% or Less
User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
MINIMUM LINE WEIGHT**
0.02mm
NUMBER OF NOZZLES
Matte Black: 5,120 Nozzles
Other Colours: 2,560 Nozzles per Colour
DROPLET SIZE
Minimum 5 Picolitre per color
NOZZLE PITCH (HEAD RESOLUTION)
1200 dpi x two lines
PRINT HEAD SWATH
1.07”
INK TYPE
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
INK TANK
PFI-120 (130ml) / PFI- 320 (300ml)
INK SUPPLY METHOD
Tubing System with Sub-tanks
NOZZLE RECOVERY SYSTEM
Non-firing Nozzle Detection and Compensation
PRINTER CONTROLLER
L-COA PRO
PRINTER RAM
128GB (Physical memory 2GB)
HARD DRIVE
500GB
MEDIA FEED
Roll Feed: One Roll, Uppper-loading, Front Output
MEDIA WIDTH
Roll Feed: 203.2–610mm (8”–24”)
Cut Sheet: 203.2–610mm (8”–24”)
PRINTABLE MARGINS
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print): Top: 0 mm, Bottom: 0 mm,
Side: 0 mm
MAXIMUM PRINT LENGTH (SINGLE PAGE)†
Roll Feed: 18m (Varies according to the OS and application)
Cut Sheet: 1.6m
BORDERLESS PRINTING WIDTHS
[Recommended]515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8”, 12”, 16”, 20”, 300mm, 500mm, 600mm
MEDIA CUTTER
Automatic horizontal cutting (Rotary cutter): standard
MEDIA THICKNESS
0.07–0.8mm
MEDIA INTERNAL DIAMETER SIZES
Internal diameter of roll core: 2”/3”
MAXIMUM ROLL OUTER DIAMETER
150 mm or less
PRINTING SOFTWARE UTILITIES
Accounting Manager, Apple AirPrint, Device Management Console, Direct Print & Share, Free Layout Tool, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility
Layout, Advanced Preview), Optimised Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox
OPERATING SYSTEM
Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server
PRINT LANGUAGE
Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG
INTERFACE
Standard (Built-in): Hi -Speed, IEEE 802.3u 100base-TX/ Auto-Negotiation, IEEE 802.3ab 1000base-T / AutoNegotiation, IEEE 802.3x Full Duplex Wireless LAN (IEEE 802.11 b/g /n)■ Direct USB Thumb Drive Printing
ACOUSTIC NOISE
Acoustic Pressure: 44dB(A) (Plain paper, line drawing, standard mode) Stand by: 35dB(A) or less
(Measured on ISO7779 standard)
Acoustic Power: 6.0 Bels (Plain paper, line drawing, standard mode)
(Measured on ISO7779 standard)
POWER SUPPLY
AC 100–240V (50–60 Hz)
POWER CONSUMPTION
Power consumption (using wired LAN): 69 W or less
At sleep mode (using wired LAN): 3.6 W or less
At sleep mode (using all ports)
At the power off: 0.3 W or less
Default setting for the time to enter the Sleep mode
OPERATIONAL ENVIRONMENT
Temperature: 15–30°C
Relative Humidity: 10–80% RH (No Dew Condensation)
PRINTER DIMENSIONS (W X D X H) AND WEIGHT
Main Unit:982 x 748 x 439 mm
Weight: 41 kg (including Roll Holder Set, excluding ink and print head)
Main Unit + Stand + Basket (SD-23):
982 x 887 x 1060 mm (Basket Opened: Position1)
982 x 757 x 1060 mm (Basket Closed)
Weight: 52 kg (including Roll Holder Set, excluding ink and print head)
PACKAGE DIMENSIONS (W X D X H) AND WEIGHT
Printer (Main unit with pallet):
1152 x 913 x 705 mm, Weight: 69kg
Stand + Basket (SD-23):
1155 x 824 x 268 mm, Weight: 18kg
Printer (Main unit with stand and pallet) (SD-22):
1152 x 913 x 961 mm, Weight: 85kg
Printer (Main unit with stand and pallet) (SD-23):
1152 x 913 x 961 mm, Weight: 87kg
OPTIONS
2"/3" Roll Holder Set (RH2-28)
User-Replaceable Items:
Ink Tank (PFI-120 [130ml] / PFI-320 [300ml])
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)
