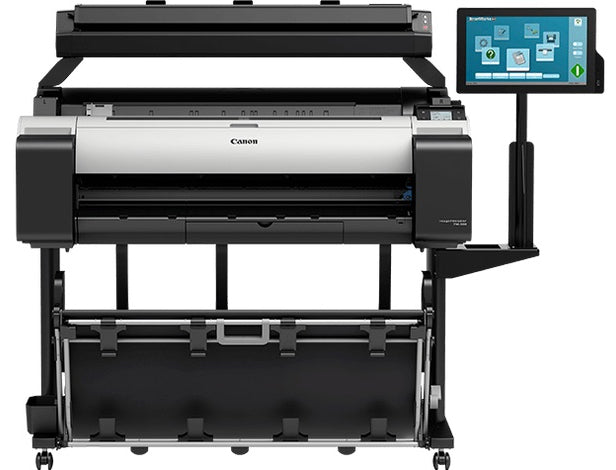

Canon imagePROGRAF TM-205 MFP A1 24" Large Format Multifunction Printer +2yrs Onsite Warranty

Scanning, copying & printing large format documents has never been easier with the TM-205 MFP L24ei - a simple PC-less scan-to-copy solution at an affordable cost with no PC required. Flexible workflow options include scanning direct to a network, the cloud or a USB memory stick, convenient to carry and share scanned data.

• A1 / 24" Large Format Multifunction Printer
• 5-Colour Water Resistant TD Pigment Inks
• Up to 60% quieter than its predecessors
• 3″ Colour Touchscreen Panel
• 500 GB Hard Drive / 2GB RAM
• Secure Printing
• Borderless Printing
• Ethernet, USB Direct, Wireless
• 2400 x 1200 dpi

Ink Type	Pigment	Size	24 inch
Functions	Print, Copy, Scan	Suitable For	Posters, Point of Sales
Borderless Print	Yes	Stand Included	Yes
Wi-Fi	Yes	Print Resolution	2,400 x 1,200 dpi
Warranty	2 Years	Warranty Type	Manufacturer





DESCRIPTION

Canon’s imagePROGRAF TM-205 MFP T25 is a wide format multifunction printer that has been designed to suit the needs of small to mid-sized firms working in the high pressured architectural, engineering and construction space. This low cost printer scans, copies and prints posters, CAD drawings and GIS files, quickly and with professional quality.



The Canon imagePROGRAF TM-205 MFP T25 is a multi-function printer that won’t let you down. Flexible and user-friendly with a touch-screen control panel, this wide-format printer has massive data storage for large files.

Canon’s expansive family of imagePROGRAF printers offers low cost, high-quality large format printers for businesses big and small. Quiet and with a small footprint, it’s an economical printer that will fit perfectly into your fast-paced office to generate print that’s as professional as your biggest competitor.

Expand your business, impress your clients with this large format printer

Canon’s imagePROGRAF TM-205 is an affordable printer that’s purpose designed for your small to mid-sized building and construction business. Compact and affordable, with your new Canon you can copy, scan and print posters, GIS and CAD files in large format, high definition long lasting colour, quickly, easily, and economically.

So quiet, you’ll forget its working

Don’t be fooled. Your imagePROGRAF may be quiet but it’s still working hard. With smart dampening technology, its 60% quieter than the competition.

High quality colour at a speed you won’t believe

With pigment-based LUCIA TD ink in five colours, your imagePROGRAF boosts productivity with sharp, vibrant graphics printed at incredible speed.



MULTIFUNCTIONAL LARGE FORMAT PRINTERS WITH GLOBAL SCANNING’S T SERIES SCANNERS

SmartWorks MFP scanning software simplifies large format scanning with intuitive operations on the touchscreen display. Even if you’re a novice user, you can now scan, copy, or edit large format images easily.

TM-205 T25 MFP

The TM-205 T25 MFP scanner incorporates the SingleSensor Technology Assembly, which helps provide consistent and better colour accuracy, offering you more detail in the shadows and highlights than a staggered CIS array scanner.

You can look forward to:

- a scanning speed of up to 330.2mm per second (monochrome) and 76.2mm per second (colour)
- being able to scan documents up to 2.0mm thick
- the versatility of either face up, or front load/rear exit scanning
- a straight paper path
- the scanner and printer working independently and allowing you greater productivity

SmartWorks software

Enjoy an easy-to-use interface with customisable background and presets.

Scan-to-Multipage PDF as a standard feature and make the most of your ability to mark up documents directly on the monitor. In addition, you now have the benefit of a real-time preview on the large 15.6” touchscreen.



WHAT'S IN THE BOX

Printer
- imagePROGRAF TM-205
- Printer stand: SD-23
- Print head PF-06
- Set starter ink tanks (C,M,Y,BK – 90ml/ MBK – 130ml)
- 3 inch Paper core attachment
- Power cable
- Safety/Standard Environment leaflet
- Set up guide
- User software CD-ROM (Windows)
- PosterArtist Lite software CD-ROM
- Important information sheet

Software:
- imagePROGRAF TM-Series Printer Driver
- Print Plug-In for Office
- Quick Utility Toolbox
- PosterArtist Lite
- Other software available as Download from Web
- ScanApp Lei software

Scanner:
- MFP L24ei scanner with 3-inch flat panel touch screen display
- Printer mounting brackets, fixings, & 3mm tool
- 1 Document return guide
- Calibration target
- CD for ScanApp Lei Software (included PDF documentation: L24ei Scanner User Manual and Icon Guide per language and Quick Start Guide)
- L24ei Scanner Quick Start Guide
- Ethernet cable (2 meter)
- Power Supply Regional – Mains power cord(s) (2 meter)
- 2 Feet for desktop use
- 2 Paper edge guides and paper refeed preventers

Options:
- Additional Media Load Bar (Roll Holder Set): RH2-28
- 5 Meter CAT5E Network Cable
- 10 Meter CAT5E Network Cable
- 5 Meter USB 2.0 High Speed Interface Cable
- Canon Poster Artist Software V2.5

Consumables:
- Ink Tanks 120ml: PFI-120 (MBK,BK,C,M,Y)
- Ink Tanks 300ml: PFI-320 (MBK, BK, C, M, Y)
- Print Head: PF-06
- Maintenance Cartridge: MC-31|
- Cutter blade: CT-08



MAIN SPECIFICATIONS

PRINT HEAD
PF-06

TECHNOLOGY
FINE (Photolithography Inkjet Nozzle Engineering)

PRINT RESOLUTION (MAX.)
2400 x 1200 dpi

LINE ACCURACY*
±0.1% or Less
User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

MINIMUM LINE WEIGHT**
0.02mm

NUMBER OF NOZZLES
Matte Black: 5,120 Nozzles
Other Colours: 2,560 Nozzles per Colour

DROPLET SIZE
Minimum 5 Picolitre per color

NOZZLE PITCH (HEAD RESOLUTION)
1200 dpi x two lines

PRINT HEAD SWATH
1.07”

INK TYPE
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

INK TANK
PFI-120 (130ml) / PFI- 320 (300ml)

INK SUPPLY METHOD
Tubing System with Sub-tanks

NOZZLE RECOVERY SYSTEM
Non-firing Nozzle Detection and Compensation

PRINTER CONTROLLER
L-COA PRO

PRINTER RAM
128GB (Physical memory 2GB)

HARD DRIVE
500GB

MEDIA FEED
Roll Feed: One Roll, Uppper-loading, Front Output

MEDIA WIDTH
Roll Feed: 203.2–610mm (8”–24”)
Cut Sheet: 203.2–610mm (8”–24”)

PRINTABLE MARGINS
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print): Top: 0 mm, Bottom: 0 mm,
Side: 0 mm

MAXIMUM PRINT LENGTH (SINGLE PAGE)†
Roll Feed: 18m (Varies according to the OS and application)
Cut Sheet: 1.6m

BORDERLESS PRINTING WIDTHS
[Recommended]515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8”, 12”, 16”, 20”, 300mm, 500mm, 600mm

MEDIA CUTTER
Automatic horizontal cutting (Rotary cutter): standard

MEDIA THICKNESS
0.07–0.8mm

MEDIA INTERNAL DIAMETER SIZES
Internal diameter of roll core: 2”/3”

MAXIMUM ROLL OUTER DIAMETER
150 mm or less

PRINTING SOFTWARE UTILITIES
Accounting Manager, Apple AirPrint, Device Management Console, Direct Print & Share, Free Layout Tool, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility
Layout, Advanced Preview), Optimised Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox

OPERATING SYSTEM
Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server

PRINT LANGUAGE
Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG

INTERFACE
Standard (Built-in): Hi -Speed, IEEE 802.3u 100base-TX/ Auto-Negotiation, IEEE 802.3ab 1000base-T / AutoNegotiation, IEEE 802.3x Full Duplex Wireless LAN (IEEE 802.11 b/g /n)■ Direct USB Thumb Drive Printing

ACOUSTIC NOISE
Acoustic Pressure: 44dB(A) (Plain paper, line drawing, standard mode) Stand by: 35dB(A) or less
(Measured on ISO7779 standard)
Acoustic Power: 6.0 Bels (Plain paper, line drawing, standard mode)
(Measured on ISO7779 standard)

POWER SUPPLY
AC 100–240V (50–60 Hz)

POWER CONSUMPTION
Power consumption (using wired LAN): 69 W or less
At sleep mode (using wired LAN): 3.6 W or less
At sleep mode (using all ports)
: 3.6 W or less
At the power off: 0.3 W or less
Default setting for the time to enter the Sleep mode
: 300sec

OPERATIONAL ENVIRONMENT
Temperature: 15–30°C
Relative Humidity: 10–80% RH (No Dew Condensation)

PRINTER DIMENSIONS (W X D X H) AND WEIGHT

Main Unit:982 x 748 x 439 mm
Weight: 41 kg (including Roll Holder Set, excluding ink and print head)
Main Unit + Stand + Basket (SD-23):
982 x 887 x 1060 mm (Basket Opened: Position1)
982 x 757 x 1060 mm (Basket Closed)
Weight: 52 kg (including Roll Holder Set, excluding ink and print head)

PACKAGE DIMENSIONS (W X D X H) AND WEIGHT
Printer (Main unit with pallet):
1152 x 913 x 705 mm, Weight: 69kg
Stand + Basket (SD-23):
1155 x 824 x 268 mm, Weight: 18kg
Printer (Main unit with stand and pallet) (SD-22):
1152 x 913 x 961 mm, Weight: 85kg
Printer (Main unit with stand and pallet) (SD-23):
1152 x 913 x 961 mm, Weight: 87kg

OPTIONS
2"/3" Roll Holder Set (RH2-28)

User-Replaceable Items:
Ink Tank (PFI-120 [130ml] / PFI-320 [300ml])
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)
