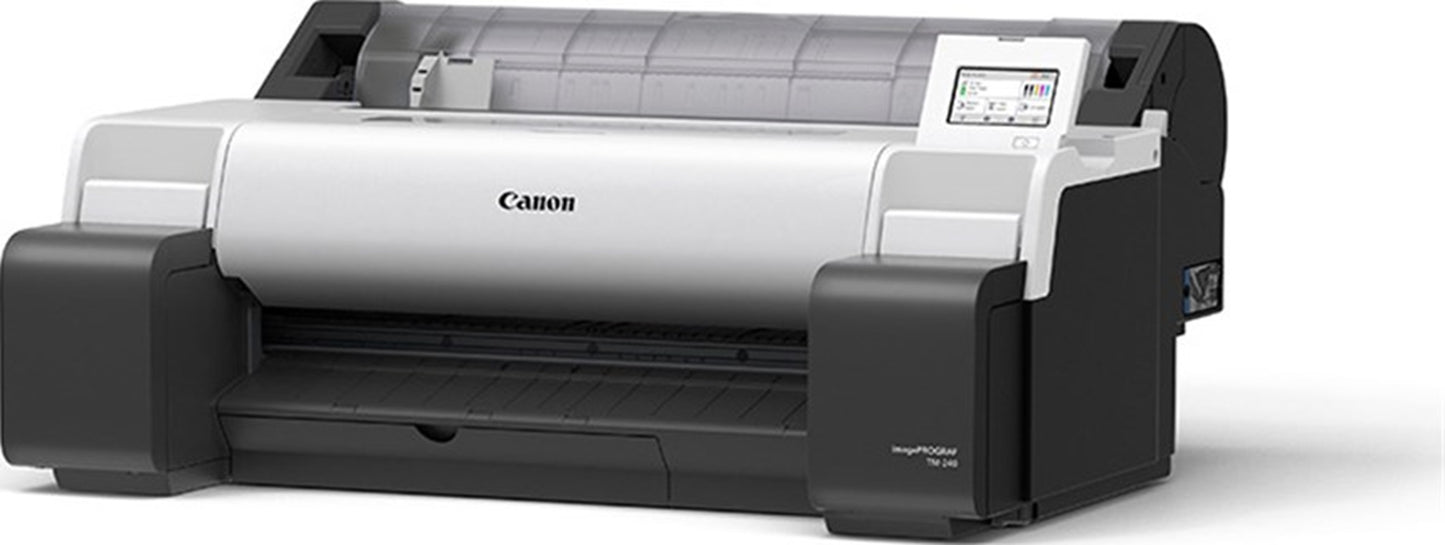

Canon imagePROGRAF TM-240 24

Seamlessly create professional quality prints with reliable productivity, intuitive functionality, and sustainable operation processes. Produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints.

• Print Head: PF-06
• Number of Nozzles: MBK: 5,120 nozzles
• BK/C/M/Y: 2,560 nozzles
• Droplet Size: Minimum 5pl per color
• Ink Type: Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
• Ink tank: Shipped with Printer: MBK(80ml), C, M, Y, BK (55ml each)
• Replacement: C, Y, BK, MBK: PFI-030 (55ml) Magenta: PFI-031 (55ml)
• Printer RAM: 2 GB
• Dimensions (W x H x D): 38.5 x 17.2 x 29.4" / 97.8 x 43.7 x 74.7 cm
• Weight: 88.2 lb / 40,007 g

DESCRIPTION

Reimagine performance with an elevated printing experience

Seamlessly create professional quality prints with reliable productivity, intuitive functionality and sustainable operation processes. Produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints.

Virtual Showroom

Take a tour of our virtual showroom. This interactive tool helps you learn more about Canon's “Next Standard of Engineering” wide-format printers.

Improved sustainability

Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.

SPECIFICATIONS

• Print Head: PF-06
• Number of Nozzles: MBK: 5,120 nozzles
• BK/C/M/Y: 2,560 nozzles
• Droplet Size: Minimum 5pl per color
• Ink Type: Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
• Ink tank: Shipped with Printer: MBK(80ml), C, M, Y, BK (55ml each)
• Replacement: C, Y, BK, MBK: PFI-030 (55ml) Magenta: PFI-031 (55ml)
• Printer RAM: 2 GB
• Media Feed: Roll Feed: One Roll, Top-loading, Front Output | Cut Sheet: Top-loading, Front Output

Media Width

• Roll Paper:  ISO A3, A3+, A2, A2+, A1 | JIS B4, B3, B2 | ARCH 12”, 18”, 24” | Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22” | 300mm, 500mm, 600mm | Cut Sheet | ISO A4, A3, A3+, A2, A1, B4, B3, B2 | DIN C4, C3, C2 | JIS B4, B3 | ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19” | 17 x 22”, 22 x 34”  | ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”  |Photo (20 x 24”), (18 x 22”), (14 x 17”) | (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
• Poster 20 x 30”, 300 x 900mm
• Others 13 x 22”
• Media Cutter: Automatic horizontal cutting (Rotary Cutter)
• Media Thickness: 0.07 – 0.8 mm
• Media Core Sizes: 2” or 3” Core (3” core adaptor is available with RH2-28/RH2-35 purchase. Not included in printer)
• Maximum Roll Outer Diameter: 150mm or less
• Printing Software Utilities: Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
• PosterArtist Web/PIXMA Cloud Link

Operating System

• Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
• Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
• – macOS Ventura 13

• Print Language: SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4
• Interface: Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
• Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE TX)/IEEE802.3(10BASE-T) Wireless LAN: IEEE 802.11 b/g /n
• Power Supply: AC 100–240V (50 – 60 Hz)
• Power Consumption: Power Consumption (using wired LAN) Approx 59W
• Standby (using wired LAN) Approx 1.6W: Power Off Approx 0.1W
• Operational Environment: Temperature: 15°-30° C
• Relative Humidity: 10-80% (Non Condensation).
• Printer Dimensions (W x D x H) and Weight: Dimensions with stand basket opened (W x D x H) 978 x 868 x 1060mm
• Weight (with Stand) 50.9 kg
• Package Dimensions (W x D x H) and Weight TM-240
• Printer Package Dimensions (W x D x H) with pallet 1152 x 912 x 679mm
• Printer Package Weight 71kg
• Stand Package Dimension 1058 x 826 x 270 mm
• Stand Package Weight 20kg
• Options: Roll Holder RH2-28

Consumables

• Ink Tank PFI-030 C/Y/BK/MBK, PFI-031 M
• Maintenance Cartridge MC-31
• Cutter Blade CT-08
