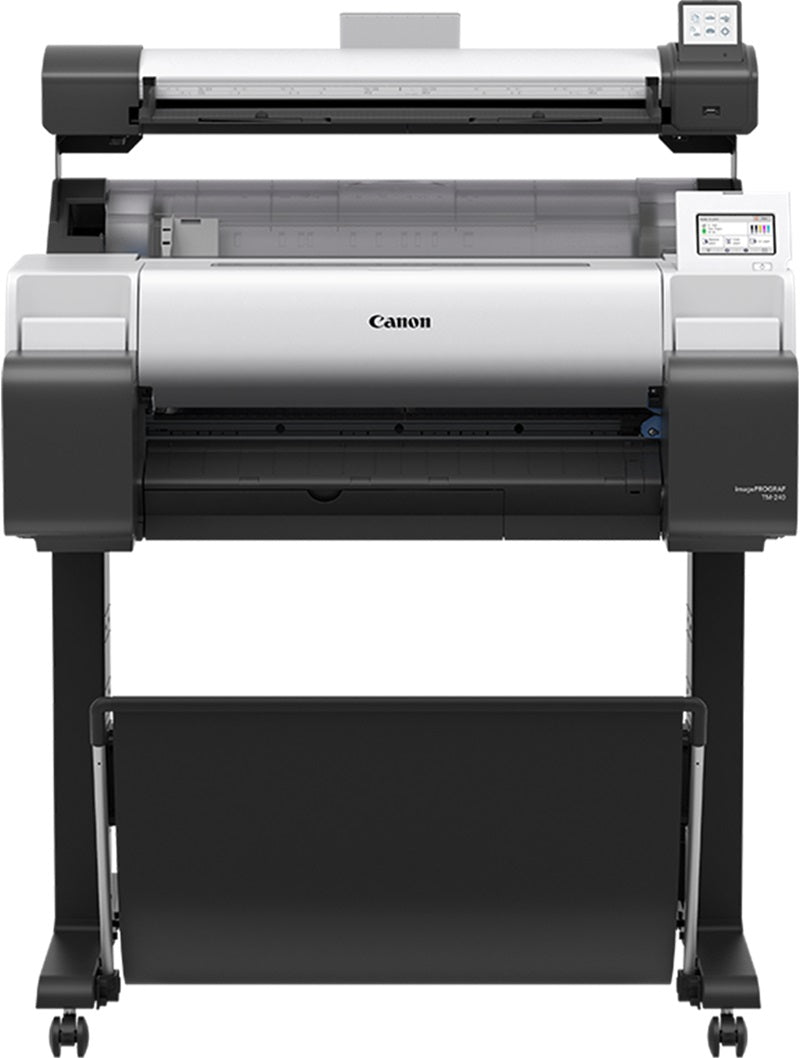

Canon imagePROGRAF TM-240 24" Technical & Poster Large Format Printer with Stand & Scanner

• Multifunction Printer
• Mobile print: Yes
• Control Panel: 4.3" LCD Panel
• Supported paper size: Up to 24"
• Printing resolution: 2400 x 1200dpi
• Storage: None
• Print colour: 5 colour
• Ink type: Pigment ink
• Network connectivity: Yes
• Printing application: Technical and Poster
• Dimensions (W x Hx D): 978 x 1276 x 868mm (Basket opened)

DESCRIPTION

Reimagine performance with a sustainable 24” multifunction printer, offering less noise operation, more intuitive functionality and high print quality, to create professional quality prints with sharp, crisp lines and vivid red colour – perfect for eye-catching CAD drawings and marketing materials. Integrated scanning functionality with dedicated software boosts productivity, print and scan at speed for a more seamless workflow.

Integrated functionality

Print and scan seamlessly with an easy-to-use multi-tasking device, featuring a 3” touchscreen panel on the scanner and dedicated software, for parallel processing with printing and scanning simultaneously

Enhanced professional quality

The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more

Reliable productivity

Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device

Intuitive functionality

Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover

Improved sustainability

Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices

Print Head

• PF-06

Number of Nozzles

• MBK: 5,120 nozzles
• BK/C/M/Y: 2,560 nozzles

Droplet Size

• Minimum 5pl per color

Ink Type

• Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)

Ink tank

• Shipped with Printer: MBK(80ml), C, M, Y, BK (55ml each)
• Replacement: C, Y, BK, MBK: PFI-030 (55ml) Magenta: PFI-031 (55ml)

Printer RAM

• 2 GB

Media Feed

• Roll Feed: One Roll, Top-loading, Front Output
• Cut Sheet: Top-loading, Front Output

Media Width

Roll Paper:

• ISO A3, A3+, A2, A2+, A1
• JIS B4, B3, B2
• ARCH 12”, 18”, 24”
• Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”
• 300mm, 500mm, 600mm

Cut Sheet

• ISO A4, A3, A3+, A2, A1, B4, B3, B2
• DIN C4, C3, C2
• JIS B4, B3
• ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”
• 17 x 22”, 22 x 34”
• ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
• Photo (20 x 24”), (18 x 22”), (14 x 17”)
• (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
• Poster 20 x 30”, 300 x 900mm
• Others 13 x 22”

Media Cutter

• Automatic horizontal cutting (Rotary Cutter)

Media Thickness

• 0.07 – 0.8 mm

Media Core Sizes

• 2” or 3” Core (3” core adaptor is available with RH2-28/RH2-35 purchase. Not included in printer)

Maximum Roll Outer Diameter

• 150mm or less

Printing Software Utilities

• Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
• imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
• PosterArtist Web/PIXMA Cloud Link

Operating System

• Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
• Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
• – macOS Ventura 13

Print Language

• SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4

Interface

• Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
• Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
• Wireless LAN: IEEE 802.11 b/g /n

Power Supply

• AC 100–240V (50 – 60 Hz)

Power Consumption

• Power Consumption (using wired LAN) Approx 59W
• Standby (using wired LAN) Approx 1.6W
• Power Off Approx 0.1W

Operational Environment

• Temperature: 15°-30° C
• Relative Humidity: 10-80% (Non Condensation).

Printer Dimensions

(W x D x H) and Weight

• Dimensions with stand basket opened (W x D x H) 978 x 868 x 1060mm
• Weight (with Stand) 50.9 kg

Package Dimensions

(W x D x H) and Weight TM-240

• Printer Package Dimensions (W x D x H) with pallet 1152 x 912 x 679mm
• Printer Package Weight 71kg
• Stand Package Dimension 1058 x 826 x 270 mm
• Stand Package Weight 20kg

Options

• Roll Holder RH2-28

Consumables

• Ink Tank PFI-030 C/Y/BK/MBK, PFI-031 M
• Maintenance Cartridge MC-31
• Cutter Blade CT-08

Scanner

• Max Scan Speed (for scan) 200dpi Draft = 1ips colour, 3ips mono
• Max Scan Speed (for copy) 300dpi Draft = 1ips colour, 3ips mono
• Colour Space sRGB
• Maximum Resolution 600dpi
• Scan Accuracy 0.2% +/- 1 pixel

Size and Weight

• Minimum/Maximum Scan Width 6.2”/24”
• Minimum/Maximum Scan Length 8cm/2.77 m
• Minimum/Maximum Media Thickness 0.07mm/0.8mm
• Included Software ScanAppL
• Scanner Dimensions (W x D x H) 935 x 253 x 131 mm
• Scanner Weight 5.28kg
• Scanner Package Dimension 1030 x 280 x 205 mm
• Scanner Package Weight (Gross) 9.4kg
