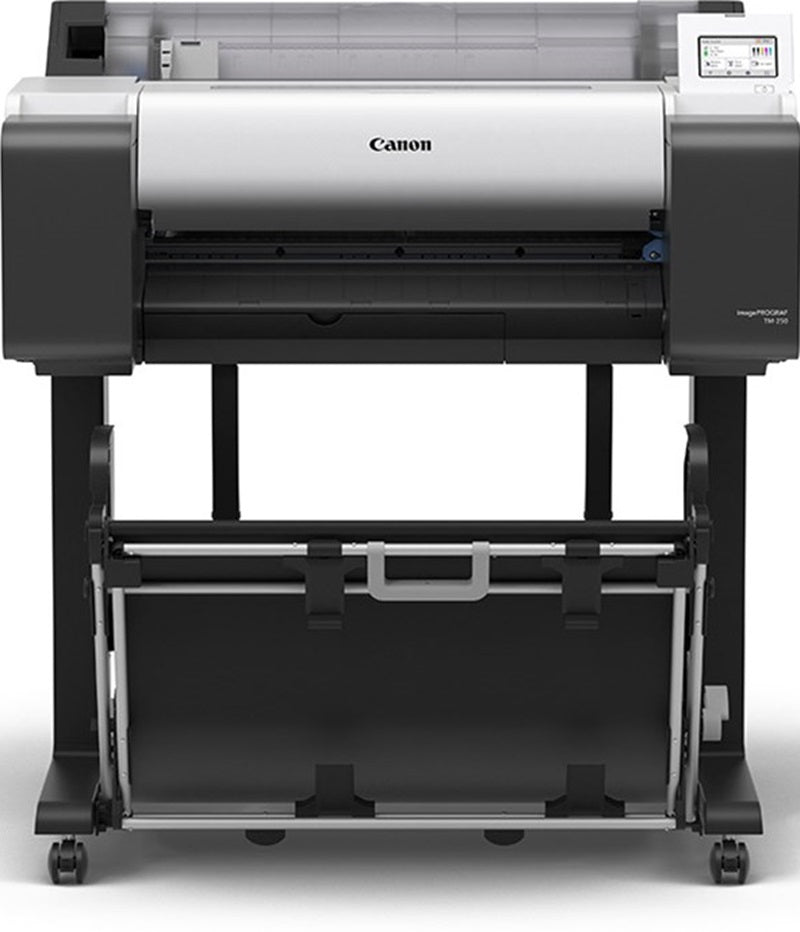

Canon imagePROGRAF TM-250 24-in Technical & Poster Large Format Printer with Stand

• Functions: Print
• Print Head: PF-06
• Number of Nozzles: MBK: 5,120 nozzles | BK/C/M/Y: 2,560 nozzles
• Droplet Size: Minimum 5pl per color
• Ink Type: Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
• Ink tank: Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)
• Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)
• Printer RAM: 2 GB
• Media Feed: Roll Feed: One Roll, Top-loading, Front Output
• Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm
• Weight (with Stand) 54.5 kg
• Power Consumption (using wired LAN) Approx 62W
• Standby (using wired LAN) Approx 1.6W
• Power Off Approx 0.1W
• Cut Sheet: Top-loading, Front Output: Media Width

Elevate printing experiences with enhanced productivity, intuitive functionality and professional image quality from a sustainable device. The 24” printer can seamlessly create accurate CAD prints with sharp lines and eye-catching marketing materials, designed for corporate and sizable AEC offices and the retail and education sector.

Professional printing quality

Use stable image enhancements to create sharp, crisp lines and new magenta ink for vivid red colour. As a result, you’ll produce vivid and accurate CAD drawings, posters and educational materials

Enhanced productivity

Produce A1 CAD prints in just 20 seconds, or A1 posters in 22 seconds. Save time trimming excess margins with borderless prints of any sizes and easily meet higher print demand with larger ink tanks, quick processing time and a fast return from sleep mode

Intuitive functionality

Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover

Improved sustainability

Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices

SPECIFICATIONS

• Print Head: PF-06
• Number of Nozzles: MBK: 5,120 nozzles | BK/C/M/Y: 2,560 nozzles
• Droplet Size: Minimum 5pl per color
• Ink Type: Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
• Ink tank: Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)
• Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)
• Printer RAM: 2 GB
• Media Feed: Roll Feed: One Roll, Top-loading, Front Output
• Cut Sheet: Top-loading, Front Output: Media Width

Roll Paper:

• ISO A3, A3+, A2, A2+, A1
• JIS B4, B3, B2
• ARCH 12”, 18”, 24” 12”, 18”, 24”
• Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”, 300mm, 500mm, 600mmx`

Cut Sheet

• ISO A4, A3, A3+, A2, A1, B4, B3, B2
• DIN C4, C3, C2
• JIS B4, B3
• ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”, 17 x 22”, 22 x 34”
• ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
• Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
• Poster 20 x 30”, 300 x 900mm
• Others 13 x 22”

Media Cutter

• Automatic horizontal cutting (Rotary Cutter)
• Media Thickness: 0.07 – 0.8 mm
• Media Core Sizes: 2” or 3” Core
• Maximum Roll Outer Diameter: 150mm or less

Printing Software Utilities

• Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
• imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
• PosterArtist Web/PIXMA Cloud Link

Operating System

• Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
• Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
• – macOS Ventura 13

• Print Language: SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4

Interface

• Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
• Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
• Wireless LAN: IEEE 802.11 b/g /n
• Power Supply AC 100–240V (50 – 60 Hz)

Power Consumption

• Power Consumption (using wired LAN) Approx 62W
• Standby (using wired LAN) Approx 1.6W
• Power Off Approx 0.1W

Operational Environment

• Temperature: 15°-30° C
• Relative Humidity: 10-80% (Non Condensation).

Printer Dimensions (W x D x H) and Weight

• Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm
• Weight (with Stand) 54.5 kg

• Package Dimensions (W x D x H) and Weight: Printer Package Dimensions (W x D x H) with pallet 1152 x 913 x 679mm
• Printer Package Weight 73kg
• Stand Package Dimension 1058 x 826 x 270 mm
• Stand Package Weight 22kg

Options

• Roll Holder RH2-28

Consumables

• Ink Tank PFI-120 C/Y/BK/MBK, PFI-121 M, PFI-320 C/Y/BK/MBK, PFI-321 M,
• Maintenance Cartridge MC-31
• Cutter Blade CT-08
