| Ink Type | Pigment | Size | 36 inch |
| Functions | Suitable For | Posters, Point of Sales | |
| Borderless Print | Yes | Stand Included | Yes |
| Wi-Fi | Yes | Print Resolution | 2,400 x 1,200 dpi |
| Warranty | 2 Years | Warranty Type | Manufacturer |
DESCRIPTION

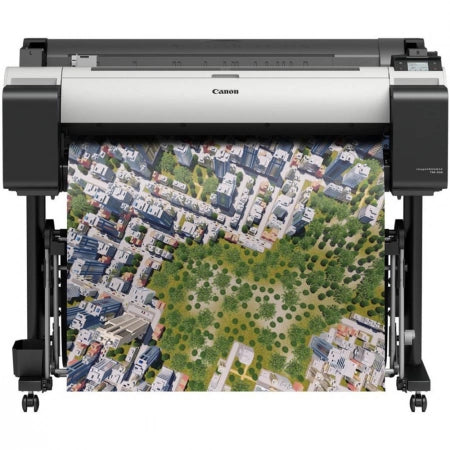

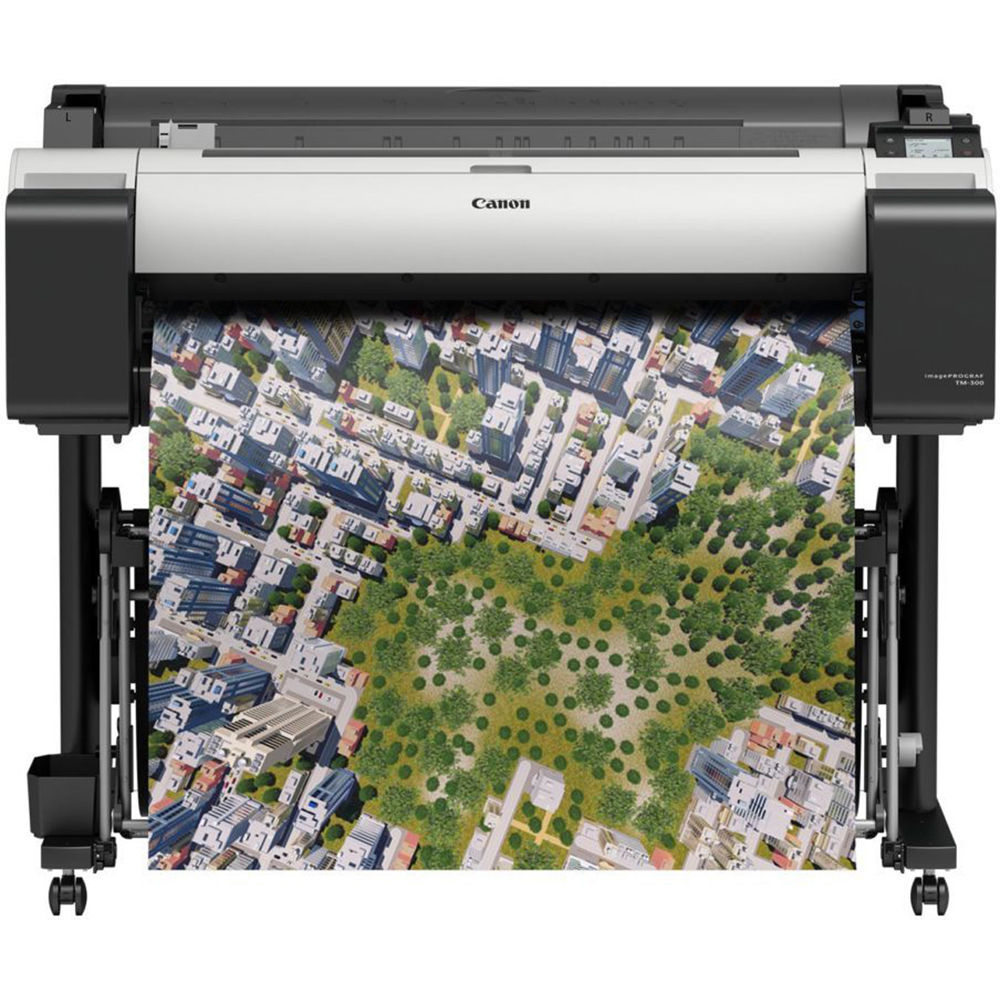

The Canon imagePROGRAF TM-300 is purpose designed for small businesses that are up against the larger competition in architecture, engineering and construction. This economical wide format printer is packed with features that will save you money while producing the most professional results.
This large format printer is ideal for small businesses. Posters, CAD drawings and GIS files are generated quickly in sharp detail and vibrant colour, even on standard paper, thanks to LUCIA pigment inks. Options to enhance your print with weather resistance is key, especially when your work takes you on-site and outdoors.
For businesses working to a budget, this economical printer range will be more cost-effective than outsourcing print, more time efficient, and it will give you the power to refine and enhance output.
Achieve professional large format print, quickly, easily and cost effectively
Whether you’re looking to reproduce fine drawings or print visual concepts in brilliant colour, Canon’s large format imagePROGRAF TM-300 is your ideal solution. Compact, cost effective and quiet, this user friendly large format printer and scanner uses pigment based inks to produce long lasting professional quality images.
High output without the fuss
Worried about office distractions? Don’t be. Your Canon imagePROGRAF is 60% quieter than the competition yet 20% faster when it comes to output.
Fast, high quality inkjet printing
Achieve new levels of productivity with this fast moving inkjet printer that uses pigment based ink for long lasting colour and detail on plain paper.
APPLICATIONS:
- For Small businesses
- Colour Posters
- CAD & Technicial Printing
- Architectural Drawings
- Banners
- Water Resistant Media
- Point of Sales (POS) Displays & Signage
LUCIA TD Pigment Ink Set
The TM-300 device features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-300.
Fast Printing
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour!
Security Feature
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
Functionality Restrictions
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
Secure Storage
- Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
- Secure File Erase*
The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Quiet Operation
The TM-300 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Operation Panel
The TM-300 features a 3" color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
Small Footprint
A good fit for small offices, the compact TM-300 has a small footprint for a large format aqueous inkjet printer.
Wi-Fi Compatible
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Print Head PF-06
The 6-channel PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
WHAT'S IN THE BOX
- imagePROGRAF TM-300
- Catch Basket
- Stand
- 2"/3" Core Media Spool (Adaptors Included)
- US AC Power Cable
- Tools and Screws
- Print Head PF-06
- Maintenance Cartridge (Installed)
- 5 Ink Tanks (130 ml: MBK, 90 ml: C/M/Y/BK)
- Sample Heavyweight Coated Paper (A2/2 Sheets)
- Ethernet Card (built-in)
- USB 2.0 High-speed Interface
- USB Connection Sheet
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- Media Guide
MAIN SPECIFICATIONS
Printer Type
5-Color 36-inch Printer
Number of NozzlesTotal: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch1,200 dpi
Non-firing nozzle detection and compensation
OS CompatibilityWindows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard InterfacesUSB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size5 picoliter
Ink Capacity130 ml or 300ml per color
Ink Droplet SizePigment Ink
Colour SetPigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram2 GB (Physical)
Media WidthCut Sheet: 8"- 36" (203.2mm -914.4mm)
Roll Feed: 8" - 36" (203.2mm -914.4mm)
Media Thickness0.07-0.8mm
Maximum Roll Print LengthRoll Feed - 59' (18 meters)
Maximum Media Roll Diameter5.9" (150mm)
Borderless Printing Width8”, 10", 12”, 14", 16” 17", 20”, 24", 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm)
Paper Feed MethodRoll Feed: One Roll, Top-loading, Front
Output Cut Sheet: Top Loading, Front Output
LanguagesSGRaster, HPGL/2, HP-RTL, JPEG
Noise Level ApproxOperation: 44 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.0 Bels
Physical Dimensions42" x 51" x 35" (1066.8mm x 1295.4mm x 889mm)
Weightapprox.130 lbs . (58.97 kg.) roll holder included, no inks, no print heads
Power SourceAC100-240V (50-60Hz)
Power ConsumptionMaximum: 69W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating EnvironmentTemperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable itemsPrint Head (PF-06)
Maintenance Cartridge (MC-31)
Ink Tanks (PFI-120/PFI-320)
Cutter Blade (CT-08)
SoftwareTM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †
