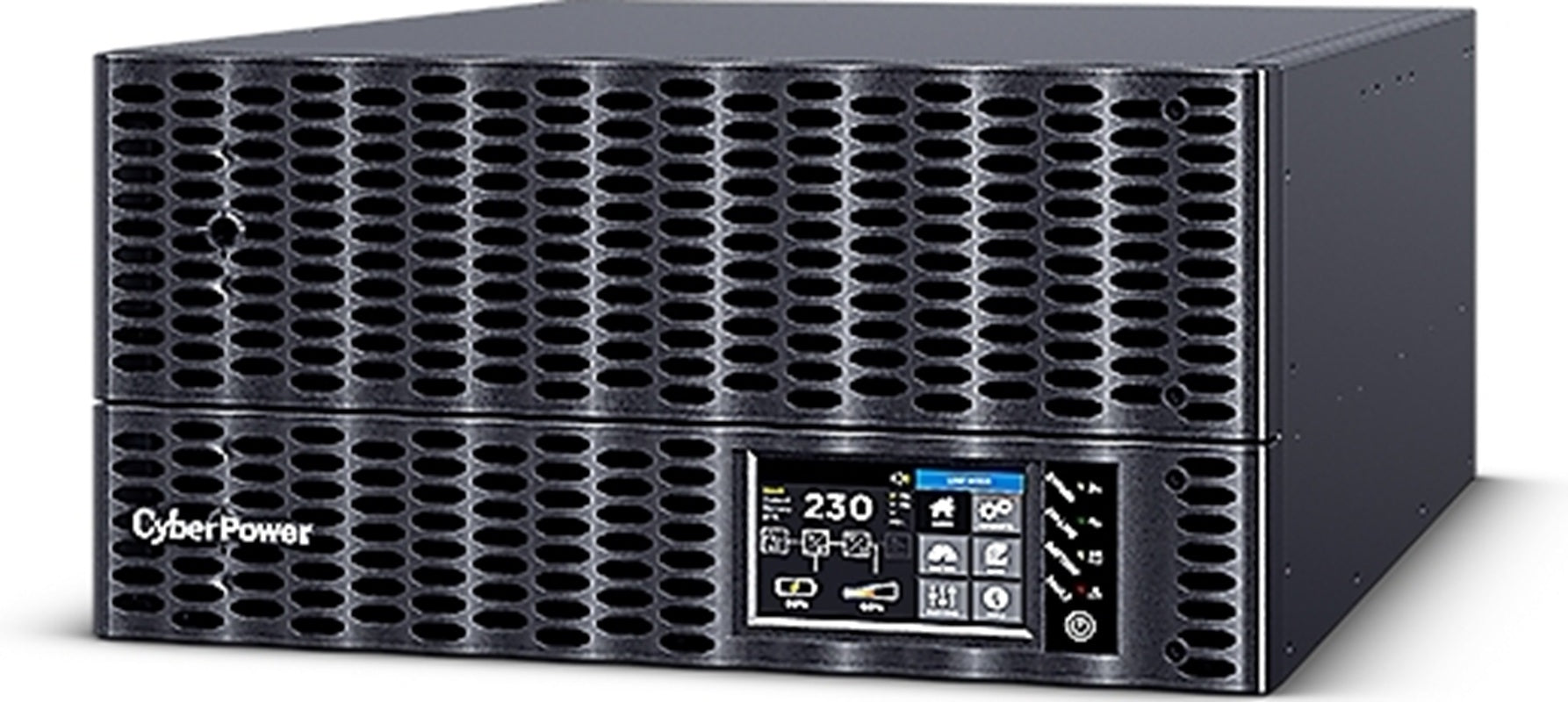

CyberPower 40KVA/40KW Rack UP

The CyberPower OL3T040KERTHD is a high-capacity 40kVA/40kW online double-conversion UPS designed to provide reliable power protection for critical infrastructure in data centers, industrial facilities, and large enterprise environments.​

• Three-phase Design
• High Output Power Factor
• Color LCD Panel
• Dual Inputs
• Pure Sine Wave Output
• Battery Cold Start
• SNMP/HTTP Remote Management Capability (Optional)
• Extended Battery Module (EBM)
• Online (Double Conversion) UPS Topology
• Rack Modular Design
• LCD Touch Panel
• Generator Compatible
• UPS Parallel Expansion
• Smart Battery Management (SBM)
• PowerPanel Management Software

DESCRIPTION

The CyberPower OL3T040KERTHD is a high-capacity 40kVA/40kW online double-conversion UPS designed to provide reliable power protection for critical infrastructure in data centers, industrial facilities, and large enterprise environments.​

Specifications:

• Phase: Three Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 98.9%
• Normal Mode Efficiency ( % ): 95.8%
• Battery Mode Efficiency ( % ): 95.5%
• Parallel Expansion (Max. Units): 4
• Dual Power Inputs: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
• Input Voltage Range ( Vac ): Line to Neutral (L-N): 132 ~ 276 Vac, Line to Line (L-L): 228 ~ 478 Vac
• Input Frequency Range ( Hz ): 40 ~ 70
• Rated Input Current ( A ): 64.5
• Input Power Factor: 0.99
• Overload Protection (Bypass): 125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms
• Input Connector Type: Hardwire Terminal Block
• Capacity (VA): 40000
• Capacity (Watts): 40000
• On Battery Waveform: Pure Sine Wave
• Output Voltage Setting: Configurable
• Output Frequency Setting: Configurable
• Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
• Output Voltage Tolerance ( % ): Balance Load: 1 %
• Output Frequency ( Hz ± % ): 50 ± 0.2, 60 ± 0.166
• Power Factor: 1
• ECO Mode Voltage Tolerance: ± 5 %
• Overload Protection: Internal Current Limiting, Fuse
• Overload Protection (Line Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms
• Overload Protection (Battery Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?1%
• Harmonic Distortion (Non-linear Load): THD?3%
• Internal Bypass: Automatic Bypass
• Synchronization Window (Nominal) ( Hz ): ± 4
• Outlet Type: Hardwire Terminal Block x 1
• Typical Transfer Time ( ms ): 0
• Maximum Charging Current ( A ): 12
• Typical Charging Current ( A ): 3.6
• Compatible Battery Types: VRLA
• Recharge Power Setting: Configurable
• Charger Voltage Tolerance ( % ): ? 1 %
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• Compatible Extended Battery Module (EBM): BME480V55ART5U
• External Battery Quantity: 12V x 40pcs
• EMI/RFI Filtration: Yes
• LCD Panel: Yes
• LCD Types: Color LCD, LCD Touch Panel
• LCD Orientation: Rotatable LCD ? Manual
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language
• LED Indicators: Yes
• Shortcut Button: Alarm On/Off
• Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x1
• Dry Contact (with Relay): Yes
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Compatible with Racks (3 Phase): Yes
• Enclosure Construction: Metal
• Color: Black
• Ingress Protection: IP20
• Rackmount Rail: Yes
• Dimensions (mm.): 433 x 219 x 730
• Weight (kg.): 42.8
• Installed Rack Height ( U ): 5
• Operating Temperature (°C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Operating Elevation (meters): 0-3,000
• Storage Temperature (°C): -40 ~ 70
• Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Audible Noise at 1.0M from Surface of Unit: 66dBA(100% load), 56dBA(50% load)

Features:

• Three-phase Design
• High Output Power Factor
• Color LCD Panel
• Dual Inputs
• Pure Sine Wave Output
• Battery Cold Start
• SNMP/HTTP Remote Management Capability (Optional)
• Extended Battery Module (EBM)
• Online (Double Conversion) UPS Topology
• Rack Modular Design
• LCD Touch Panel
• Generator Compatible
• UPS Parallel Expansion
• Smart Battery Management (SBM)
• PowerPanel Management Software
