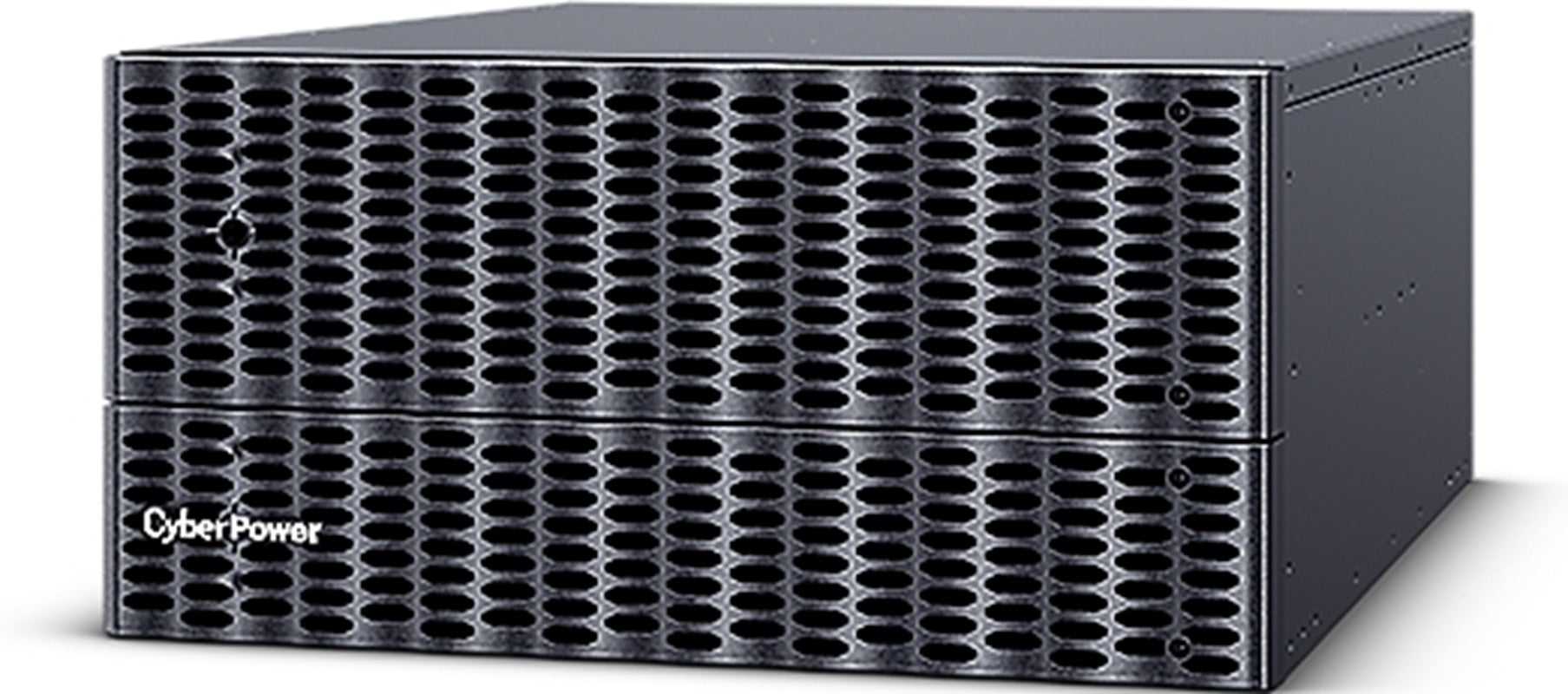

CyberPower Battery Pack for OL3T UP

The CyberPower BME480V55ART5U is an Extended Battery Module (EBM) designed to significantly enhance the runtime of the CyberPower OL3T UPS during power outages. This 5U rackmount or tower-convertible module features 40 sealed lead-acid batteries, each rated at 12V/9Ah, providing a nominal output voltage of 480V DC and a rated output current of 55A.​

• Nominal Output Voltage ( Vdc ): 480
• Rated Output Current ( A ): 55
• Battery Type: Sealed Lead-acid
• Battery Quantity ( pcs ): 40
• Single Battery Voltage ( V ): 12
• Single Battery Capacity ( AH ): 9
• Built-in Charger: No
• User-replaceable: Yes
• Hot-swappable: Yes
• Expansion Ready: Yes
• Parallel Expansion (Max. Units): 10
• Replacement Battery Pack Quantity ( pcs ): 4
• Form Factor: Rackmount, Tower
• Enclosure Construction: Metal
• Color: Black

DESCRIPTION

• The CyberPower BME480V55ART5U is an Extended Battery Module (EBM) designed to significantly enhance the runtime of the CyberPower OL3T UPS during power outages. This 5U rackmount or tower-convertible module features 40 sealed lead-acid batteries, each rated at 12V/9Ah, providing a nominal output voltage of 480V DC and a rated output current of 55A.​

Specifications:

• Nominal Output Voltage ( Vdc ): 480
• Rated Output Current ( A ): 55
• Battery Type: Sealed Lead-acid
• Battery Quantity ( pcs ): 40
• Single Battery Voltage ( V ): 12
• Single Battery Capacity ( AH ): 9
• Built-in Charger: No
• User-replaceable: Yes
• Hot-swappable: Yes
• Expansion Ready: Yes
• Parallel Expansion (Max. Units): 10
• Replacement Battery Pack Quantity ( pcs ): 4
• Form Factor: Rackmount, Tower
• Enclosure Construction: Metal
• Color: Black
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions (mm): 433 x 219 x 730
• Weight (kg.): 135.8
• Installed Rack Height ( U ): 5
• Dimensions (mm.): 590 x 376 x 890
• Weight (kg.): 150
• Operating Temperature (°C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Operating Elevation (meters): 0-3,000
• Storage Temperature (°C): -15 ~ 45
• Storage Relative Humidity (Non-condensing) ( % ); 0 ~ 95
• Storage Elevation (meters): 0-15,000

Features:

• Certifications: CE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1
• RoHS: Yes
