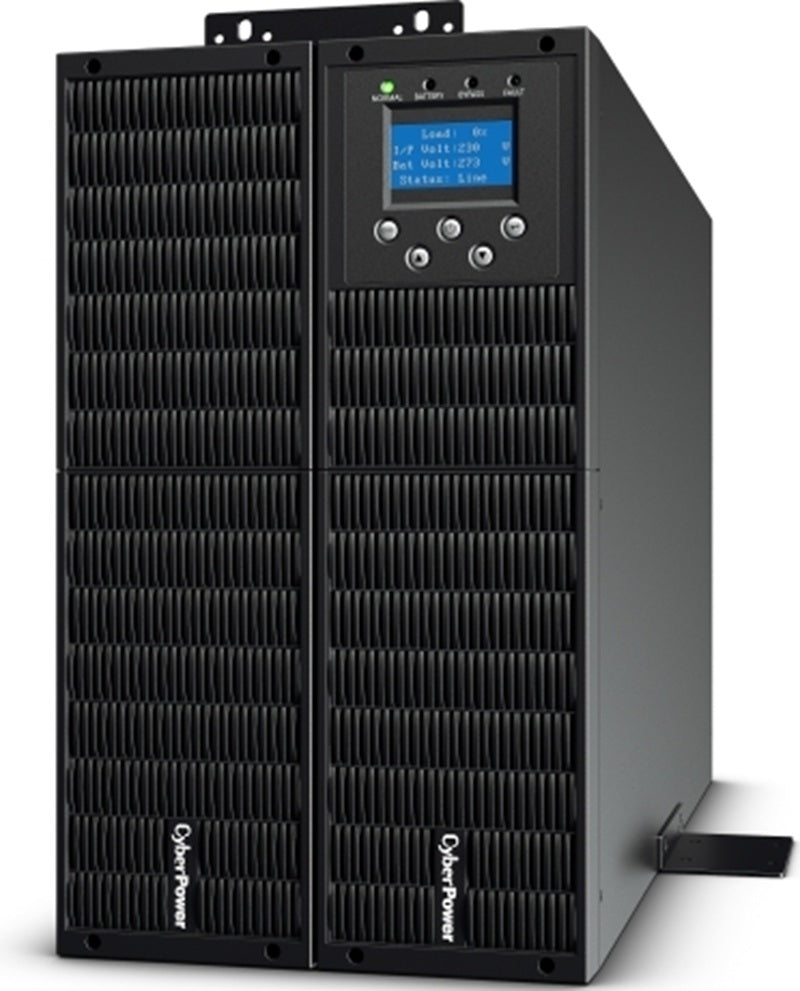

CyberPower Online S - Smart App UPS System - 10000VA

The CyberPower Online S Smart App UPS System – 10,000VA is a high-performance, double-conversion uninterruptible power supply designed to provide reliable, pure sine wave power for critical IT infrastructure. Ideal for enterprise installations, corporate servers, storage devices, and VoIP systems, this UPS ensures continuous power protection and efficient energy management.

• Online (Double Conversion) UPS Topology
• UPS Parallel Expansion
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• LCD Status Display
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
• ECO Mode
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability

DESCRIPTION

• The CyberPower Online S Smart App UPS System – 10,000VA is a high-performance, double-conversion uninterruptible power supply designed to provide reliable, pure sine wave power for critical IT infrastructure. Ideal for enterprise installations, corporate servers, storage devices, and VoIP systems, this UPS ensures continuous power protection and efficient energy management.
• CyberPower Systems Online S 10000VA/9000W Rack UPS - 12V/7AH*20 - Hardwire Terminal Block - USB & Serial Port & SNMP Slot (optional RMCARD205) - 2 Yrs Adv. Replacement WTY - Incl Rail kit

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 96%
• Parallel Expansion (Max. Units): 4
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 110 - 276
• Adjustable Voltage Range ( Vac ): 0-80% Load for 110 - 276 Vac | 0-100% Load for 176 - 276 Vac
• Input Frequency ( Hz ): 50 ± 5 | 60 ± 6
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 45.5
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block
• Output Capacity (VA): 10000
• Output Capacity (Watts): 9000
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%
• Output Voltage Setting: Configurable
• On Battery Frequency ( Hz ): 50 ± 0.1% | 60 ± 0.1%
• Output Frequency Setting: Configurable
• Power Factor: 0.9
• ECO Mode Voltage Tolerance: ± 10 %
• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
• Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
• Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec
• Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?2%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass | Manual Bypass
• Typical Recharge Time ( Hours ): 7
• Maximum Charging Current ( A ): 4
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Battery Type: Sealed Lead-acid
• Compatible Extended Battery Module (EBM): BPSE240V75ART3UOA
• Max. EBM Quantity ( pcs ): 15
• Surge Suppression ( Joules ): 445
• EMI/RFI Filtration: Yes
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
• LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault
• HID Compliant USB Port(s): 1
• Dry Contact (with Relay): Optional
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Installed Rack Height ( U ): 6
• Certification: CE
• RoHS: Yes
• Product Warranty: 2 Years

Features:

• Online (Double Conversion) UPS Topology
• UPS Parallel Expansion
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• LCD Status Display
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
• ECO Mode
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability
