Cyberpower PDU24004 Metered ATS Power Distribution Unit - 10 Amp

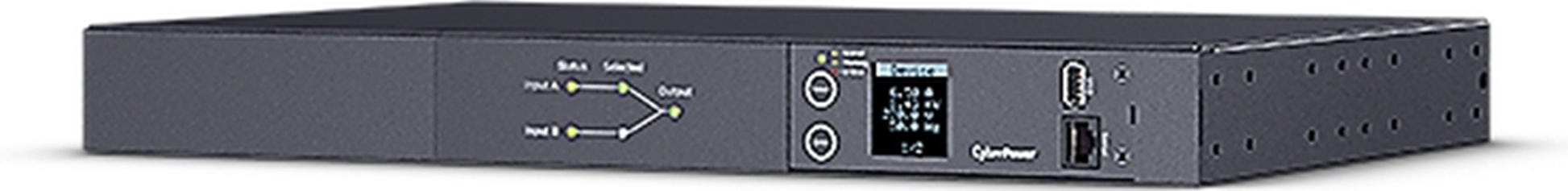

The CyberPower PDU24004 Metered ATS Power Distribution Unit is a 1U rackmount PDU designed to provide reliable power distribution and redundancy for critical IT equipment. It features an Automatic Transfer Switch (ATS) that allows connected devices with single power supplies to seamlessly switch between two independent power sources, ensuring continuous operation during power interruptions or fluctuations. The unit includes 12 IEC C13 outlets, each capable of delivering 200–240V AC power, and is equipped with dual IEC C14 power cords for connection to separate power sources. A multifunction LCD display provides real-time monitoring of current draw, while LED indicators show the status of each power source. The PDU24004 also offers features like firmware upgradeability, cord retention brackets, and a durable metal housing suitable for demanding environments.

• Real-time Local Monitoring
• Quick Transfer Time (Total < 10 ms)
• Digital Real-time Load Display
• Hot-swappable LCD Design
• Firmware Upgrade via USB
• Adjustable Mounting Brackets
• IEC Receptacle Locking
• Dual Inputs
• Industrial-grade Metal Housing
• User Configurable Color LCD
• LED Status Indicator
• User-upgradeable Firmware
• Cord Retention Tray

DESCRIPTION

The CyberPower PDU24004 Metered ATS Power Distribution Unit is a 1U rackmount PDU designed to provide reliable power distribution and redundancy for critical IT equipment. It features an Automatic Transfer Switch (ATS) that allows connected devices with single power supplies to seamlessly switch between two independent power sources, ensuring continuous operation during power interruptions or fluctuations. The unit includes 12 IEC C13 outlets, each capable of delivering 200–240V AC power, and is equipped with dual IEC C14 power cords for connection to separate power sources. A multifunction LCD display provides real-time monitoring of current draw, while LED indicators show the status of each power source. The PDU24004 also offers features like firmware upgradeability, cord retention brackets, and a durable metal housing suitable for demanding environments.

Specifications:

• Phase: Single Phase
• Dual Power Inputs: Yes
• Nominal Input Voltage ( Vac ): 200 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 12 (UL) | 10 (CE)
• Overload Protection: Circuit Breaker
• Input Connector Type: IEC C14 x 2
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Outlets - # of Bank(s): 1
• Outlet(s) - Total: 12
• Outlet(s) - Rear: 12
• Outlet Type: IEC C13 x 12
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Source Status | Load
• Connectivity Port: RJ45 (for Serial)
• User-upgradeable Firmware: Yes
• Installed Rack Height (U): 1
• Form Factor: 1U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 1 Set
• Dimensions: 433 x 44 x 215mm
• Weight: 3.5kg
• Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS

Features:

• Real-time Local Monitoring
• Quick Transfer Time (Total < 10 ms)
• Digital Real-time Load Display
• Hot-swappable LCD Design
• Firmware Upgrade via USB
• Adjustable Mounting Brackets
• IEC Receptacle Locking
• Dual Inputs
• Industrial-grade Metal Housing
• User Configurable Color LCD
• LED Status Indicator
• User-upgradeable Firmware
• Cord Retention Tray

What's in the box?

• 1 x PDU24004
• 1 x User Manual
• 1 x Cord Retention Tray
• 1 x Mounting Brackets
• 1 x Cable Ties
• 1 x Screw Kit
• 1 x Power Cord
• 1 x Serial Cable
