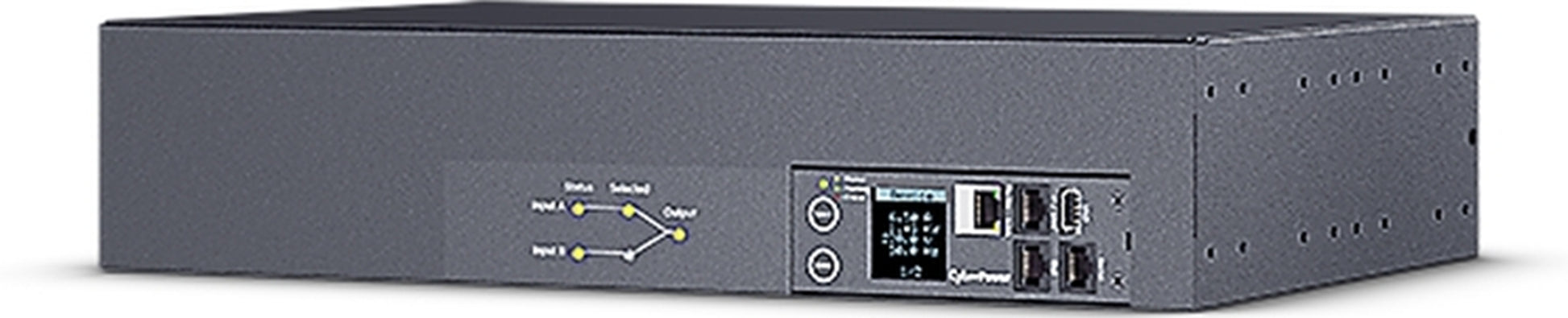

Cyberpower PDU44302 Switched ATS Power Distribution Unit - 32 Amp

​The CyberPower PDU44302 is a 32A single-phase Switched Automatic Transfer Switch (ATS) Power Distribution Unit (PDU) designed for high-density IT environments. It features 18 outlets—16 IEC C13 and 2 IEC C19—arranged in two banks, each protected by a 20A circuit breaker. The PDU supports dual IEC 60309 32A inputs, providing redundancy for single-corded devices. In the event of a power source failure, it automatically switches to the secondary source within 10 milliseconds to ensure continuous operation. Real-time local and remote monitoring is facilitated through a hot-swappable LCD module, which displays input voltage, current, power consumption, and network information. The PDU also supports remote individual outlet control, outlet sequencing, and event notifications via email, SMS, or SNMP traps. Additional features include environmental sensor support, user-upgradeable firmware, and compatibility with PowerPanel® Power Management Software for comprehensive monitoring and management. Housed in a durable 2U steel enclosure, it comes with adjustable mounting brackets, a cord retention tray, and is certified with CE, FCC Class A, UL62368, and RoHS standards

CP Switched ATS 32Amp

SPECIFICATIONS

• Phase: Single Phase
• Dual Power Inputs: Yes
• Nominal Input Voltage ( Vac ): 200 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 32
• Input Connector Type: IEC 60309 32A x 2
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Overload Protection: Circuit Breaker
• Over Current Protection (Each Bank) ( A ): 20
• Outlets - # of Bank(s): 2
• Outlet(s) - Total: 18
• Outlet(s) - Rear: 18
• Outlet Type: IEC C19 x 2 | IEC C13 x 16
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
• A-type USB Port: Yes
• Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
• Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
• Authentication: RADIUS | LDAP | LDAPS | Windows AD
• Installed Rack Height (U): 2
• Form Factor: 2U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 1 Set
• Dimensions: 433 x 88 x 215mm
• Weight: 7.8kg
• Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
