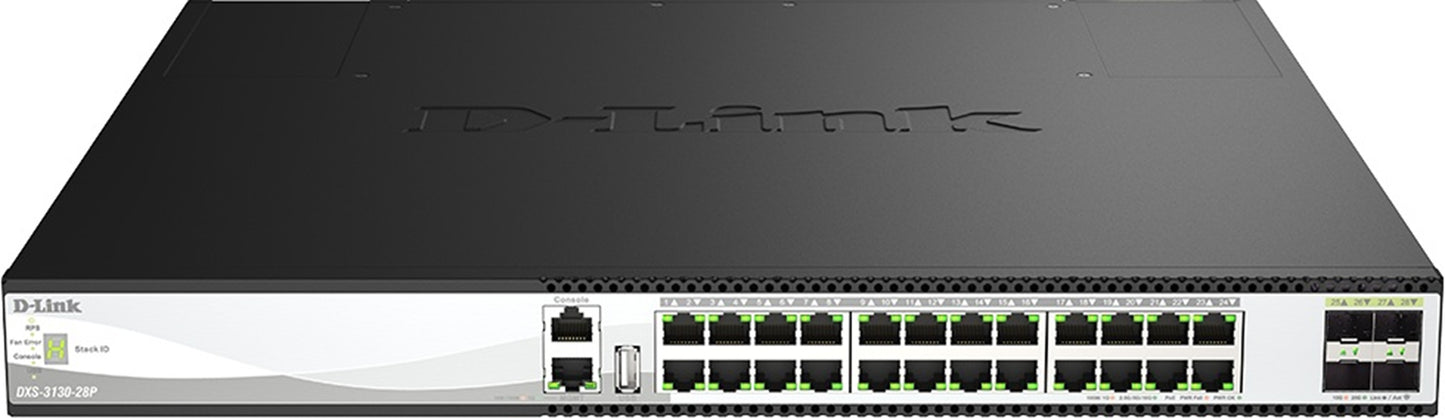

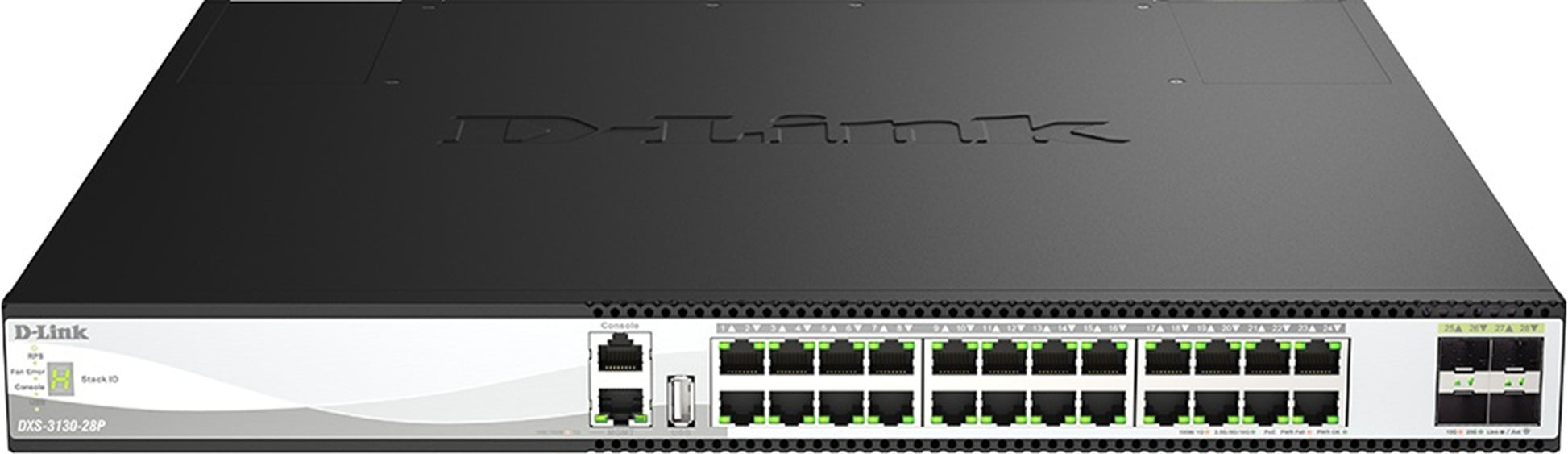

D-Link 28-Port Stackable 10 Gigabit PoE++ Layer 3 Switch with 24 Multi-Gigabit 10G PoE++ ports and 4 25G SFP28 ports DXS-3130-28P

The D-Link DXS-3130-28P is a high-performance 28-port Layer 3 stackable managed switch, designed for enterprise and metro Ethernet networks requiring robust PoE capabilities and high-speed connectivity.​ It features 24 multi-gigabit 10GBASE-T PoE++ ports, supporting IEEE 802.3af/at/bt standards, delivering up to 60W per port. With a default PoE power budget of 790W, expandable to 1440W with dual power supplies, it efficiently powers devices like Wi-Fi 6/6E access points, IP cameras, and VoIP phones.

• 24 x 100M/1/2.5/5/10GBASE-T PoE++ ports
• 4 x 10/25G SFP28 uplink ports
• Physical stacking up to 9 units
• PoE budget 790W (1440W with RPS DPS-PWR1200AC)
• IEEE 802.3bt PoE++ up to 60 Watts
• Perpetual PoE and Fast PoE support
• Advanced Layer 2 and Layer 3 features
• 6 KV surge protection

DESCRIPTION

The D-Link DXS-3130-28P is a high-performance 28-port Layer 3 stackable managed switch, designed for enterprise and metro Ethernet networks requiring robust PoE capabilities and high-speed connectivity.​

It features 24 multi-gigabit 10GBASE-T PoE++ ports, supporting IEEE 802.3af/at/bt standards, delivering up to 60W per port. With a default PoE power budget of 790W, expandable to 1440W with dual power supplies, it efficiently powers devices like Wi-Fi 6/6E access points, IP cameras, and VoIP phones.

• 24 x 100M/1/2.5/5/10GBASE-T PoE++ ports
• 4 x 10/25G SFP28 uplink ports
• Physical stacking up to 9 units
• PoE budget 790W (1440W with RPS DPS-PWR1200AC)
• IEEE 802.3bt PoE++ up to 60 Watts
• Perpetual PoE and Fast PoE support
• Advanced Layer 2 and Layer 3 features
• 6 KV surge protection

Accelerate your network with Multi-Gigabit Ethernet.

• With twenty four 1G/2.5G/5G/10GBASE-T ports and four 10G/25G SFP28 ports, up to 680Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DXS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

World-class reliability.

• Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.
• Four 25G SFP28 uplink ports, physical stacking for redundancy, and built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional redundant power supply to ensure maximum uptime.

Comprehensive security.

• Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
• IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Electrical surge protection.

• Featuring built-in 6 kV surge protection on all Multi-Gigabit Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.

SPECIFICATIONS

• 802.1X Access Control: Yes
• Guest VLAN: Yes
• IP Interfaces: Yes
• Layer 3 Switching: Yes
• Redundant PSU: DPS-PWR1200AC
• Routing Table Size:16000
• Stacking:Physical and Virtual
• Stacking Capacity: Physical (9), Virtual (32)
• Number of Ports: 24 - 32
• PoE Type Required: PoE++|Extended PoE Budget
• Type of Port Required: Gigabit Copper|10 Gigabit Copper|10 Gigabit Fibre|25 Gigabit SFP28|2.5G Multi-Gigabit|5G Multi-Gigabit
• Redundant Power Supply: Yes
• Stacking Bandwidth: 200 Gbps
• Switch Type: Layer 3
• Switch Series:DGS-3130 Series
• 10 Gig ports: Yes
• 10GBase-T ports: 24
• Layer: Layer 3
• SFP+ ports: 4
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size) :440 x 470 x 44 mm
• Energy Saving Technology : EEE Compliant|D-Link Green|RoHS 6 Compliant
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame: 12K bytes
• Link Aggregation: Yes
• PoE Budget: 790 Watts (1440 w RPS)
• PoE ports: 24 Ports
• QoS: Yes
• 19" Rack Mountable: Yes
• Warranty:Limited Lifetime
• SFP ports: 4 Ports (Combo)
• SNMP: Yes
• Spanning Tree Protocol:Yes
• Switching Capacity:680 Gbps
• 1000Base-T ports: 24 Ports
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes
