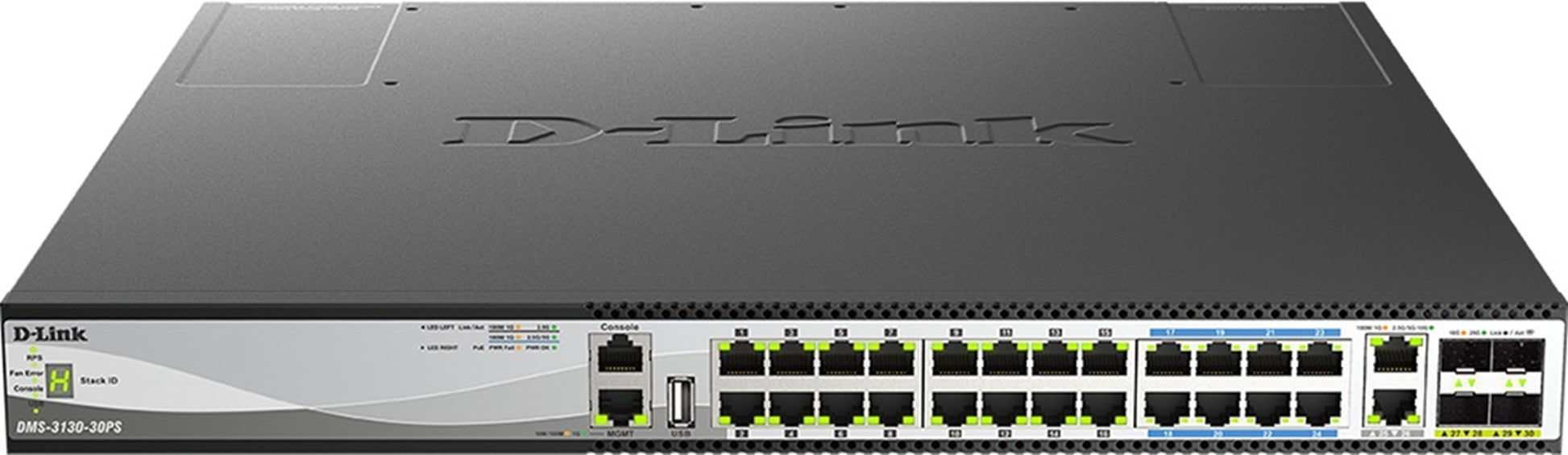

D-Link 30-Port Stackable Multi-Gigabit PoE++ Layer 3 Switch with 16 2.5G PoE+ ports, 8 5G PoE++ ports, 2 10GBASE-T and 4 25G SFP28 ports DMS-3130-30P

​The D-Link DMS-3130-30PS is a high-performance 30-port Layer 3 stackable multi-gigabit managed PoE switch, designed to meet the demands of modern enterprise and metro Ethernet networks. It features 16 2.5GBASE-T PoE+ ports and 8 5GBASE-T PoE++ ports, delivering both data and power to devices like Wi-Fi 6/6E access points, smart lighting, and industrial automation equipment. Additionally, it includes 2 10GBASE-T ports and 4 25G SFP28 uplink ports, providing high-speed connectivity for uplinks and stacking. With a robust PoE budget of 740W, expandable to 960W with dual power supplies, it supports numerous power-intensive devices. The switch offers advanced Layer 2 and Layer 3 features, including static routing, RIP/RIPng, and OSPFv2/v3, facilitating efficient network traffic management. Its intelligent fan design ensures optimal operating temperatures, and built-in 6 kV surge protection on all 2.5G/5G Ethernet access ports safeguards against electrical surges, enhancing network reliability. The DMS-3130-30PS supports physical stacking of up to 9 units, allowing for scalable network expansion, making it an ideal solution for organizations seeking high performance, scalability, and PoE capabilities in their network infrastructure.

• 16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
• 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 uplink ports
• Physical stacking up to 9 units
• PoE budget 740W (960W with RPS DPS-PWR740AC)
• IEEE 802.3bt PoE++ up to 60 Watts
• Perpetual PoE and Fast PoE support
• Advanced Layer 2 and Layer 3 features
• 6 KV surge protection

DESCRIPTION

​The D-Link DMS-3130-30PS is a high-performance 30-port Layer 3 stackable multi-gigabit managed PoE switch, designed to meet the demands of modern enterprise and metro Ethernet networks. It features 16 2.5GBASE-T PoE+ ports and 8 5GBASE-T PoE++ ports, delivering both data and power to devices like Wi-Fi 6/6E access points, smart lighting, and industrial automation equipment. Additionally, it includes 2 10GBASE-T ports and 4 25G SFP28 uplink ports, providing high-speed connectivity for uplinks and stacking. With a robust PoE budget of 740W, expandable to 960W with dual power supplies, it supports numerous power-intensive devices. The switch offers advanced Layer 2 and Layer 3 features, including static routing, RIP/RIPng, and OSPFv2/v3, facilitating efficient network traffic management. Its intelligent fan design ensures optimal operating temperatures, and built-in 6 kV surge protection on all 2.5G/5G Ethernet access ports safeguards against electrical surges, enhancing network reliability. The DMS-3130-30PS supports physical stacking of up to 9 units, allowing for scalable network expansion, making it an ideal solution for organizations seeking high performance, scalability, and PoE capabilities in their network infrastructure.

• 16 x 100M/1/2.5GBASE-T PoE+ ports + 8 x 100M/1/2.5/5GBASE-T PoE++ ports
• 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 uplink ports
• Physical stacking up to 9 units
• PoE budget 740W (960W with RPS DPS-PWR740AC)
• IEEE 802.3bt PoE++ up to 60 Watts
• Perpetual PoE and Fast PoE support
• Advanced Layer 2 and Layer 3 features
• 6 KV surge protection

Accelerate your network with Multi-Gigabit Ethernet.

• With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

World-class reliability.

• Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.
• Four 25G SFP28 uplink ports, physical stacking for redundancy, and built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional redundant power supply to ensure maximum uptime. DMS-3130-30PS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.

Comprehensive security.

• Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
• IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Electrical surge protection.

• Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.

Easy Access Control policies

• They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

SPECIFICATIONS

• 802.1X Access Control: Yes
• Guest VLAN: Yes
• IP Interfaces: Yes
• Layer 3 Switching: Yes
• Redundant PSU: DPS-PWR740AC
• Routing Table Size: 1024
• Stacking: Physical and Virtual
• Stacking Capacity: Physical (9), Virtual (32)
• Number of Ports: 24 - 32
• PoE Type Required: PoE++|Extended PoE Budget
• Type of Port Required: Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre|25 Gigabit SFP28|2.5G Multi-Gigabit|5G Multi-Gigabit
• Redundant Power Supply: Yes
• Stacking Bandwidth: 200 Gbps
• Switch Type: Layer 3
• Switch Series: DGS-3130 Series
• 10 Gig ports: Yes
• 10GBase-T ports: 2
• Layer: Layer 3
• SFP+ ports: 4
• Cable Diagostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 440 x 470 x 44 mm
• Energy Saving Technology: EEE Compliant|D-Link Green|RoHS 6 Compliant
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame:12K bytes
• Link Aggregation: Yes
• PoE Budget: 740 Watts (960 w RPS)
• PoE ports: 24 Ports
• QoS: Yes
• 19" Rack Mountable: Yes
• Warranty: Limited Lifetime
• SFP ports: 4 Ports
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Switching Capacity:400 Gbps
• 1000Base-T ports: 24 Ports
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes
