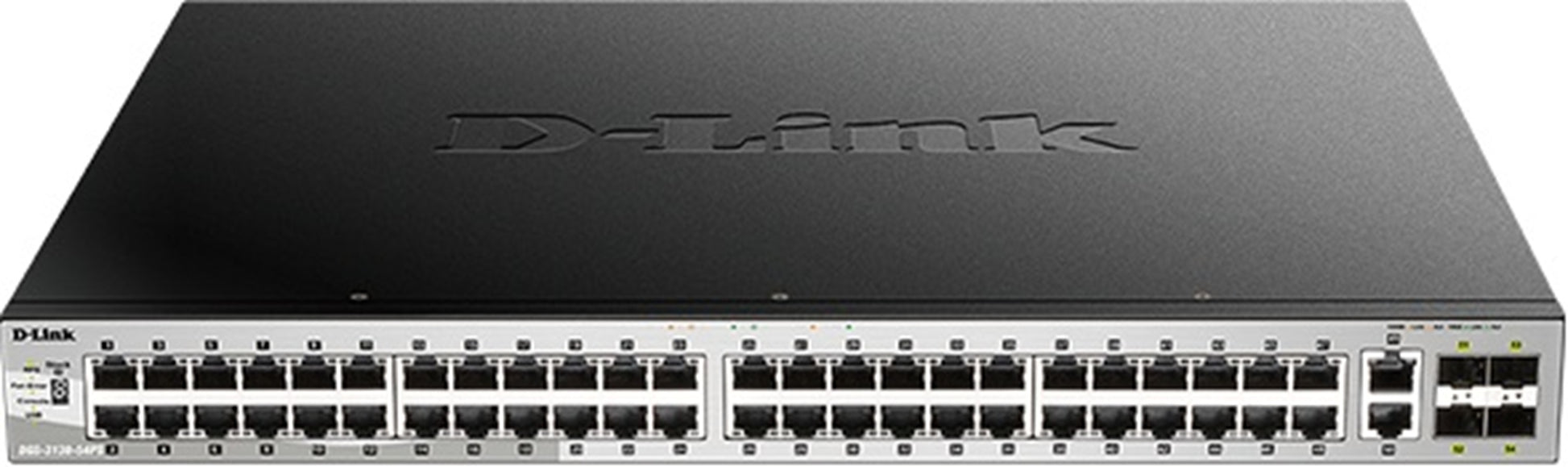

D-Link 54-Port Stackable Gigabit PoE Layer 3+ Switch with 6 10GbE ports DGS-3130-54P

The D-Link DGS-3130-54PS is a robust 54-port Lite Layer 3 stackable managed Gigabit PoE switch designed to enhance network scalability and reliability. It offers 48 10/100/1000BASE-T PoE ports, delivering both data and power to devices like IP cameras, VoIP phones, and wireless access points. Additionally, it includes 2 10GBASE-T ports and 4 10G SFP+ ports, providing high-speed uplink and stacking capabilities to meet growing bandwidth demands. With a PoE budget of 370W, expandable to 740W with an optional redundant power supply, it supports numerous power-intensive devices. The switch supports physical stacking of up to 9 units, allowing for flexible network expansion. Advanced Layer 2 and Layer 3 features, including static routing, RIP/RIPng, and OSPFv2/v3, facilitate efficient network traffic management. Built-in 6 kV surge protection on all Gigabit Ethernet ports safeguards against unexpected electrical surges, enhancing network reliability. The DGS-3130-54PS is an ideal solution for enterprise and metro Ethernet access networks requiring high performance, scalability, and PoE capabilities.

• 48 1000Base-T PoE ports with 2 10GBASE-T and 4 10G SFP+ ports
• 48 PoE/PoE+ ports with 370W budget, upgradable to 740W
• Six 10Gb ports: 2 copper and 4 SFP+ for stacking and uplinks
• 216 Gbps switching capacity
• Stackable up to 9 switches with 80Gb stacking bandwidth
• Layer 3 switch with essential Layer 3 features included
• 6 kV surge protection on all copper ports
• Comprehensive security features
• Redundant Power Supply support

DESCRIPTION

​The D-Link DGS-3130-54PS is a robust 54-port Lite Layer 3 stackable managed Gigabit PoE switch designed to enhance network scalability and reliability. It offers 48 10/100/1000BASE-T PoE ports, delivering both data and power to devices like IP cameras, VoIP phones, and wireless access points. Additionally, it includes 2 10GBASE-T ports and 4 10G SFP+ ports, providing high-speed uplink and stacking capabilities to meet growing bandwidth demands. With a PoE budget of 370W, expandable to 740W with an optional redundant power supply, it supports numerous power-intensive devices. The switch supports physical stacking of up to 9 units, allowing for flexible network expansion. Advanced Layer 2 and Layer 3 features, including static routing, RIP/RIPng, and OSPFv2/v3, facilitate efficient network traffic management. Built-in 6 kV surge protection on all Gigabit Ethernet ports safeguards against unexpected electrical surges, enhancing network reliability. The DGS-3130-54PS is an ideal solution for enterprise and metro Ethernet access networks requiring high performance, scalability, and PoE capabilities.

• 48 1000Base-T PoE ports with 2 10GBASE-T and 4 10G SFP+ ports
• 48 PoE/PoE+ ports with 370W budget, upgradable to 740W
• Six 10Gb ports: 2 copper and 4 SFP+ for stacking and uplinks
• 216 Gbps switching capacity
• Stackable up to 9 switches with 80Gb stacking bandwidth
• Layer 3 switch with essential Layer 3 features included
• 6 kV surge protection on all copper ports
• Comprehensive security features
• Redundant Power Supply support

Adaptable, Bottleneck-Free 10G Business Connectivity

• The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.
• With network bottlenecks on the rise, the DGS-3130 Series’ six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.

Power Even More Devices

• The DGS-3130-30PS model features Power over Ethernet, which compatible devices to be powered by the switch through a standard Ethernet cable. It supports the IEEEE 802.3at PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. The 370W PoE power budget, which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allow the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

Weather the Storm

• The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.

Highly Available. Highly Flexible.

• The D-Link DGS-3130 Lite Layer 3 Stackable Managed Switches are a Gigabit access layer solution specifically designed to connect end-users in a secure enterprise or metro Ethernet access network.
• The switches support high bandwidth, long distance stacking, with physical stacking of up to 9 units over fiber, increasing available Gigabit ports on demand. This makes them ideal for network administrators who demand agile expansion functionality without having to sacrifice network reliability.

Slash Your Network Downtime

• The DGS-3130 Series gives enterprises and organisations a highly reliable network, allowing for maximum business continuity. It has built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms.
• Along with a host of essential network reliability features, all switches in the series support an external redundant power supply to ensure your operations continue unimpeded.

Comprehensive Security

• The DGS-3130 Series gives your network the protection it deserves with leading-edge security features that handle threats effectively. With built-in IP-MAC-Port Binding, the switches allow administrators to enhance user access control.
• Other advanced features like DHCP Snooping let the switches automatically learn and save IP/MAC pairs to the IMPB white list.

Powerful and Unified

• Powerful L2 and L3 features come together in an integrated software image. This allows the switches to satisfy a wide range of requirements for different applications – perfect for building the most solid and robust networks.

Manage Network Traffic in a Whole New Way

• The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to prioritise critical network services such as VoIP, video conferences, IPTV, and IP surveillance. With robust features including Traffic Shaping, L2 Multicast, Host-based IGMP/MLD Snooping and ISM VLAN, administrators get a whole new way to manage their traffic that fits their needs.

SPECIFICATIONS

• 802.1X Access Control: Yes
• Guest VLAN: Yes
• IP Interfaces: Yes
• Layer 3 Switching: Yes
• Redundant PSU: DPS-700
• Routing Table Size: 512
• Stacking: Physical and Virtual
• Stacking Capacity: Physical (9), Virtual (32)
• Number of Ports: 48 - 52
• PoE Type Required: PoE|PoE+|Extended PoE Budget
• Type of Port Required: Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre
• Redundant Power Supply Option: Yes
• Stacking Bandwidth: 80 Gbps
• Switch Type: Layer 3 Lite
• Switch Series: DGS-3130 Series
• 10 Gig ports: Yes
• 10GBase-T ports: 2
• Layer: Layer 3
• SFP+ ports: 4
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 440 x 350 x 44 mm
• Energy Saving Technology: EEE Compliant|D-Link Green
• Fans: 4
• IGMP Snooping: Yes
• Jumbo Frame: 9K
• Link Aggregation: Yes
• PoE Budget: 370 Watts (740 w RPS)
• PoE ports: 48 Ports
• QoS: Yes
• 19" Rack Mountable: Yes
• Warranty: Limited Lifetime
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Switching Capacity: 216 Gbps
• 1000Base-T ports: 48 Ports
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes
