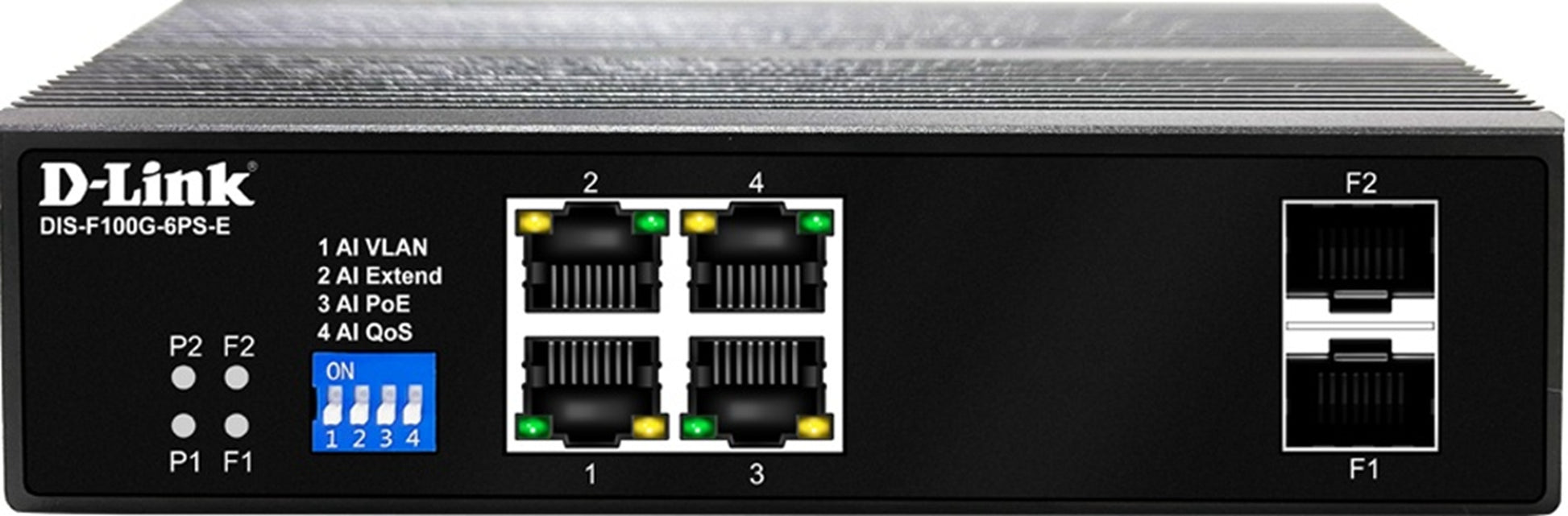

D-Link 6-Port Gigabit Industrial PoE+ Switch with 4 PoE ports and 2 SFP ports DIS-F100G-6PS-E

The D-Link DIS-F100G-6PS-E is a rugged, industrial-grade 6-Port Gigabit Unmanaged PoE+ Switch designed for reliable performance in harsh environments. It features 4 x 1000BASE-T PoE+ ports and 2 x SFP ports, delivering a total PoE budget of 120W, with support for Long Reach PoE up to 250 meters . Housed in an IP40-rated metal casing, the switch operates in extreme temperatures ranging from -40°C to +75°C and offers 6kV surge protection on copper ports. Its fanless, DIN rail-mountable design ensures silent operation and easy installation, making it ideal for industrial and outdoor surveillance applications.​

• 4 1000BASE-T PoE+ ports and 2 SFP ports
• Long Reach PoE support - up to 250m
• PoE budget is 120 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies

DESCRIPTION

The D-Link DIS-F100G-6PS-E is a rugged, industrial-grade 6-Port Gigabit Unmanaged PoE+ Switch designed for reliable performance in harsh environments. It features 4 x 1000BASE-T PoE+ ports and 2 x SFP ports, delivering a total PoE budget of 120W, with support for Long Reach PoE up to 250 meters . Housed in an IP40-rated metal casing, the switch operates in extreme temperatures ranging from -40°C to +75°C and offers 6kV surge protection on copper ports. Its fanless, DIN rail-mountable design ensures silent operation and easy installation, making it ideal for industrial and outdoor surveillance applications.​

• 4 1000BASE-T PoE+ ports and 2 SFP ports
• Long Reach PoE support - up to 250m
• PoE budget is 120 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies

The DIS-F100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T PoE+ ports and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-F100G Series are Plug-and-Play, allowing for effortless and swift deployment.

Features

Unmanaged Plug and Play

• Plug in and go. Effortless deployment.

Shortcut Buttons

• Quick configuration with DIP Switches: VLAN, Long Reach PoE, Watchdog, QoS

Gigabit Connectivity with PoE and SFP

• Designed with 4 x Gigabit PoE+ ports and 2 x SFP slot to suit a range of network layouts.

PoE Support

• With its 120 W PoE power budget, it’s been designed to supply data and PoE power.

Fast Deployment

• For instant installation it features a snap-to-DIN-rail clip.

Officially Certified

• Certifications for vibration, shock, free-fall, and electromagnetic compatibility.

Withstands Extreme Temperatures

• Operates in harsh environments with temperatures from -40°C to +75°C.

Strong Build

• The tough housing has been created to keep your network protected and reliably rugged.

Fanless Design

• With no moving parts inside to reduce downtime and maintenance call outs.

Discrete Size

• Small but mighty. To make the most of cabinet space, it measures: 238 x 197 x 59 mm.

Durable, Reliable, and Efficient

• The DIS-F100G Series switches are housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-F100G Series can also be mounted on a DIN rail. In addition, the DIS-F100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Power over Ethernet Support

• The PoE-ready DIS-F100G-6PS-E features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. Additionally the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

SPECIFICATIONS

• PoE Budget: 120 Watts
• Switching Capacity:12 Gbps
• DIN Rail Mountable: Yes
• Fans: Fanless
• Metal Housing: Yes
• MAC Address Table Size: 8K
• Management Options: Unmanaged
• PoE Type Required: PoE+
• PoE Ports: 4
• PoE+ (802.3at) Supported: Yes
• Power Input: 48 to 56V DC terminal block dual input
• SFP Ports: 2
• Operating Temperature:From -40° to 75°C
• 1000BASE-T Ports:4
• Switch Series:DIS Industrial Series
• Surge Protection: 6 kV Surge Protection
