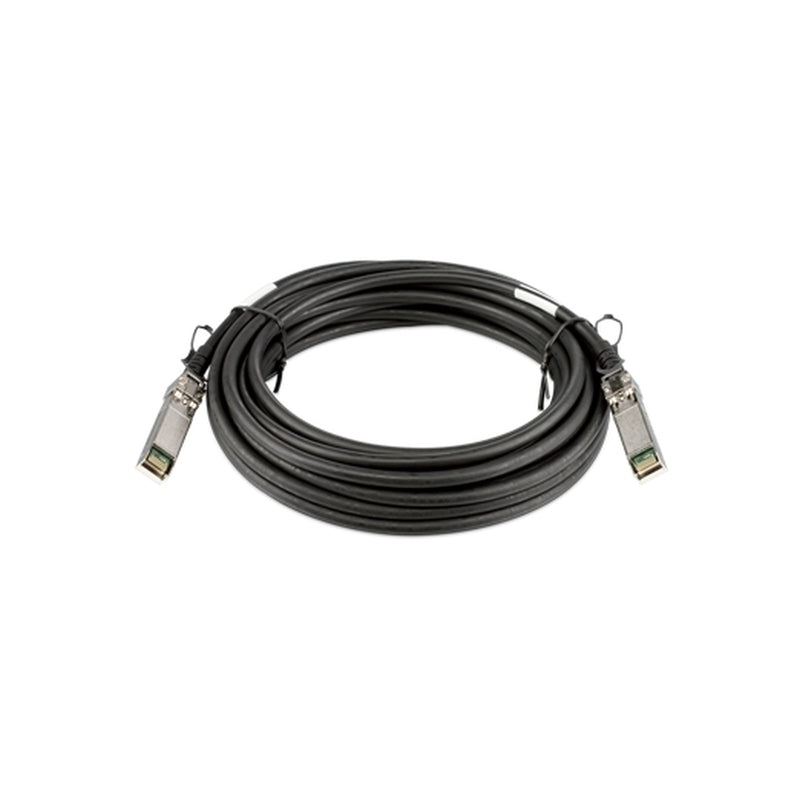

D-Link 7m Cable DEM-CB700
- Sku: DLDEMCB700S
- Vendor: D-Link
- Type: Technology
Our Price:
D-Link DEM-CB700S Compatible 10G SFP+ 7m Passive Direct Attach Copper Twinax Cable (DAC)
D-Link DEM-CB700S is a high performance and cost effective SFP+ direct attach copper cable (also known as Twinax Cable or DAC), supporting the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE).
This product is designed for short reach links in high-speed interconnecting networking applications, such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets.
It is programmed to be compatible with a wide range of D-Link network equipment for in-rack connections, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. It’s proven to be a cost-effective alternative to high-cost D-Link DEM-CB700S.
Features
• Support for multi-gigabit data rates up to 10.5Gbps
• Support for 1x, 2x, 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification
| OEM Part Number | DEM-CB700S | Optcore Part Number | SFP-10G-DAC-P7M-DLK |
| Form Factor | SFP+ DAC Cable | Data Rate | 10.5Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 7 m | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 24AWG |
| Minimum cable bend radius | 35 mm | Cable Jacket Type | PVC |
| Connector | SFP+/SFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.55 kg |
| Application | Storage Area Networks( SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure |
Compliance | SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS |
