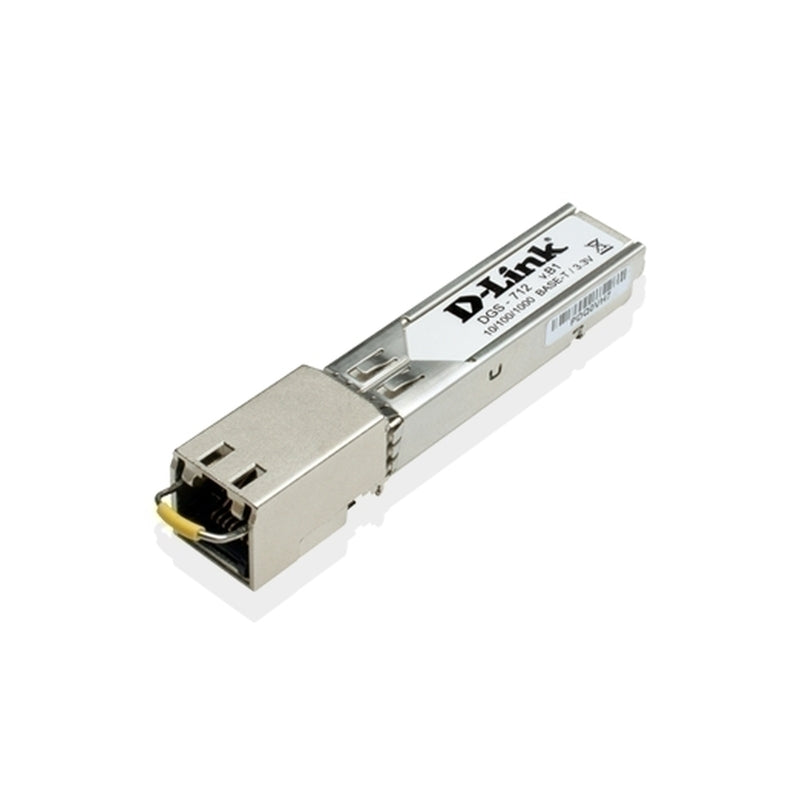

D-Link Transceiver DGS-712

The D-Link DGS-712-G Copper Small Form Pluggable (SFP) transceivers is high-performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cables. The module supports 1000Mbps full duplex datalinks with 5-level Pulse Amplitude Modulation (PAM) signals.

• Built-in Marvell Chip, Max. Power Consumption 1W
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Terminated RJ45 Connectors Allow 1G Bandwidth over Existing Copper Infrastructure
• FS BOX - Support Real-time Configuration
• Hot Pluggable SFP MSA Compliant
• Compliant to IEEE Std 802.3 and 802.3ab Gigabit Ethernet
• RoHS Compliant

Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications

The D-Link DGS-712-G Copper Small Form Pluggable (SFP) transceivers are high-performance, cost-effective module compliant with the Gigabit Ethernet and1000- BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cables. The module supports 1000Mbps full duplex datalinks with 5-level Pulse Amplitude Modulation (PAM) signals.
All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial Id information compliant with SFP MSA, which can be accessed with address of AOh via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address AOh.

Features

Convert an SFP Fiber Interface into a 1000Base-T Copper Uplink

Hot Pluggable

IEEE 802.3ab 1000Base-T Compliant

Up to 1.25Gbps Bi-directional Data when Combined with an Additional DGS-712

Specs

Manufacturer D-Link Systems Inc.

Condition New

Standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Transceiver Type SFP (Small Form Pluggable)

Connector RJ-45

Operating Temperature 32° to 185° F (0° to 85° C)

Storage Temperature -40° to 185° F (-40° to 85° C)
