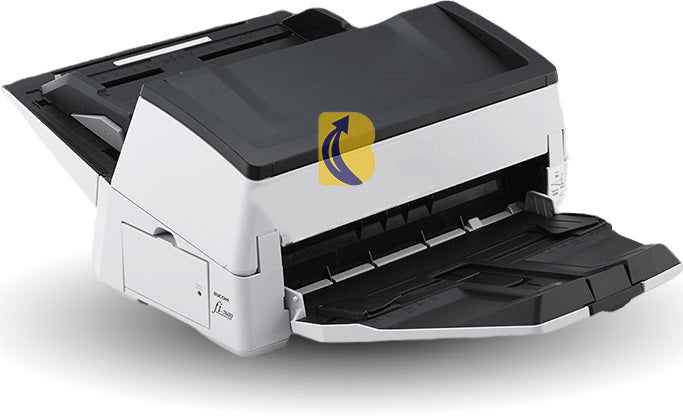

Fujitsu FI-7600 A3 Document Scanner Duplex 100ppm, 300sht ADF, USB3.1

The fi-7600 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards envelopes, and long page documents can be scanned on this scanner.

• ADF (Automatic Document Feeder) / Manual Feed, Duplex
• Scanning Speed* (A4 Landscape)
• (Color*2/Grayscale*2/Monochrome*3)
• Simplex: 100 ppm (200/300 dpi)
• Duplex: 200 ipm (200/300 dpi)
• Scanning Speed*1 (A4 Portrait)
• (Color*2/Grayscale*2/Monochrome*3 )
• Simplex: 80 ppm (200/300 dpi)
• Duplex: 160 ipm (200/300 dpi)
• Image Sensor Type
• Color CCD x 2 (front x 1, back x 1)
• Light Source
• White LED Array x 4 (front x 2, back x 2)
• Optical Resolution: 600 dpi

Heavy-duty & flexible production scanner for professional use



The fi-7600 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards envelopes, and long page documents can be scanned on this scanner.



• Fast scanning — up to 100 ppm in color or monochrome, landscape
• Paper chute capacity up to 300 sheets
• Capable of handling various thicknesses and sizes
• Paper Protect function which protects against paper jams by detecting anomalies in sound (iSOP: Intelligent Sonic Paper Protection) and document length
• LCD panel for easy operation
• Independent Side Guides for easily aligning mixed size documents
• Comes with PaperStream IP and PaperStream Capture



SPECIFICATIONS

Scanning Speed
100 ppm / 200 ipm

Resolution - Optical
600 DPI

Simplex / Duplex
Duplex

ADF Capacity
300 sheets



Scanner Type

ADF (Automatic Document Feeder) / Manual Feed, Duplex

Scanning Speed*1 (A4 Landscape)
(Color*2/Grayscale*2/Monochrome*3) Simplex: 100 ppm (200/300 dpi)

Duplex:

200 ipm (200/300 dpi)

Scanning Speed* (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3 )

Simplex: 80 ppm (200/300 dpi)
Duplex: 160 ipm (200/300 dpi)

Image Sensor Type

Color CCD x 2 (front x 1, back x 1)
Light Source White LED Array x 4 (front x 2, back x 2)

Optical Resolution

600 dpi

Output Resolution*
(Color / Grayscale / Monochrome)

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*

Output Format

Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background Colors White / Black (selectable)
Document Size Maximum 304.8 x 431.8 mm (12 x 17 in.)

Minimum

50.8 x 69 mm (2 x 2.7 in.) (Portrait)
Long Page Scanning*6 5,588 mm (220 in.)

Paper Weight (Thickness)

Paper 20 to 413 g/m2 (5.3 to 110 lb)
Less than A8 size: 128 to 209 g/m2 (34 to 56 lb)
Plastic Card Up to 1.4 mm*7

ADF Capacity*

300 sheets (A4 80 g/m2 or Letter 20 lb)

Expected Daily Volume*

44,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Lag detection, Sound detection (iSOP)*10

Interface

USB 3.1 Gen 1 / USB 2.0 / USB 1.1

Power Requirements

AC 100 to 240 V ±10 %

Power Consumption

Operating Mode 64 W or less
Sleep Mode 1.7 W or less
Auto Standby (Off) Mode 0.3 W or less

Operating Environment

Temperature 5 to 35 °C (41 to 95 °F)

Relative Humidity

20 to 80% (non-condensing)

Environmental Compliance

ENERGY STAR®, RoHS

Dimensions* (W x D x H)

236 x 432 x 214 mm (9.3 x 17.0 x 8.4 in.)

Weight

11 kg (24 lb)

Supported Operating System

Windows® 11*12, Windows® 10*12, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012
Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*13, PaperStream Capture, PaperStream ClickScan*14, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*14, Scanner Central Admin Server
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Static threshold, Divide long page
