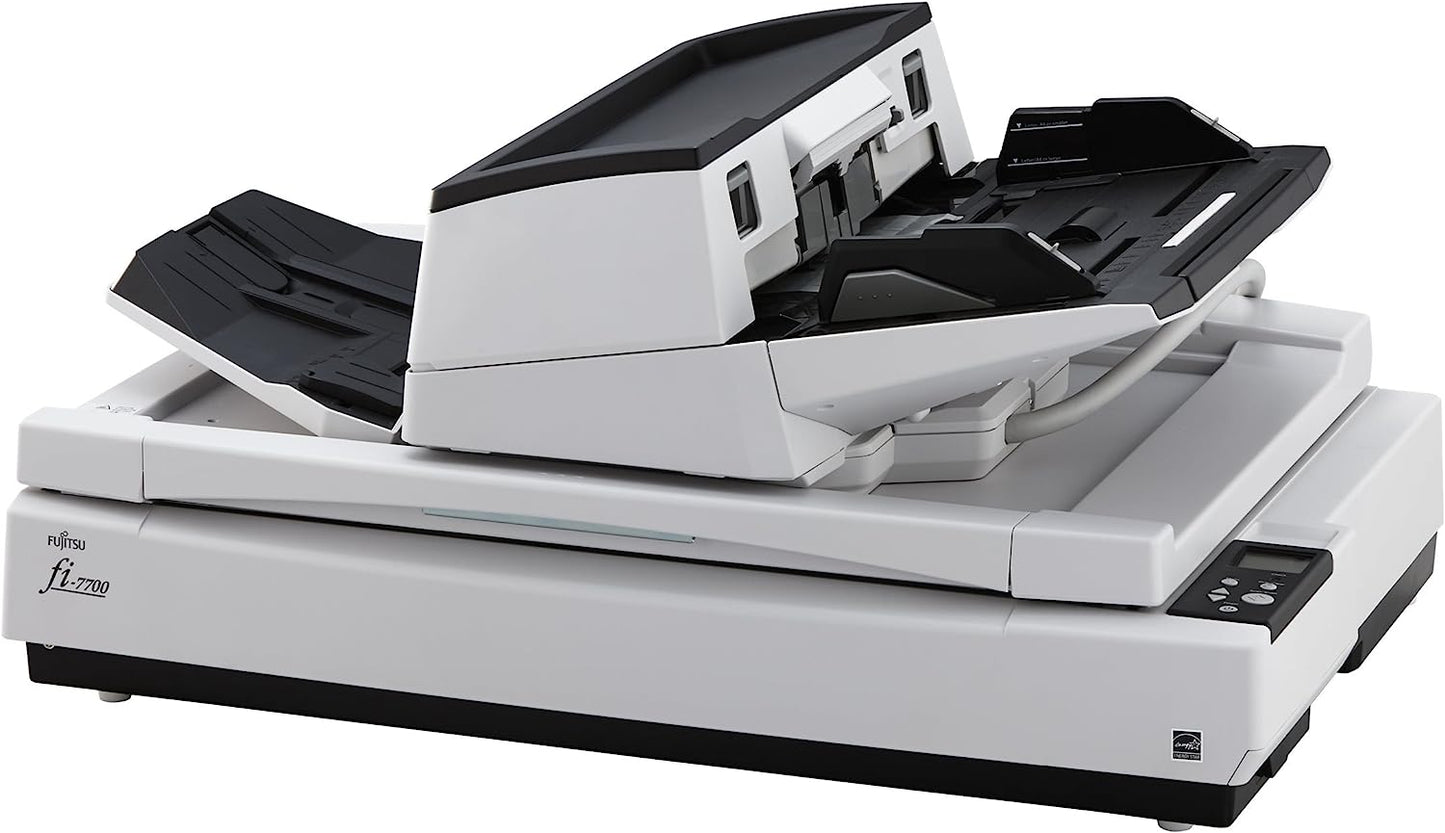

Fujitsu FI-7700 A3 Document Scanner Duplex 100PPM FB+300SHT ADF USB3.1

• ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex
• Scanning Speed*1 (A4 Landscape)
• (Color*2/Grayscale*2/Monochrome*3)
• ADF Simplex: 100 ppm (200/300 dpi)
• Duplex: 200 ipm (200/300 dpi)
• Flatbed: 0.6 seconds (200/300 dpi)
• Scanning Speed*1 (A4 Portrait)
• (Color*2/Grayscale*2/Monochrome*3)
• ADF: Simplex: 80 ppm (200/300 dpi)
• Duplex: 160 ipm (200/300 dpi)
• Flatbed: 0.9 seconds (200/300 dpi)
• Color CCD x 3 (front x 1, back x 1, Flatbed x 1)
• White LED Array x 6 (front x 2, back x 2, Flatbed x 2)
• Optical Resolution: 600 dpi

OVERVIEW

The fi-7700 achieves scanning speeds of 100 ppm/200 ipm (A4 landscape, color, 200/300 dpi), is capable of loading up to 300 sheets at a time and scanning up to as many as 44,000 sheets a day. With its high quality technologies and user-friendly design, the scanner is suitable for continuous high volume scanning. The scanner's ability to scan various documents such as thin paper, plastic cards, books, magazines, envelopes, and long page documents, boosts user productivity.

• Compact scanner equipped with both ADF and flatbed
• Straight paper path and Paper Picking Control function to ensure stable paper feeding
• Manual Feed Mode for handling various thicknesses and sizes
• Paper Protection function and Skew Reducer to protect important documents
• Flexible design with movable ADF and LCD panel for easy operation
• Independent Side Guides for easily aligning mixed size documents
• Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
• PaperStream Capture Pro available as an option

The fi-7700 scans documents at 100 ppm/200 ipm (A4 landscape 200/300 dpi) and improves work efficiency with its ability to scan a wide variety of business documents as well as capacity to load 300 sheets at a time.

Assistance for safe and reliable scanning

The straight paper path structure is designed to assure stable scanning regardless of document conditions and types. With Manual/Single mode, scan thick documents such as drawings folded in half, multi-layere receipts, and envelopes without specific operation. Minimize risk of document damage with stable paper feeding that Paper Protection function provides through its detection of anomalies in sound an monitoring of paper feed distance. Missing edges are also no longer a struggle with the scanner’s Skew Reducer mechanism.

Flexible and functional design to meet all user needs

The fi-7700 is equipped with an ADF that can slide to the right or left, as well as rotate 180 degrees, enabling easy document loading with ADF adjustment to suit workspace environments or physical conditions. Keep track of scanner operations such as document scanning settings, number of sheets scanned, as well as any existing error statuses, using the LCD operation panels. Load documents with ease and reduce your workload before and after scanning, with the scanner’s independent side guides helping you align edges of variously sized documents. You can now also scan thick or fragile documents with the document cover kept open, thanks to the Cover-Open Cropping function.

Advanced software for maximized efficiency

Bypass the inconvenience of making fine adjustments to OCR settings with the PaperStream IP scanner driver, supporting both TWAIN and ISIS. The software automatically converts scanned images into exceptionally clean images, supporting OCR accuracy even when scanning documents with background patterns or wrinkled and soiled documents. Seamlessly linked to PaperStream IP, PaperStream Capture effectively and efficiently feeds information into your organization workflow with its various batch scanning capture features. Automatically utilizing data extracted from barcodes and patch codes, the software also determines your preferred saving destinations and eliminates time allocated to routine tasks.

<iframe width="560" height="315" src="https://www.youtube.com/embed/sWV631gMa4g?si=7XHM0WL57wTdR7R2" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen></iframe>

SPECIFICATIONS

Scanner Type

ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex

Scanning Speed*1 (A4 Landscape)

(Color*2/Grayscale*2/Monochrome*3)

ADFSimplex: 100 ppm (200/300 dpi)

Duplex:

200 ipm (200/300 dpi)

Flatbed

0.6 seconds (200/300 dpi)

Scanning Speed*1 (A4 Portrait)

(Color*2/Grayscale*2/Monochrome*3)

ADFSimplex: 80 ppm (200/300 dpi)

Duplex:

160 ipm (200/300 dpi)

Flatbed

0.9 seconds (200/300 dpi)

Image Sensor Type

Color CCD x 3 (front x 1, back x 1, Flatbed x 1)

Light Source

White LED Array x 6 (front x 2, back x 2, Flatbed x 2)

Optical Resolution

600 dpi

Output Resolution*

(Color / Grayscale / Monochrome)

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*

Output FormatColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background ColorsADFWhite / Black (selectable)

Flatbed

White (or optional black)

Document Size (ADF)

Maximum

304.8 x 431.8 mm (12 x 17 in.)

Minimum

50.8 x 69 mm (2 x 2.7 in.) (Portrait)

Long Page Scanning*65,588 mm (220 in.)

Document Size (Flatbed)

Maximum: 304.8 x 457.2 mm (12 x 18 in.)

Paper Weight (Thickness)*

Paper: 20 to 413 g/m2 (5.3 to 110 lb)

Less than A8 size: 128 to 209 g/m2 (34 to 56 lb)

Plastic Card

Up to 1.4 mm

ADF Capacity

300 sheets (A4 80 g/m2 or Letter 20 lb)

Expected Daily Volume*10

44,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection

Paper Protection

Lag detection, Sound detection (iSOP)

Interface

USB 3.1 Gen 1 / USB 2.0 / USB 1.1

Power Requirements

AC 100 to 240 V ±10 %

Power Consumption

Operating Mode

64 W or less

Sleep Mode

1.7 W or less

Auto Standby (Off) Mode

0.3 W or less

Operating Environment

Temperature

5 to 35 °C (41 to 95 °F)

Relative Humidity

20 to 80% (non-condensing)

Environmental Compliance

ENERGY STAR®, RoHS

Dimensions*12 (W x D x H)

706 x 500 x 345 mm (27.8 x 19.7 x 13.6 in.)

Weight

35 kg (77 lb)

Supported Operating System

Windows® 11*13, Windows® 10*13, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012

Software / DriversPaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*14, PaperStream Capture, PaperStream ClickScan*15, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*15, Scanner Central Admin Server

Image Processing FunctionsMulti image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Static threshold, Divide long page
