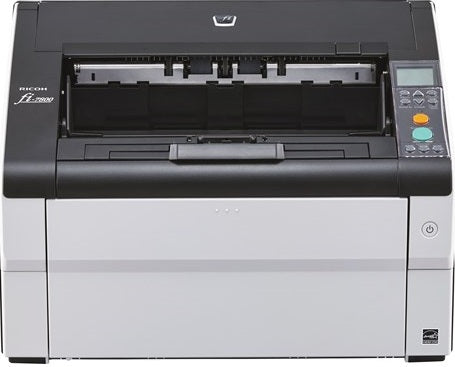

Fujitsu FI-7800 A3 DUP Twain Document Scanner 110ppm 12 month Onsite Warranty

The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.

• ADF (Automatic Document Feeder) / Manual Feed, Duplex
• Simplex: 110 ppm (200/300 dpi)
• Duplex: 220 ipm (200/300 dpi)
• Interface : USB 2.0 / USB 1.1
• AC 100 to 240 V ±10 %
• 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)
• 32 kg (70 lb) or less

DESCRIPTION

The fi-7800 achieves scanning speeds of 110 ppm/220 ipm (A4 landscape, color, 200/300 dpi), is capable of scanning up to as many as 100,000 sheets a day, and is highly optimized for centralized scanning.

The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.

Feature:

• Automatic Separation Control function and Skew Reducer to ensure stable feeding
• Paper Protect function to prevent documents from being damaged
• Stacking Control function and Elevator Stacker for easy paper collection from the stacker
• Manual Feed Mode to scan various types of documents
• Environment-friendly product certified with ENERGY STAR Version 3
• Low profile design with operation panel and LCD for comfortable scanning
• Cleaning Mode for easy maintenance
• LAN network capability certified for Silex Device Server users
• Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
• PaperStream Capture Pro available as an option

SPECIFICATIONS

Scanner Type

ADF (Automatic Document Feeder) / Manual Feed, Duplex

Scanning Speed* (A4 Landscape)(Color*2/Grayscale*2/Monochrome*3)

Simplex: 110 ppm (200/300 dpi)

Duplex: 220 ipm (200/300 dpi)

Scanning Speed* (A4 Portrait)(Color*2/Grayscale*2/Monochrome*3)

Simplex: 90 ppm (200/300 dpi)

Duplex: 180 ipm (200/300 dpi)

Image Sensor Type

Color

CCD x 2 (front x 1, back x 1)

Light Source

White LED Array x 4 (front x 2, back x 2)

Optical Resolution

600 dpi

Output Resolution*

4

(Color / Grayscale / Monochrome)50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5

Output FormatColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background ColorsWhite / Black (selectable)

Document Size

Maximum: 304.8 x 431.8 mm (12 x 17 in.)

Minimum: 52 x 74 mm (2 x 3 in.)

Long Page Scanning*65,588 mm (220 in.)

Paper Weight (Thickness)

A4 to A5 Size20 to 209 g/m² (5.4 to 56 lb)

Less than A5 Size / Over A4 Size41 to 209 g/m² (11 to 56 lb)

ADF Capacity*

500 sheets (A4 80 g/m² or Letter 20 lb)

Expected Daily Volume*8

100,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection

Paper Protection

Lag detection

Interface

USB 2.0 / USB 1.1

Power Requirements

AC 100 to 240 V ±10 %

Power Consumption

Operating Mode

200 W or less

Sleep Mode

3.2 W or less

Auto Standby (Off) Mode

Less than 0.3 W

Operating Environment

Temperature

5 to 35 °C (41 to 95 °F)

Relative Humidity

20 to 80% (Non-condensing)

Environmental Compliance

ENERGY STAR®, RoHS

Dimensions*9 (W x D x H)

460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)

Weight

32 kg (70 lb) or less

Supported Operating System

Windows® 11*10, Windows® 10*10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012

Software / DriversPaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*11, PaperStream Capture, PaperStream ClickScan*12, Software Operation Panel, Error Recovery Guide, Scanner Central Admin Server

Image Processing Functions

Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection
