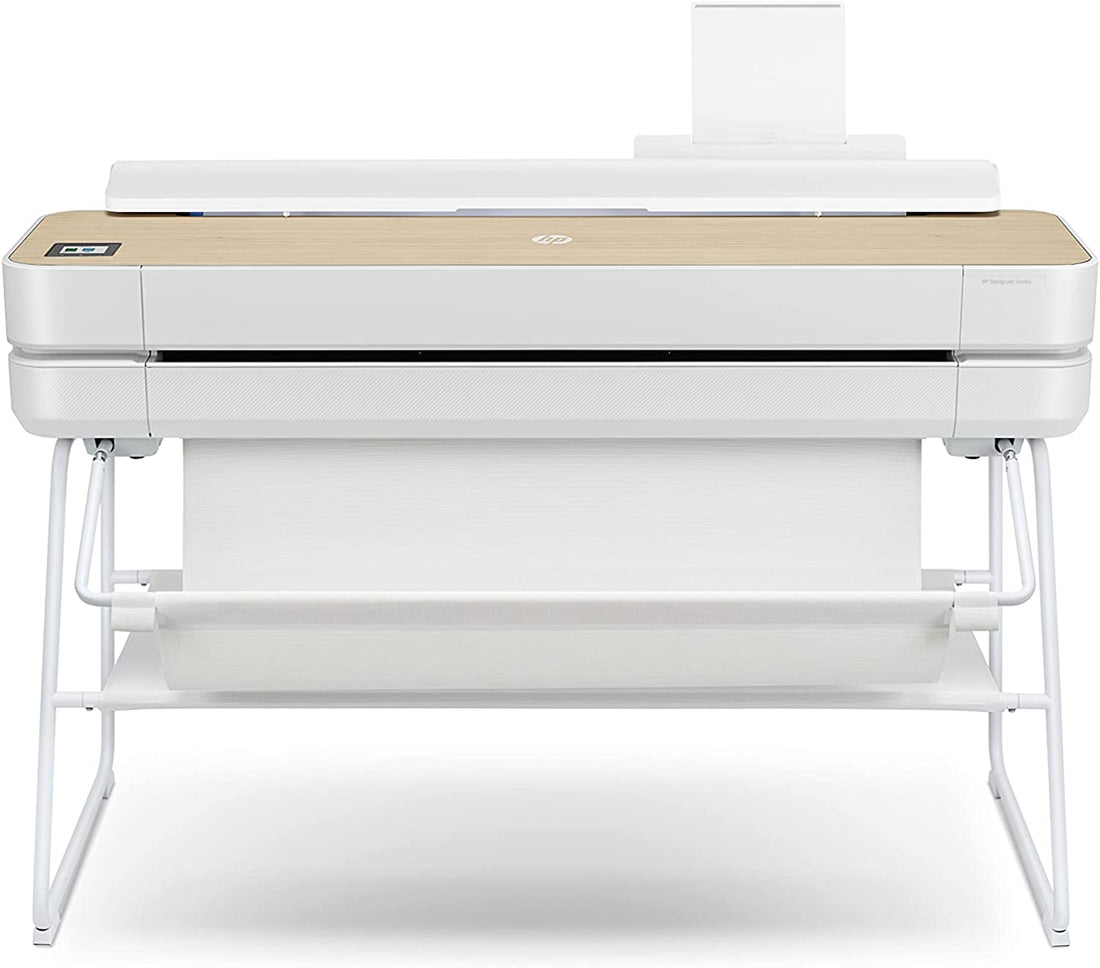

HP DesignJet Studio Wood 36" Large Format Printer 5HB14A

The HP DesignJet Studio Wood offers an enterprise-level printing solution that is affordable and easy to use. As a dye-based, 4 colour ink system, this is the ideal printer for architects, engineers and clients in the building/ construction industry who need to convey their ideas with bold images and sharp lines on regular media.

• Functions: Print
• Print speed: 25 sec/page on A1, 81 A1 prints per hour
• Print technology: HP Thermal Inkjet
• Application: Technical Plotter
• Connectivity: Ethernet, USB Direct, Wireless
• Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
• 1317 x 555 x 932 mm, 62 kg

Type	Large Format Printer	Size	36-in
Functions	Print	Connectivity	USB,Wi-Fi, Ethernet
Print technology	HP Thermal Inkjet	Ink type	Pigment/Dye combination
Suitable for	Plans, Point of sale, Technical	Wi-Fi	Yes
Stand included	Yes	Scanner included	No



DESCRIPTION

Featuring a modern office design that compliments its environment and performance to match. Print multi-size jobs easily with auto switching between roll and tray. Enjoy high-speed printing as fast as 25 sec per A1/D plot. 1 GB memory.

Fits the way you live

Design that performs, technology that stands out.

Easily set up your plotter using your smartphone.

First net carbon neutral HP DesignJet plotter.

Extreme simplicity

Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source.

Save time with the HP's easiest job submission —send multiple files in one click with HP Click software.

Print with confidence you'll get the results you expect with an intuitive driver and true print preview.

Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1/D plot.

Be more productive—save time from job prep to final print by printing your projects via HP Click.

Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.

Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.

SPECIFICATIONS

Functions

Print

Model size

914 mm

Print speed

25 sec/page on A1, 81 A1 prints per hour

Print technology

HP Thermal Inkjet

Printer drivers included

Raster driver for Windows and macOS

Print quality color (best)

Up to 2400 x 1200 optimized dpi

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Number of print cartridges

4 (C, M, Y, K)

Ink types

Dye-based (C, M, Y); pigment-based (K)

Line accuracy

±0.1%

Maximum optical density (black)

8 L* min/2.10 D

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n

Memory

1 GB

Internal Storage

None

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes standard (metric rolls)

279 to 610 mm

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)

Roll external diameter

100 mm

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Energy star certified

Yes

Operating temperature range

5 to 40ºC

Minimum dimensions (W x D x H)

1317 x 555 x 932 mm

Weight

41.7 kg

Package dimensions (W x D x H)

1470 x 575 x 646 mm

Package weight

62 kg

What's in the box

HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Warranty

One-year limited hardware warranty
