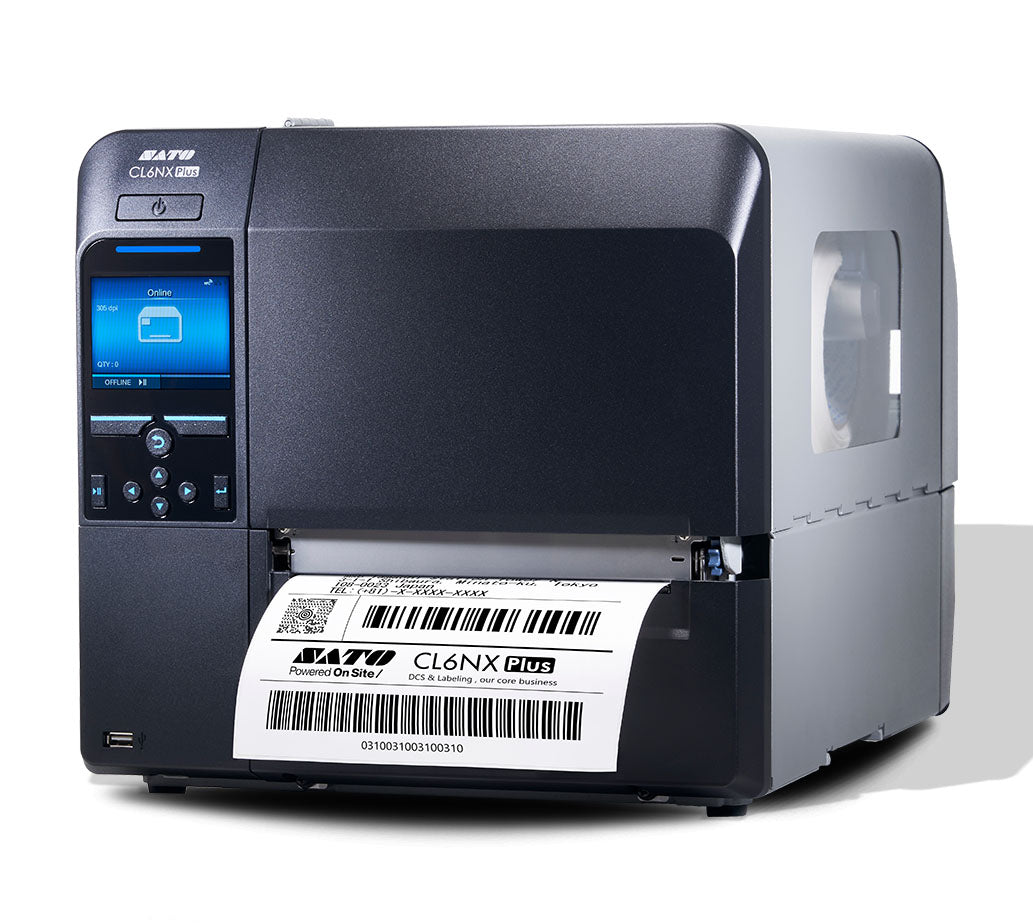

SATO CL6NX Plus Desktop Industrial Direct Thermal Label Printer 203dpi STD + Combo

• Sato CL6NX Plus Desktop Industrial Label Printer
• Direct Thermal / Thermal Transfer
• Continuous, Tear-off, Cutter,
• Dispenser, Linerless
• Print Resolution: 8 dots/mm (203 dpi)
• Max. Print Speed: 10 ips (254 mm/sec)
• Max Width, mm (inch):
• Standard 152 mm (5.98")
• Extension 167.5 mm (6.60")
• Max Length, mm (inch): 2,500mm (98.42")
• USB, serial, parallel,
• Bluetooth, Ethernet interfaces
• Dual CPU & Dual OS:
• CPU1: 800MHz for Linux OS,
• CPU2: 800MHz for ITRON OS
• CPU1: 2GB ROM, 256MB RAM,
• CPU2: 4MB ROM, 64MB RAM

Flagship 6-inch industrial printer for the most demanding printing needs

Built for track and trace operations globally, the CL6NX Plus comes equipped with enhanced print accuracy, smart head functionality and RFID* capability to meet the requirements of mid-range to high-end label printing environments.

FEATURES

*NEW* Faster optimisation for RFID label encoding & printing
Supports UHF printing and encoding. New SATO RF Analyze function significantly speeds up initial setup for RFID labels.

Enhanced precision
High accuracy printing makes CL6NX Plus ideal for PCB labelling of electronic products that are getting ever smaller.

Easy set-up and maintenance
Tool-less parts replacement and new PurelineTM platen roller which gives operator visual indication of wear as a means of proactive maintenance. Smart print head enables tracking and monitoring of print head usage to ensure timely replacement.

Standalone printing
Using Application-enabled Printing (AEP) within printer, operator is able to connect printer with peripheral devices such as barcode scanner, keypad, etc. for PC-less printing which saves cost and space.

Easy barcode check
Install stand-kit and certified scanner (sold separately) to check 1D & 2D codes when each label is printed. Printer prints void mark on defective labels.

Dynamic integration
Multiple interfaces such as serial, parallel, LAN, USB and WLAN available. Competitive language emulations enable direct replacement of printers in legacy applications.

Sustainable innovation
Coreless ribbon uptake simplifies loading process, optional linerless kit eliminates waste associated with traditional label production.

Industrial durability
Die-cast aluminium frame, print and ribbon mechanism provide solid stability. Metal casing including front panel and side covers for protection against industrial environment.

Functional design
Bi-fold cover allows compact design and reduces workspace requirement. Snap-in print head, tool-less platen replacement minimise downtime and simplify maintenance.

Intuitive operation
LED indicator and color display alert operator to printer status. Guidance videos assist in error resolution and printer maintenance.

RFID *New*

• Enhance RFID applications - Print & encode UHF tags & labels.
• SATO RF Analyze (SRA) - Optimise antenna and inlay settings automatically for fast and stable encoding.
• Compatible with specialty RFID tags & labels - On-metal tags available.*

SATO Online Services (SOS)

Cloud-based IoT solution to keep your operations running & visible
By keeping constant watch on printer status, SOS notifies operator when an expendable part needs replacement and offers prompt and effective resolution to problems. SOS enables user to:

• Minimise downtime through proactive preventative maintenance
• Keep all printers visible to achieve efficiency with dashboard
• Use SOS to manage all IT assets on-site

 Application Enabled Printing (AEP)

Embedded within the printer, this next generation of smart printing allows CL6NX Plus printer to be used as a standalone printing solution, eliminating the need for costly computers. It enables user to connect printer with peripheral devices such as barcode scanner, keypad, etc for PC-less printing.

PRINTER OPTIONS

• Real-time clock (RTC)
• Cutter
• Dispenser
• Dispenser with rewinder
• WLAN
• UHF RFID Kit

APPLICATIONS

• Manufacturing - Parts & products labels, GHS labels, PCB & component labels
• Healthcare - GS1 labels, FDA labels, prescription labels, specimen labels, blood bag labels
• Food Service & Distribution - Product labels, ingredient labels, expiry labels,
• Transport & Logistics - Shipping labels, pallet labels, bin labels, rack labels
• Automotive - Parts & products labels, kanban labels
• Wholesale - Pallet label

SPECIFICATIONS

• Model: CL6NX Plus
• Printing Method - Direct Thermal / Thermal Transfer
• Print Mode: Continuous, Tear-off, Cutter, Dispenser, Linerless
• Print Resolution: 8 dots/mm (203 dpi) / 12 dots/mm (305 dpi)
• Max. Print Speed: 10 ips (254 mm/sec) / 8 ips (203 mm/sec)
• Max. Print Area:
  • Width, mm (inch) - Standard 152mm(5.98"), Extension 167.5mm(6.60") / Standard 165.33mm(6.51"), Extension 167.5mm(6.60")
  • Length, mm (inch) - 2500mm (98.42") / 1500mm (59.05")
• Processor: Dual CPU & Dual OS: CPU1: 800MHz for Linux OS, CPU2: 800MHz for ITRON OS
• Printer Memory: CPU1: 2GB ROM, 256MB RAM, CPU2: 4MB ROM, 64MB RAM
• Media Type:Roll or fan-fold die cut labels, Plain paper face stock, Synthetics and Continuous stock
• Media Thickness: 0.060 - 0.268mm (0.0024" - 0.011")
• Label Shape - Diameter: Maximum 265mm (10.43") / Core diameter: Ø76mm (3.0”), Ø101mm (4.0”)
• Label Shape - Wind Direction: Face In / Face Out. No Setting Change Required
