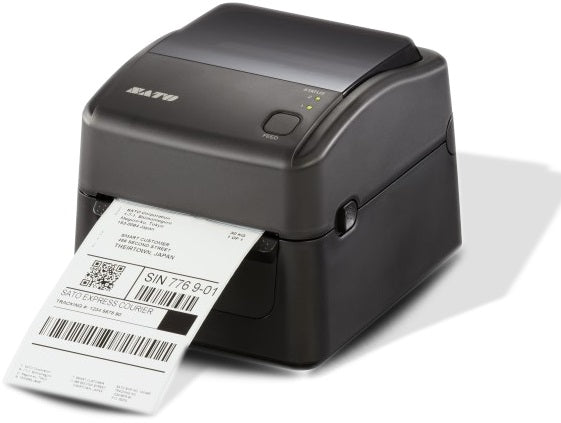

World standard 4-inch desktop printer built for multiple applications
The WS4 printer series is designed to be easy-to-use with flexible media capability and enhanced connectivity.
It is highly versatile and suitable for desktop label applications across various regional markets and vertical segments to maximise performance and return on investment.
PRODUCT HIGHLIGHTS
3-color status LED
WS4 has 3 color LED and 3 types of blink patterns to help operator easily identify printer status.
Easy maintenance
With lesser internal parts and clear label path, user can load ribbons and labels easily.
User can also replace print head and platen roller effortlessly without any tools for the direct thermal (DT) model and only minimal tools for the thermal transfer (TT) model.
Easy firmware download
With the availability of USB host interface, firmware updates are simple and fuss-free.
Flexible label and ribbon support
WS4 supports both 1” and 1.5” label core and 1” and 0.5” ribbon core.
I-mark sensor is also horizontally adjustable
Large ribbon capacity of 300m
The TT model can hold a maximum of 300m ribbon thus reducing user's total cost of ownership and helps user save time on loading ribbons
Enhanced connectivity
WS4 provides numerous connectivity options including serial port (RS232C), LAN and USB.
It also provides options to support Bluetooth for convenient wireless interface via smart devices.
OPTIONS
Cutter, Bluetooth, Dispenser, External Unwinder, Real-Time Clock
APPLICATIONS
Manufacturing
Parts & products labels
Retail
Distribution labels, price tags, shelf labels, markdown labels
Healthcare
GS1 labels, FDA labels, prescription labels, wristbands, specimen labels
Food Service & Distribution
Product labels, ingredient labels, expiry labels,
Transport & Logistics
Shipping labels, pallet labels, bin labels, rack labels
Automotive
Parts & products labels
Government
Visitor labels, asset management labels, document management labels
Hospitality
Food rotation labels, asset management labels
Education & Libraries
Asset management labels
Aerospace
Boarding passes, luggage tags, parts & products labels,
Wholesale
Shipping labels, pallet labels, putaway labels
Travel & Leisure
Tickets, wristbands
Law Enforcement
Asset management labels for vehicle, weapons, documents
Banking & Finance
Document management labels, visitor labels
Legal
Document management labels
Blood & Pathology
Specimen labels
FEATURES
User-Friendly Operation and Serviceability
Printing Resolution of 203 dpi
Print Speed of 152mm per second
Direct Thermal
Standard interfaces USB + Ethernet + Serial / RS232
Optional Wifi Interface (Select from the dropdown list)
Emulations (SZPL®, SEPL®, SDPL®, SIPL®)
Label Roll Dimensions: Roll Maximum Outside Diameter: 127.0 mm (5.0”) & Core Diameter: 25.4 mm or 38.1 mm (1.0” / 1.5")
12 Month Warranty
WAERA3004
MEDIA
Type: Roll or Fan-fold Die Cut Labels, Plain Paper Face Stock, Synthetics and Continuous Stock, Ticket
Thickness: 0.002” – 0.007” (0.06 mm – 0.19 mm)
Media Width: 0.88" (22.4 mm) to 4.53" (115.0 mm)
Maximum Print Width: 104mm (4.09")
Maximum Print Length: 999mm (39.33")
Wind Direction: Face-out / Face-in, No Setting Change Required
Sensor Type: Adjustable I-Mark Sensor (Reflective), Label Gap Sensor (Transmissive), Label Taken Sensor (Dispenser Option)
MEDIA LENGTH
Continuous
TT/DT: 0.31" (10.0 mm) to 39.21" (996.0 mm)
Tear-Off
TT/DT: 0.31" (25.4 mm) to 39.21" (996.0 mm)
DT Mode on TT Model: 1.18" (30.0 mm) to 39.21" (996.0 mm)
Cutter
TT/DT: 0.76" (25.4 mm) to 39.09" (993.0 mm)
DT Mode on TT Model: 1.37" (35.0 mm) to 39.09" (993.0 mm)
Dispenser
TT/DT: 0.92" (25.4 mm) to 5.92" (150.4 mm)
DT Mode on TT Model: 1.37" (35.0 mm) to 5.92" (150.4 mm
RIBBON (THERMAL TRANSFER MODEL)
Length Maximum: 984.2 ft (300m) Center Justified
Core Diameter: 0.5" (12.7 mm) for 100m (328.0 ft) / 1.0" (25.4 mm) for 300m (984.2 ft)
