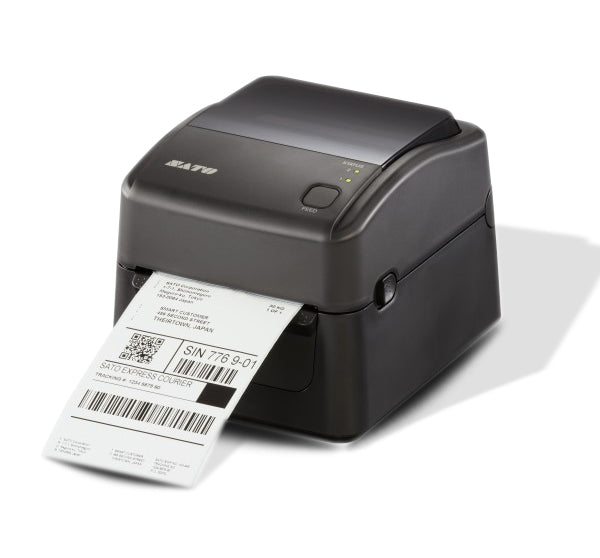

SATO WS4 Direct Transfer Label Printer 4-Inch 305dpi WS412 DT - equivalent to Zebra GX430T

• Sato WS412DT Compact/Desktop Label Printer
• Direct Thermal
• Continuous, Tear-off, Dispenser, Cutter
• Print Resolution: 300 dpi (12 dots/mm)
• Max. Print Speed: 4ips (101.6mm/sec)
• Max. Print Width: 104mm (4.09”)
• Max. Print Length: 999mm (39.33”)
• CPU: 32Bit RISC CPU(180MHz)
• Printer Memory: 16MB ROM, 32MB RAM
• Width: 183.8mm (7.24”)
• Depth: 225.9mm (8.89”)
• Height: 166.0mm (6.54”)
• Weight: 1.74kg (3.8lbs)

World standard 4-inch desktop printer built for multiple applications

The WS4 printer series is designed to be easy-to-use with flexible media capability and enhanced connectivity.

It is highly versatile and suitable for desktop label applications across various regional markets and vertical segments to maximise performance and return on investment.

PRODUCT HIGHLIGHTS

3-color status LED
WS4 has 3 color LED and 3 types of blink patterns to help operator easily identify printer status.

Easy maintenance
With lesser internal parts and clear label path, user can load ribbons and labels easily.
User can also replace print head and platen roller effortlessly without any tools for the direct thermal (DT) model and only minimal tools for the thermal transfer (TT) model.

Easy firmware download
With the availability of USB host interface, firmware updates are simple and fuss-free.

Flexible label and ribbon support
WS4 supports both 1” and 1.5” label core and 1” and 0.5” ribbon core.
I-mark sensor is also horizontally adjustable

Large ribbon capacity of 300m
The TT model can hold a maximum of 300m ribbon thus reducing user's total cost of ownership and helps user save time on loading ribbons

Enhanced connectivity
WS4 provides numerous connectivity options including serial port (RS232C), LAN and USB.
It also provides options to support Bluetooth for convenient wireless interface via smart devices.

OPTIONS
Cutter, Bluetooth, Dispenser, External Unwinder, Real-Time Clock

APPLICATIONS

Manufacturing
Parts & products labels

Retail
Distribution labels, price tags, shelf labels, markdown labels

Healthcare
GS1 labels, FDA labels, prescription labels, wristbands, specimen labels

Food Service & Distribution
Product labels, ingredient labels, expiry labels,

Transport & Logistics
Shipping labels, pallet labels, bin labels, rack labels

Automotive
Parts & products labels

Government
Visitor labels, asset management labels, document management labels

Hospitality
Food rotation labels, asset management labels

Education & Libraries
Asset management labels

Aerospace
Boarding passes, luggage tags, parts & products labels,

Wholesale
Shipping labels, pallet labels, putaway labels

Travel & Leisure
Tickets, wristbands

Law Enforcement
Asset management labels for vehicle, weapons, documents

Banking & Finance
Document management labels, visitor labels

Legal
Document management labels

Blood & Pathology
Specimen labels

FEATURES

User-Friendly operation and serviceability
Printing Resolution of 300 dpi (for small barcodes, jewellery labels and high resolution shipping labels)
Print Speed of 152mm per second
3 color LED and 3 types of blink patterns to help identify printer status
Direct Thermal printing (No ribbons required)
Standard interfaces USB + Ethernet + Serial / RS232
Emulations (SZPL®, SEPL®, SDPL®, SIPL®)
Label Roll Dimensions: Roll Maximum Outside Diameter: 127.0 mm (5.0”) & Core Diameter: 25.4 mm or  38.1 mm (1.0” / 1.5")
12 Month Warranty
