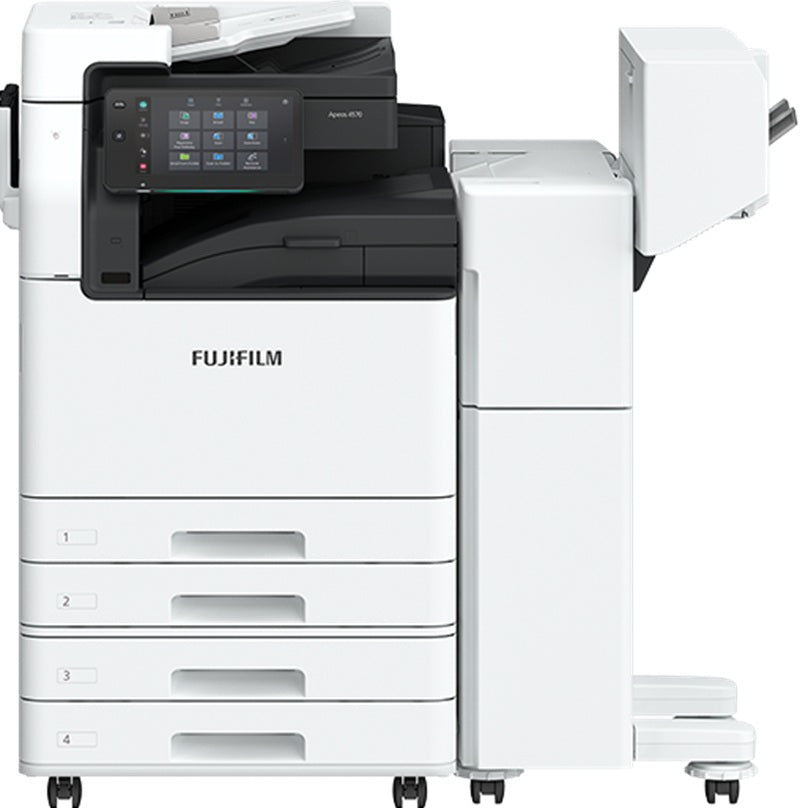

Second-Hand Fujifilm Apeos 4570 Photocopier with Booklet Finisher

A robust and efficient A3 monochrome multifunction system, the Fujifilm Apeos 4570 delivers up to 45 ppm copy/print and 160 ppm single‑pass duplex scanning for high‑volume environments. Designed to handle a wide range of workflows, it supports media sizes from A3 (12 × 19″ / SRA3) down to A5 or even smaller custom originals

• Condition: Second Hand
• Copy/Print: 45 ppm
• Scan*2: Colour/Monochrome 160ppm
• Fax: Super G3 FAX
• Printing Resolution: 1,200 x 2,400 dpi
• Control Panel: 10.1" Tilted Colour Touchscreen
• Cloud enabled
• Mobile enabled
• Scan business cards
• Security
• LED reminder to collect printed document / originals
• Multi-feed detection

DESCRIPTION

• A robust and efficient A3 monochrome multifunction system, the Fujifilm Apeos 4570 delivers up to 45 ppm copy/print and 160 ppm single‑pass duplex scanning for high‑volume environments. Designed to handle a wide range of workflows, it supports media sizes from A3 (12 × 19″ / SRA3) down to A5 or even smaller custom originals

Overview

• Copy/Print: 5570 55 ppm*1, 4570 45 ppm*1
• Scan*2: Colour/Monochrome 160ppm*3
• Fax: Super G3 FAX
• Printing Resolution: 1,200 x 2,400 dpi*4
• Control Panel: 10.1" Tilted Colour Touchscreen

Cloud enabled

Mobile enabled

Scan business cards

Security

LED reminder to collect printed document / originals

Multi-feed detection

*1: A4 LEF.

*2: Optional.

*3: When both sides of a sheet are scanned through a single pass using the Duplex Automatic Document Feeder.

*4: Print Function.

Minimise wait time for greater productivity

First copy output time in 3.6*1 seconds

Machine warm time and recovery time in less than 30 seconds*2 and 11 seconds respectively

Smart WelcomEyes detects a user and automatically "wakes" the machine up from sleep mode

*1: A4 LEF.

*2: Embedded Plug-ins / Custom Services: When enabled.

• Reduce unintentional information security risk with sensory alerts
• Reminds user of uncollected original or printed document on the trays
• Prevents uncollected documents left on the Center Tray or Feeder
• Center Tray light further notifies when a fax is received on the Side Tray
• Sound notification for originals left on the document glass

Effortless operations with retractable tray mechanism

• One soft push for closing
• Retracts softly and gently
• Drawing out is effortless
• Quick information extraction for high volume workflows
• Up to 160 ppm* can be read at high speed in Scan
• One pass DADF will not damage the original document
• Equipped with multifeed detection
• Up to 130 sheets can be loaded

* 1 pass, 2 sided scanning, 200 dpi to folder.

Quick operations with direct DADF scanning for custom size documents

• Supports minimum size of 49 mm(W) x 85 mm(L)*
• Instantly scan without manual entry of each original size
• Automatically converts custom-size originals to standard size
• Multiple sheets of original can loaded and scanned together

SPECIFICATIONS

• Condition: Second Hand

- All New replaced Pickup rollers all 4

- New replaced bypass rollers

- Developers Tested

- Hard drive cleanup

- All old stored data wiped and cleaned

Note: Consumables as Toner etc. is not replaced

• Type Desktop / Console
• Memory capacity 4 GB (Max: 4 GB)
• Storage Device Capacity*1 128 GB
• Scan Resolution 600 x 600 dpi
• Printing Resolution 600 x 600 dpi (Text / Text-Photo / Photo / Map)
• Warm-up Time*2

[Embedded Plug-ins / Custom Services]

• When enabled: 30 seconds or less (23 degrees Celsius room temperature)
• When disabled: 24 seconds or less (23 degrees Celsius room temperature)

Recovery Time

• (Recovery Time from Sleep mode) 11 seconds or less (23 degrees Celsius room temperature)
• Original Size Maximum of A3, 11 x 17”, 297 x 432 mm for both Sheet and Book

Paper Size

• Max SRA3 (320 x 450 mm), 12 x 18” (305 x 457 mm), A3
• [12 x 19” (305 x 483 mm), 320 x 483 mm when using Bypass Tray]
• Min A5, Postcard (100 x 148 mm) [89 x 98 mm when using Bypass Tray]
• Image loss
• width*4 Lead edge 4.0 mm, Trail edge 2.0 mm, Right / Left edge 2.0 mm

Paper Weight*

• Paper Tray 52 to 300 gsm
• Bypass Tray 52 to 300 gsm
• First Copy Output Time 3.6 sec. (A4 LEF)
• Print Speed: 45ppm
• Output Tray Capacity*8 Upper Center: 250 sheets (A4 LEF), Lower Center: 250 sheets

(A4 LEF)

• Power Supply AC220-240 V +/- 10 %, 10 A, 50/60 Hz common

Maximum Power Consumption

• 2.2 kW (AC220 V +/- 10%), 2.4 kW (AC240 V +/- 10%)
• Sleep mode: 0.5 W (AC230 V), Ready mode: 82 W (AC230 V)

Dimensions

• W 620 x D 720 x H 858 mm - Standard 2 Tray model
• W 620 x D 720 x H 1,119 mm - with additional Stand (optional)
• W 620 x D 720 x H 1,119 mm - with additional Two Tray Module

(optional)

• W 620 x D 720 x H 1,119 mm - with additional Tandem Tray

module (optional or standard configuration)

Weight

• 91 kg - Standard 2 Tray model
• 109 kg - with additional Stand (optional)
• 118 kg - with additional Two Tray module (optional)
• 125 kg - with additional Tandem Tray module (optional or standard configuration)

Print Function

Item Description

• Type Built-in type
• Continuous Print Speed*1 Same as the Basic Specifications / Copy Function
• Printing Resolution Standard

[PCL Driver]

• Standard: 1,200 x 2,400 dpi, High Quality: 1,200 x 2,400 dpi,
• High Resolution: 1,200 x 1,200 dpi

Optional

[Adobe® PostScript® 3TM Driver]

• High Speed (Standard): 600 x 600 dpi, High Quality: 1,200 x
• 2,400 dpi, High Resolution: 1,200 x 1,200 dpi

Page Description Language

• Standard PCL5 / PCL6
• Optional Adobe® PostScript® 3TM

Supported Operating System

Standard [PCL Driver]

• Windows 11 (64 bit), Windows 10 (32 bit / 64 bit),
• Windows Server 2022 (64 bit), Windows Server 2019 (64 bit),
• Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit),
• Windows Server 2012 (64 bit)

[Mac OS X Driver]

macOS 13 / 12 / 11 / 10.15 / 10.14

Optional

[Adobe® PostScript® 3TM Driver]

• Windows 11 (64 bit), Windows 10 (32 bit / 64 bit),
• Windows Server 2022 (64 bit), Windows Server 2019 (64 bit),
• Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit),
• Windows Server 2012 (64 bit)
• macOS 13 / 12 / 11 / 10.15 / 10.14

Interface Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0

Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

*1: The speed may be reduced due to the image quality adjustment. The printing speed may be

reduced depending on the document.

*2: Please refer to our official website for the latest supported OS.

Scan Function (Optional)

Item Description

• Type Colour Scanner
• Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
• Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder
• Interface Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
• Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

Note: Installed for Model-CPS as standard.

Fax Function (Optional)

Item Description

• Original Size Max: A3, 11 x 17”, Long document (Longest 600 mm)
• Recording Paper Size Max: A3, 11 x 17”; Min: A5
• Transmission Time 2 seconds and more but fewer than 3 seconds*1
• Transmission Mode ITU-T G3
• Applicable Lines Telephone subscriber line, PBX, Fax communication (PSTN),
• Maximum 3 ports*2 (G3-3 ports)

*1: When A4 size document with approximately 700 characters is transmitted in standard

image-quality (8 x 3.85 lines/mm) and in high-speed mode (28.8 kbps or faster, JBIG). Only

indicates the time for transmitting the image information and does not include the communication

control time. The total communication time will vary depending on the contents of the document,

the type of machine receiving the fax, and line condition.

*2: No. of FAX lines is up to 3 ports. Port refers to number of channels for FAX.
