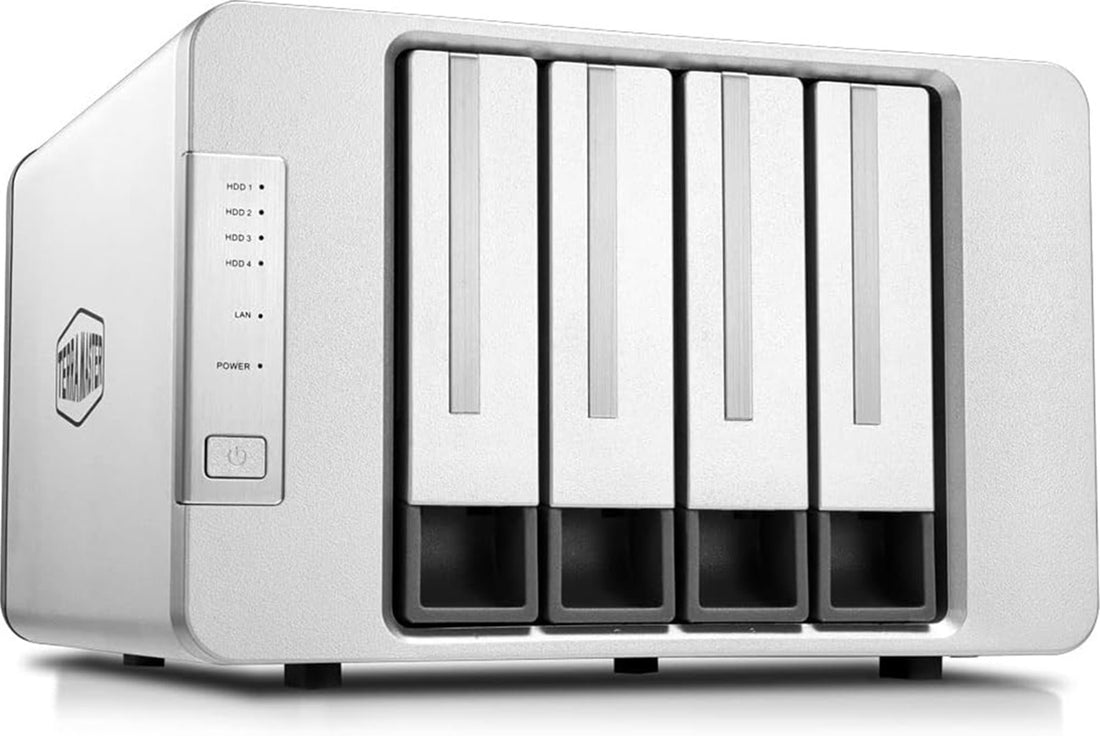

TerraMaster F4-423 4-Bay High Performance NAS For SMB

• Processor Model: Intel® Celeron® N5095
• Processor Architecture: X.86 64-bit
• Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
• CPU Single-Core Score: /
• Hardware Encryption Engine: √
• Hardware Transcoding Engine: H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
• Disk Slot Number: 4

Designed for High Performance Requirements

• The 4-Bay F4-423 is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load workflows, while multiple business-level backup solutions guarantee data safety and safeguard against the risk of data loss.

Excellent Performance

• This is a high-performance storage solution that provides a virtual storage and database service for SMB users. It uses an Intel Celeron N5095 quad-core processor with 2.0 GHz and a maximum turbo of 2.9 GHz. It is integrated with a GPU graphics card and AES NI hardware encryption. In addition, it is equipped with two 2.5 GbE interfaces and a 4 GB DDR4 dual-channel memory (expandable up to 32 GB). Moreover, this storage solution is internally installed with 2 M.2 NVMe slots, which accelerate SSD caching and double the storage efficiency of your RAID.

Faster Application Response

• The performance of the F4-423 surpasses that of previous generations, offering a 50% improvement that transforms the handling of high-load workflows. Moreover, is offers a 37% increase in file and phot retrieval speeds, a 35% increase in database response speeds, and a 40% increase in webpage PHP response speeds.

Higher Transmission Speed

• The F4-423 is configured with two 2.5 GbE interfaces, supporting a 2.5 GbE high-speed network bandwidth. The linear data transmission speed can reach 283 MB/s (Seagate IronWolf 18TB x 4, RAID 0). Link Aggregation offers a network bandwidth up to 5 Gb, thereby providing a cost-effective solution for multi-user and high-concurrent file access.

SPECIFICATIONS

Processor

• Processor Model: Intel® Celeron® N5095
• Processor Architecture: X.86 64-bit
• Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
• CPU Single-Core Score: /
• Hardware Encryption Engine: √
• Hardware Transcoding Engine: H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60

Memory

• System Memory: 4 GB DDR4 non-ECC SODIMM
• Pre-installed Memory module4 GB DDR4 non-ECC SODIMM (1x 4GB)
• Total Memory Slot Number: 2 (DDR4 SODIMM)
• Maximum Supported: Memory: 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM

Note: TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

• Disk Slot Number: 4

Compatible Drive types:

• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD
• Maximum Internal Raw Storage Capacity: 80TB (20TB x4) (Capacity may vary by RAID types)
• Drive Hot Swap: √

Note . Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly.

The maximum single volume size is not directly related to the maximum raw capacity.

File System

• Internal Drive: Btrfs, EXT4
• External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
• USB3.1 Host Port2(10Gbps)

Appearance

• Size (H*W*D): 227 x 225x 136 mm
• Packaging Size (H*W*D): 300 x 275 x 186  mm
• Weight: 3.6 kg

Others

• System Fan: 80 x 80 x 25mm  2PCS
• Fan Mode: Smart, High speed, Middle speed, Low speed
• Noise Level: 27.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)
• Power Supply: 90W
