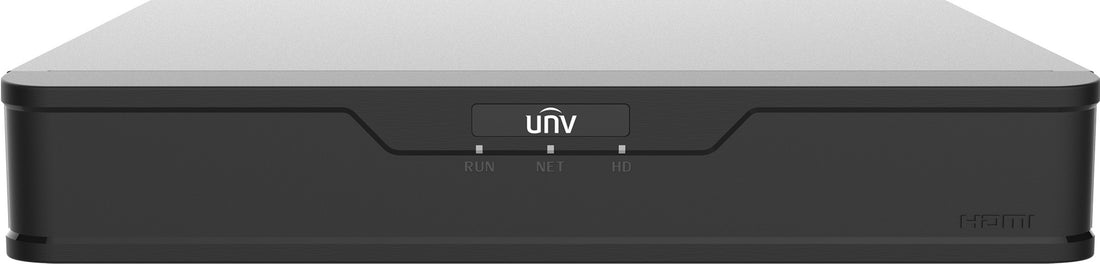

Uniview 1 HDD 4-ch 4 PoE 1U Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

• The Uniview UNVNVR301-04B-P4-IQ is a compact and reliable 4-channel network video recorder with 4 built-in PoE ports, supporting plug-and-play IP camera integration. It accommodates 1 HDD for local storage and offers intelligent video analysis, remote access, and real-time monitoring, making it ideal for small-scale security systems in homes, offices, or retail settings.

KEY FEATURES

• Support Ultra 265/H.265/H.264 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

SPECIFICATIONS

Decoding

• Decoding Format: Ultra 265,H.265,H.264
• Decoding Capability: Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30
• Smart On：2 x 4K@30, 4 x 4MP@30
• Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
• Audio CompressionG.711A, G.711U

Network

• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 80 Mbps
• Remote Users128
• ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
• Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

• IP Video Input: 4-ch
• RCA Audio Input: 1-ch

Video/Audio Output

• HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• RCA Audio Output1-ch
• Liveview Display: 1/4
• Corridor Mode Screen: 3/4

Two-way Audio

• Two-way Audio: 1-ch,RCA(Using the audio input and output)

Snapshot

• FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
• Num of Concurrent Playback: 16-ch

Smart

• VCA Detection by IPC: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring
• Smart by NVRFace Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
• VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch
• Smart by IPC: All channels (up to 8 images/s in total)Face Detection,Vehicle Detection,SIP,UMD,Traffic Monitoring
• Search by Image: Support
• SIP by NVR: 2-ch
• UMD by NVR: 4-ch

Alarm

• General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

• GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

• SATA: 1 SATA Interfaces
• Capacity: Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)

External Interface

• Network Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
• USBRear panel: 1 × USB2.0, 1 × USB3.0
• RS485: N/A
• RS232: N/A
• Alarm In: N/A
• Alarm Out: N/A
• Power Supply: DC 48 V/1.35 A
• Power Switch: N/A
• Power SwitchN/A
