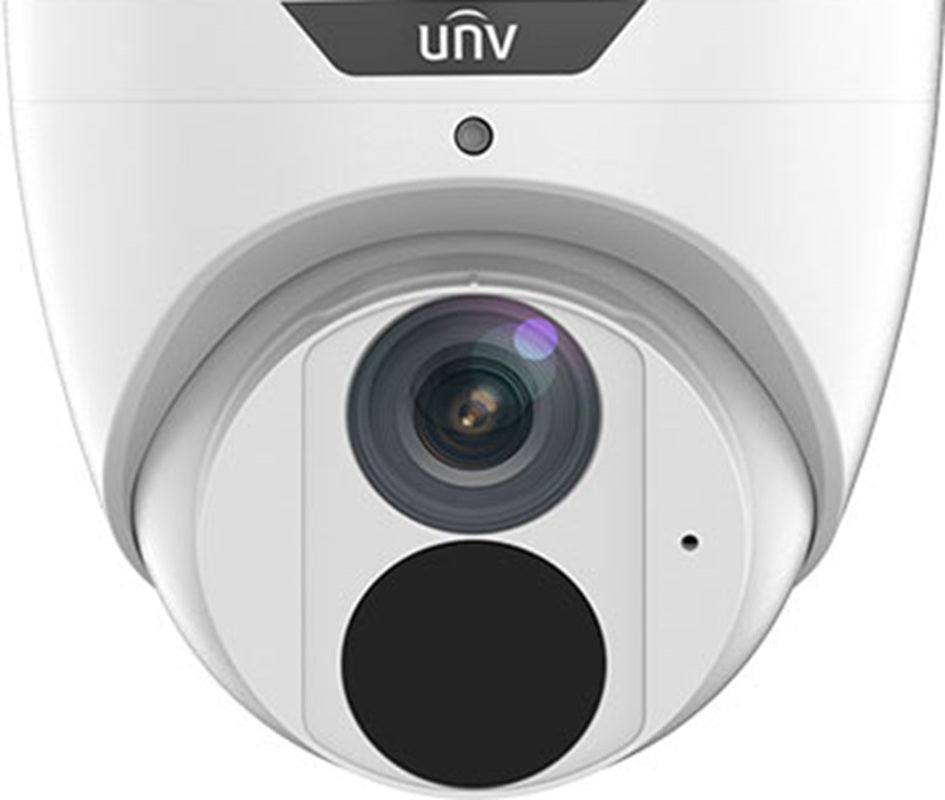

Uniview IPC3616LE-ADF28(40)KM-G 6MP HD IR Fixed Eyeball Network Camera

• Power – DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 6.0W
• Dimensions (Ø x H) – Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
• Weight – 0.42kg (0.93lb)
• Material – Metal
• Working Environment – -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment – -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection – 4KV
• Reset Button – N/A
• Ingress Protection – Ingression protection: IP67

The UNV IPC3616LE-ADF28(40)KM-G is a 6MP HD IR Fixed Eyeball Network Camera designed for reliable 24/7 surveillance. It features a high-resolution 6MP image sensor, smart IR for up to 30 meters of night vision, and a durable IP67-rated weatherproof housing. Ideal for both indoor and outdoor use, this camera delivers clear, detailed video and supports advanced video analytics for enhanced security monitoring.

• High quality image with 6MP, 1/2.7"CMOS sensor
• 6MP (3072*2048)@25fps; 5.3M (3072*1728)@30/25fps; 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

Specifications

Camera

• Sensor – 1/2.7″, 6.0 megapixel, progressive scan, CMOS
• Lens Type – 2.8mm and 4.0mm @1.6, Fixed-focal

DORI

• Angle Of View (H) – 2.8mm 112.9° ; 4.0mm 91.2°
• Angle Of View (V) – 2.8mm 59.1° ; 4.0mm 47.9°
• Angle Of View (O) – 2.8mm 121.2° ; 4.0mm 95.9°
• Minimum Illumination – Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR
• Adjustment angle – Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
• Shutter – Auto/Manual, 1 ~ 1/100000s
• Day/Night – IR-cut filter with auto switch (ICR)
• Digital noise reduction – 2D/3D DNR
• S/N – >56dB
• IR Range – Up to 30m (98ft) IR range
• Wavelength – 850nm
• IR On/Off Control – Auto/Manual
• Defog – Digital Defog
• WDR – 120dB

Video

• Video Compression – Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile – Baseline profile, Main profile, High profile

Frame Rate

• Main Stream: 6MP(3072*2048), Max 25fps; 5.3M (3072*1728), Max 30fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate – 128 Kbps~16 Mbps
• 9:16 Corridor Mode – Supported
• OSD – Up to 4 OSDs
• Privacy Mask – Up to 4 areas
• ROI – Up to 8 areas
• Motion Detection – Up to 4 areas


• White Balance – Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction – 2D/3D DNR
• Smart IR – Supported
• Flip – Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping – N/A
• HLC – Supported
• BLC – Supported

Smart

• Behavior Detection – Cross line, intrusion(based on human body detection),motion detection, tampering alarm, audio detection
• General Function – Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network

• Protocols – IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
• Compatible Integration – ONVIF (Profile S, Profile G, Profile T), API, SDK
• Client –EZStation, EZView, EZLive

Web Browser

• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Audio

• Audio Compression – G.711
• Suppression – Supported
• Sampling Rate – 8KHZ

Storage

• Edge Storage – Micro SD, up to 256 GB
• Network Storage – ANR,NAS(NFS)

Interface

• Network – 1 * RJ45 10M/100M Base-TX Ethernet
• Built-in Mic – Supported

Certification

• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

General

• Power – DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 6.0W
• Dimensions (Ø x H) – Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
• Weight – 0.42kg (0.93lb)
• Material – Metal
• Working Environment – -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment – -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection – 4KV
• Reset Button – N/A
• Ingress Protection – Ingression protection: IP67
