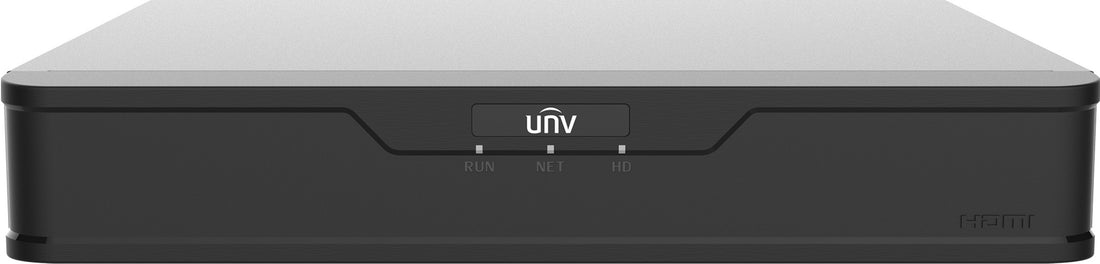

The Uniview UNVNVR501-08B-P8 is an 8-channel network video recorder with built-in 8-port PoE, offering easy plug-and-play installation for IP cameras. It supports up to 4K ultra HD recording and playback, with HDMI and VGA outputs for flexible display options. Ideal for small to medium surveillance systems, this NVR ensures reliable performance, remote access via mobile app, and seamless integration with Uniview cameras.
- Support Ultra 265/H.265/H.264 video formats
- 4/8‑channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
DESCRIPTION- The Uniview UNVNVR501-08B-P8 is an 8-channel network video recorder with built-in 8-port PoE, offering easy plug-and-play installation for IP cameras. It supports up to 4K ultra HD recording and playback, with HDMI and VGA outputs for flexible display options. Ideal for small to medium surveillance systems, this NVR ensures reliable performance, remote access via mobile app, and seamless integration with Uniview cameras.
FEATURES
- Support Ultra 265/H.265/H.264 video formats
- 4/8‑channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
SPECIFICATIONS
Decoding
- Decoding Format: Ultra 265, H.265, H.264
- Decoding Capability: NVR501‑04B‑P4:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30
- H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30 NVR501‑08B‑P8:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30
- H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30
- Audio Compression: G.711A, G.711U
Network Description
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 64Mbps
- Remote Users: 128
- ProtocolsTCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;IPv6
- Browser(Plugin): Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/Audio Input Description
- IPVideoInput: NVR501‑04B‑P4:4‑ch NVR501‑08B‑P8:8‑ch
- RCAAudioInput: 1‑ch
Video/Audio OutputDescription
- HDMI Output: HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output: VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- RCA Audio Output: 1‑ch
- Liveview Display: NVR501‑04B‑P4:1/4 NVR501‑08B‑P8:1/4/6/8/9
- Corridor ModeScreen: NVR501‑04B‑P4:3/4 NVR501‑08B‑P8:3/4/5/7/9
Two-way Audio Description
- Two-way Audio: 1‑ch, RCA(Using the audio input and output)
Snapshot Description
- FTP/Schedule/EventSnapshot: 4‑ch snapshot, up to D1 resolution
Recording Description
- Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Smart: Description
- VCA Detection by IPC: Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring)
- VCA Search: Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map
- SmartbyIPC: NVR501‑04B‑P4:Total 4‑ch(Face Detection, SIP, UMD) NVR501‑08B‑P8:Total 8‑ch(Face Detection, SIP, UMD)
Alarm Description
- General AlarmDefocus Detection; Scene Change Detection; Object Left Behind; Object Removed ;Auto Tracking ;Motion Detection; Tampering; Human Body Detection; Video Loss ;Alarm Input ;Audio Detection
- AlertAlarm: IP Conflict; Network Disconnected; Disk Offline ;Disk Abnormal; Illegal Access ;Hard Disk Space Low; Hard Disk Full ;Recording/Snapshot Abnormal
GUILanguageDescription
- GUILanguage38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk Description
- SATA: 1 SATA Interface
- Capacity: Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface Description
- Network Interface: 1 RJ45 10M/100M self‑adaptive Ethernet Interface
- USBRear panel: 1 x USB2.0, 1 x USB3.0
- RS485: N/A
- RS232: N/A
- Alarm In: N/A
- Alarm Out: N/A
- PowerSupply: NVR501‑04B‑P4:DC 48V/1.35A NVR501‑08B‑P8:DC 52V/1.8A
PoEDescription
- Interface: NVR501‑04B‑P4:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR501‑08B‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface
- MaxPower: NVR501‑04B‑P4:Max 30W for single port, Max 50W in total NVR501‑08B‑P8:Max 30W for single port, Max 75W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
Working Environment Description
- Working Temperature ‑10 °C ~ 55 °C (14 °F ~ 131 °F)
- Working Humidity ≤ 90% RH (non‑condensing)
- Power Consumption (without HDD): ≤ 10W
Dimensions Description
- Weight (without HDD): ≤ 1.1Kg (2.43lb)
- Dimensions: 260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification Description
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
- FCCPart 15 Subpart B
